Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door opening sill plates. Refer to DOOR SILL PLATE REPLACEMENT (DOOR) or DOOR SILL PLATE REPLACEMENT (SLIDING DOOR) .
  2. Pull the front door opening weatherstrip from the front door pinch-weld flange.
  3. Clean all adhesive from the pinch-weld flange.

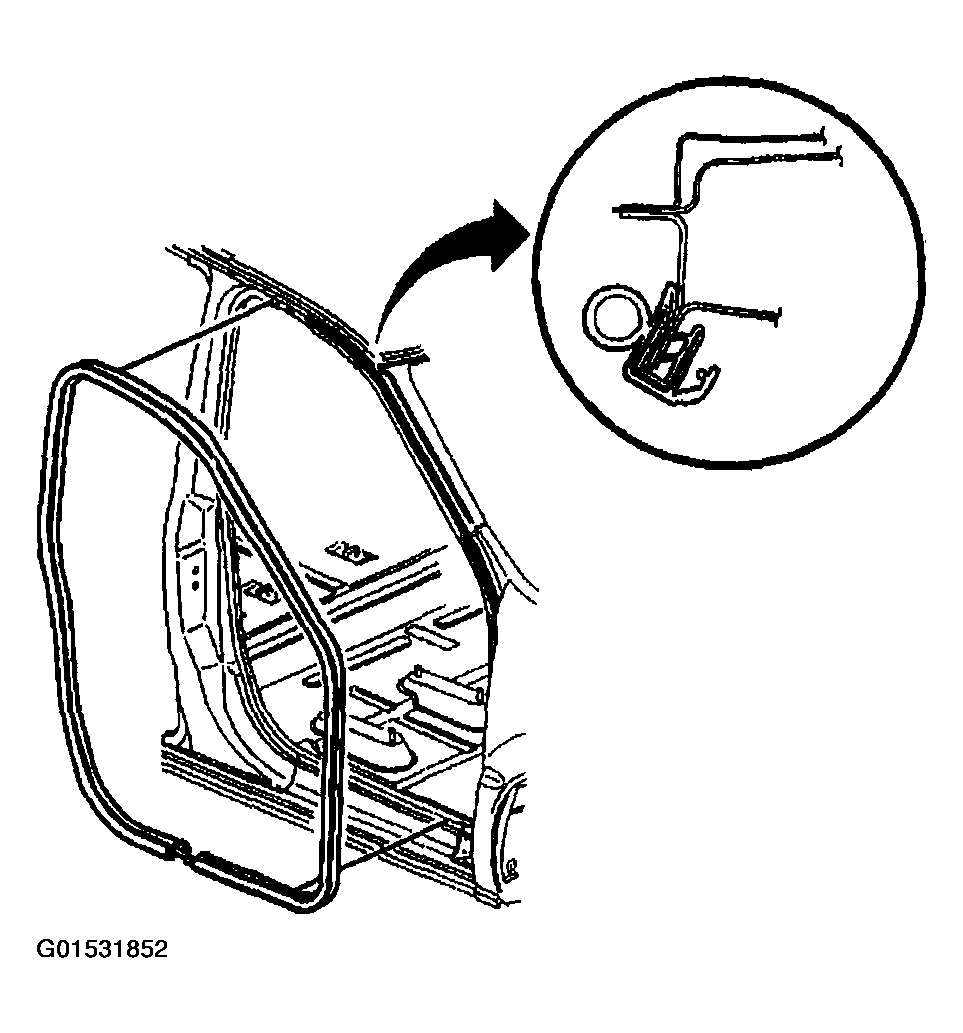

    Fig 1: Removing Front Door Opening Weatherstrip From Front Door Pinch-Weld Flange
    G01531852Courtesy of GENERAL MOTORS CORP.
