Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear quarter window. Refer to WINDOW REPLACEMENT -- REAR QUARTER in Body Rear End.
  2. Fully open the sliding rear door.
  3. Use a heat gun in order to heat the sliding door auxiliary weatherstrip. Keep the heat gun 150 mm (6 in) from the surface. Use a circular motion while applying heat for about 30 seconds.
  4. Use a flat-bladed tool in order to peel the sliding door auxiliary weatherstrip from the panel surface. DO NOT damage the paint.
  5. Use oil-free naphtha or alcohol in order to clean the body panel.

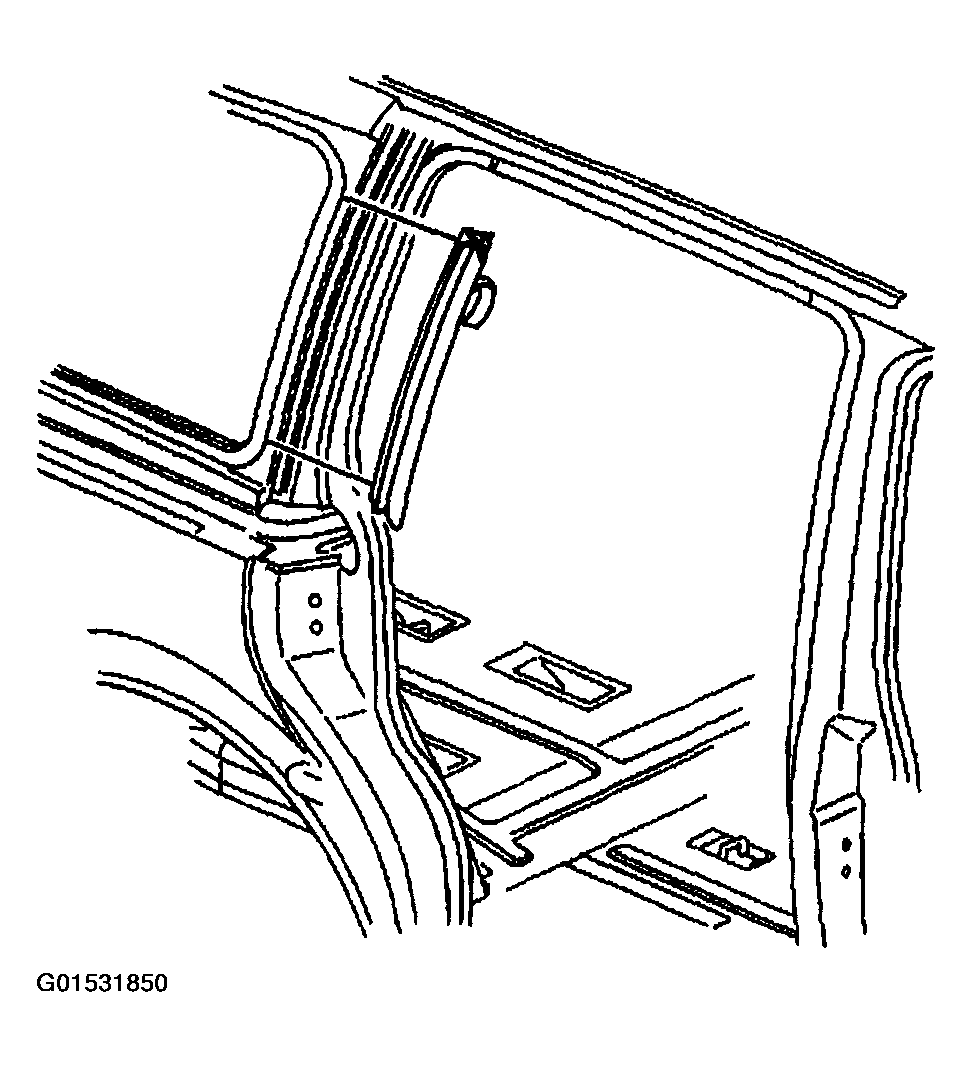

    Fig 1: Removing Sliding Door Auxiliary Weatherstrip
    G01531850Courtesy of GENERAL MOTORS CORP.
