Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Route the front door electrical harness through the front door water deflector.
  3. Remove the front door water deflector from the front inner door.

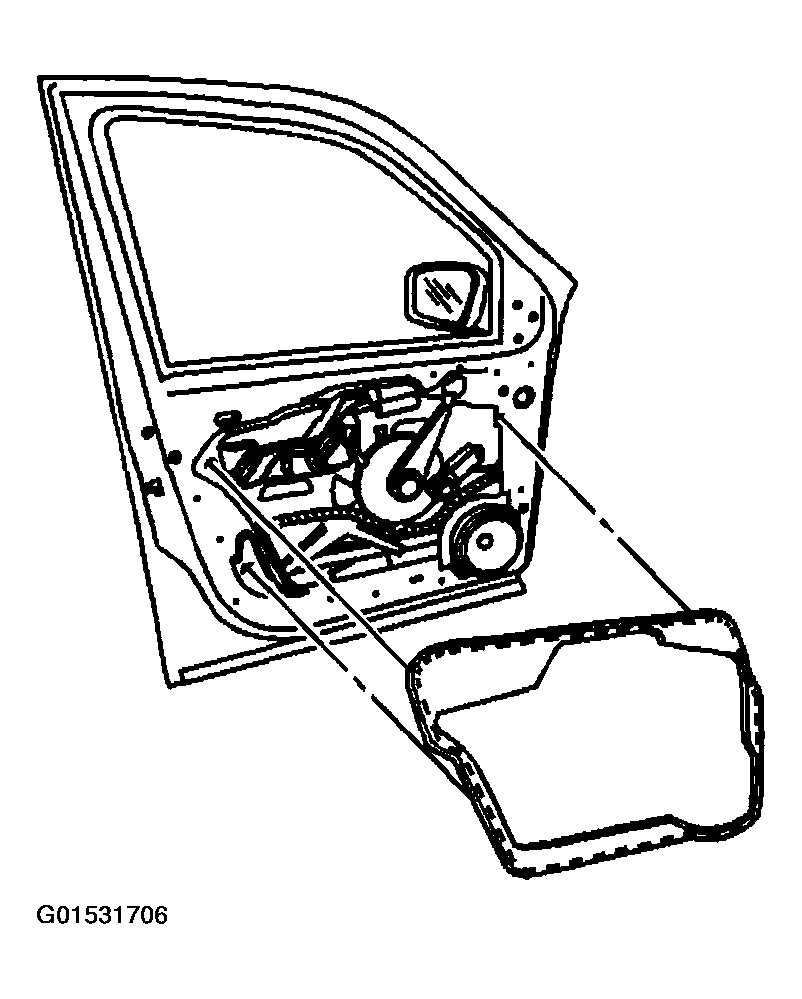

    Fig 1: Removing Front Door Water Deflector
    G01531706Courtesy of GENERAL MOTORS CORP.
