Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding door inner trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR  .
  2. Remove the sliding door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - SLIDING DOOR  .
  3. Remove the powersliding door unlatch release actuator electrical connector.
  4. Remove the powersliding door unlatch release actuator screws.
  5. Remove the powersliding door unlatch release actuator from the powersliding door.
  6. Unhook the powersliding door latch release actuator rod from the powersliding door latch release actuator.

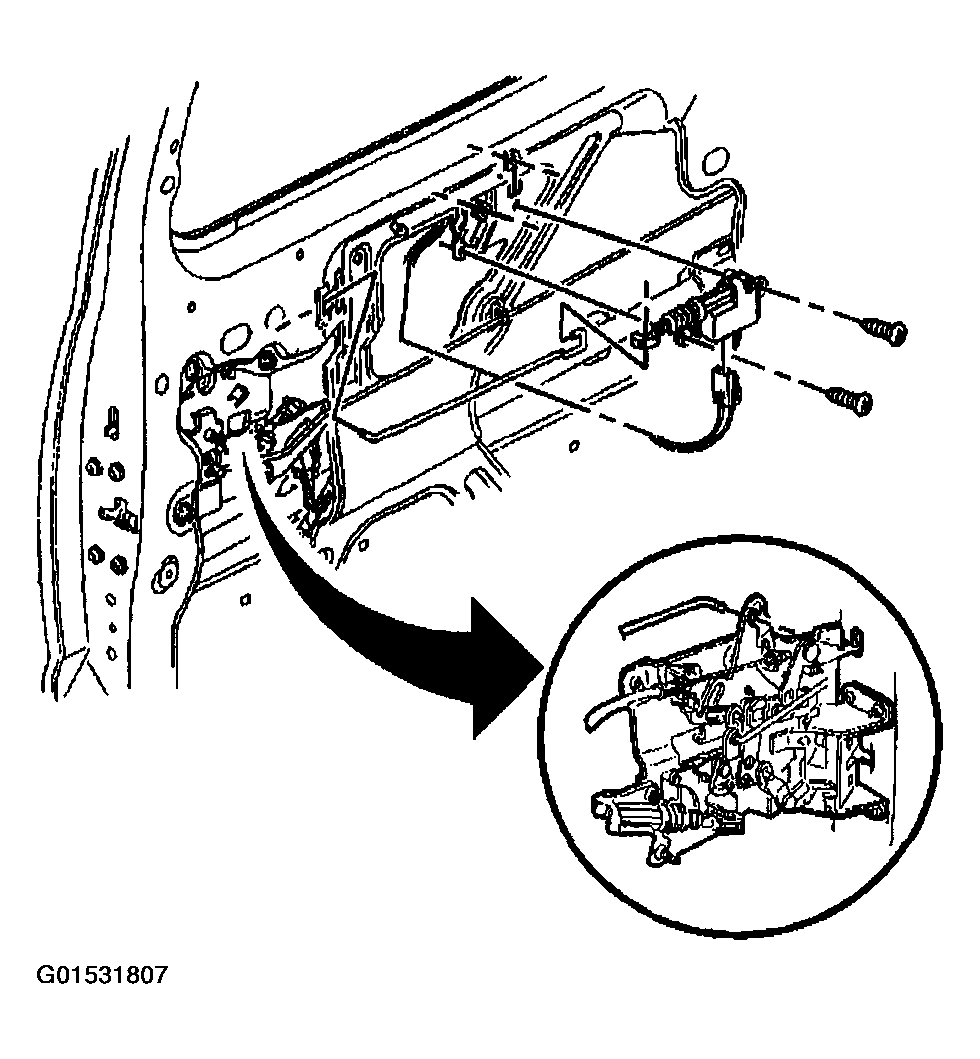

    Fig 1: Removing Powersliding Door Unlatch Release Actuator Screws
    G01531807Courtesy of GENERAL MOTORS CORP.
