Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding door garnish molding. Refer to GARNISH MOLDING REPLACEMENT - SLIDING DOOR in Interior Trim.
  2. Remove the sliding door inside handle. Refer to INSIDE HANDLE REPLACEMENT - SLIDING DOOR  .
  3. Use the J 38778.
  4. Remove the sliding door inner trim panel from the sliding door.

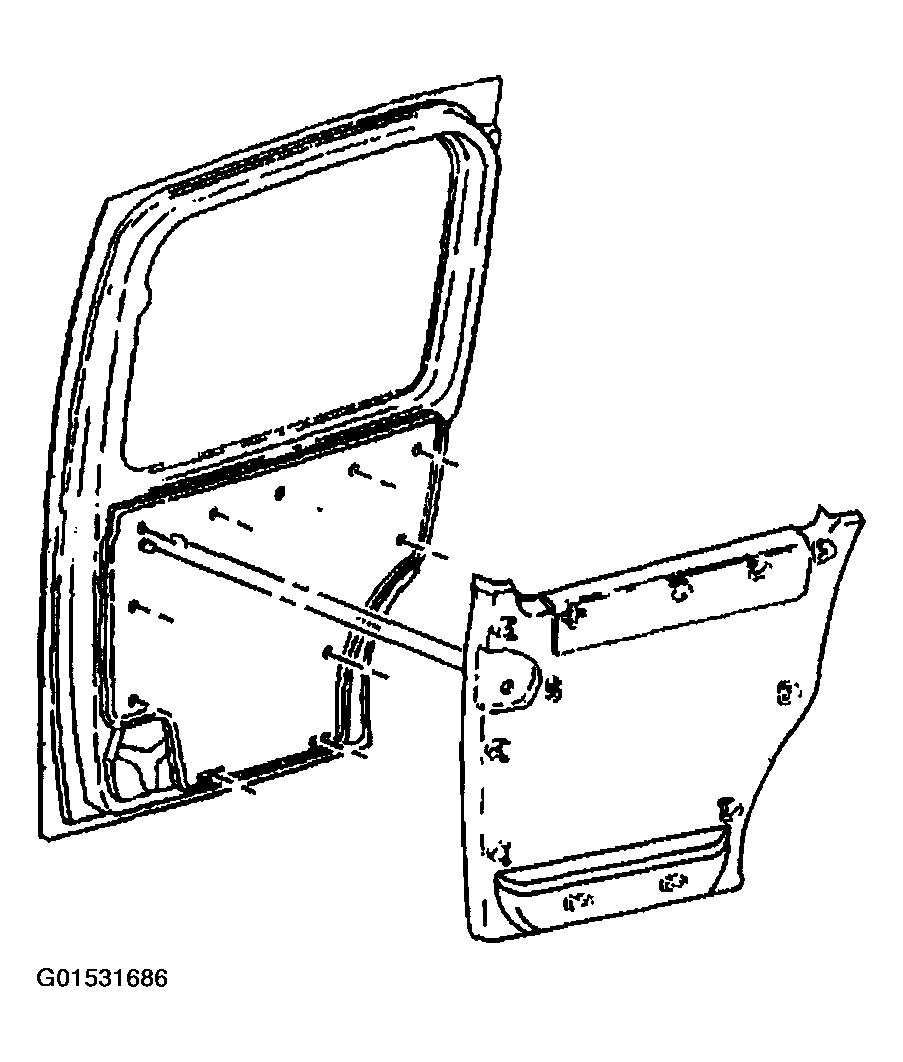

    Fig 1: Removing Sliding Door Inner Trim Panel
    G01531686Courtesy of GENERAL MOTORS CORP.
