Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding door striker screws.
  2. Remove the sliding door striker and the shim from the C-pillar.

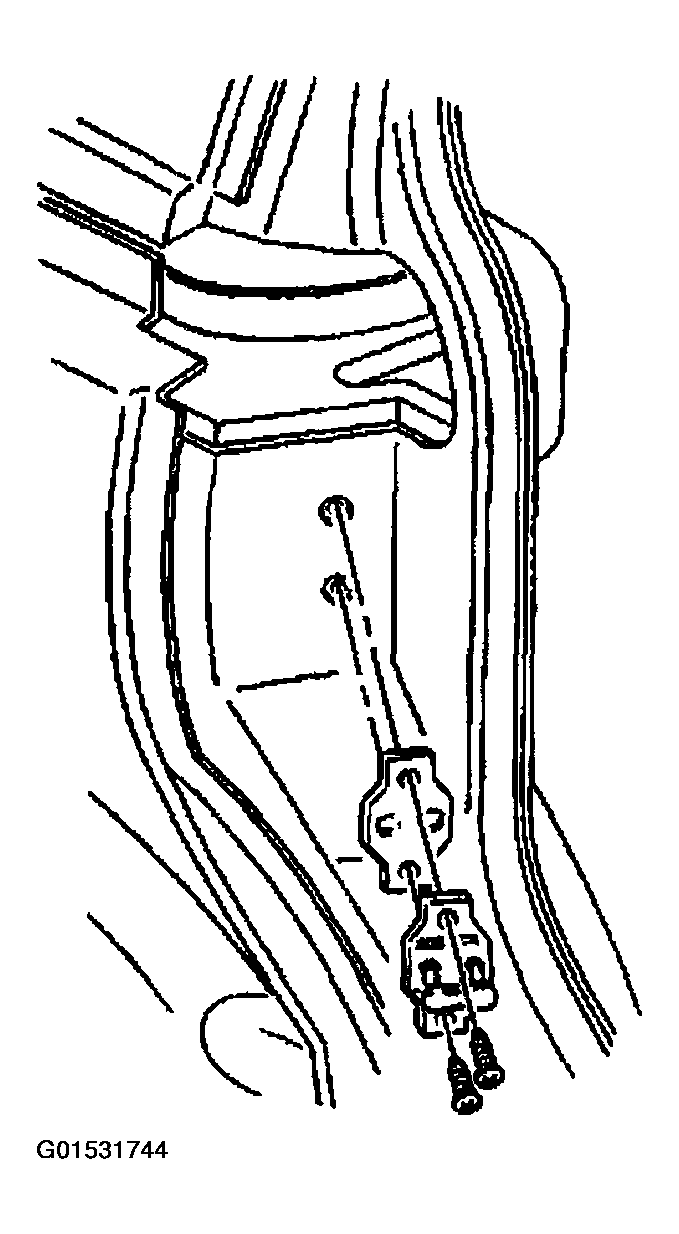

    Fig 1: Removing Sliding Door Striker And Shim
    G01531744Courtesy of GENERAL MOTORS CORP.
