Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Lower the front door window.
  3. Remove the front door inner belt window sealing strip by lifting off the pinch-weld flange.

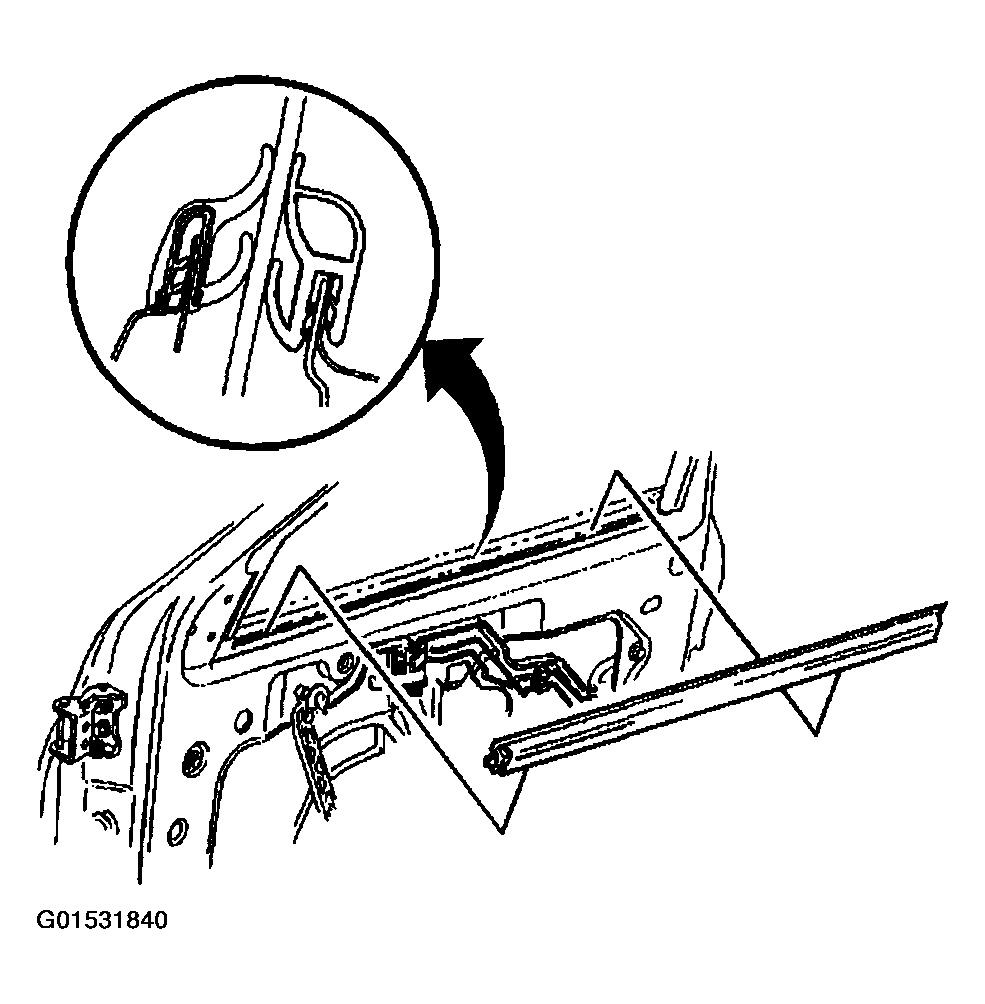

    Fig 1: Removing Front Door Inner Belt Window Sealing Strip
    G01531840Courtesy of GENERAL MOTORS CORP.
