Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the front door.
  2. Use J 38778  to remove the bottom auxiliary weatherstrip from the front door.

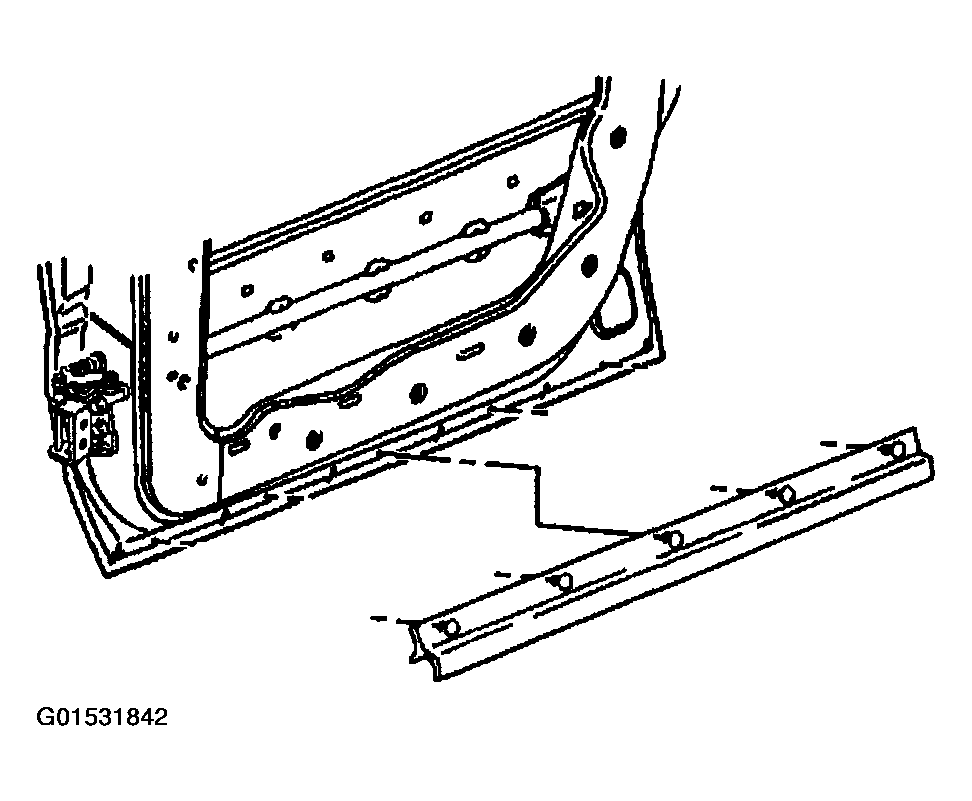

    Fig 1: Removing Bottom Auxiliary Weatherstrip
    G01531842Courtesy of GENERAL MOTORS CORP.
