Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the sliding door upper roller bracket to the front edge of the upper track.
  2. Align the sliding door upper roller bracket to the grease pencil marks.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the sliding door upper roller bracket bolts.

    Tighten

    Tighten the sliding door upper roller bracket bolts to 10 N.m (89 lb in).

  4. Remove the support from the sliding door.
  5. Install the headliner trim finish molding. Refer to HEADLINING TRIM FINISH MOLDING REPLACEMENT in Interior Trim.
  6. Install the sliding door garnish molding. Refer to GARNISH MOLDING REPLACEMENT - SLIDING DOOR in Interior Trim.

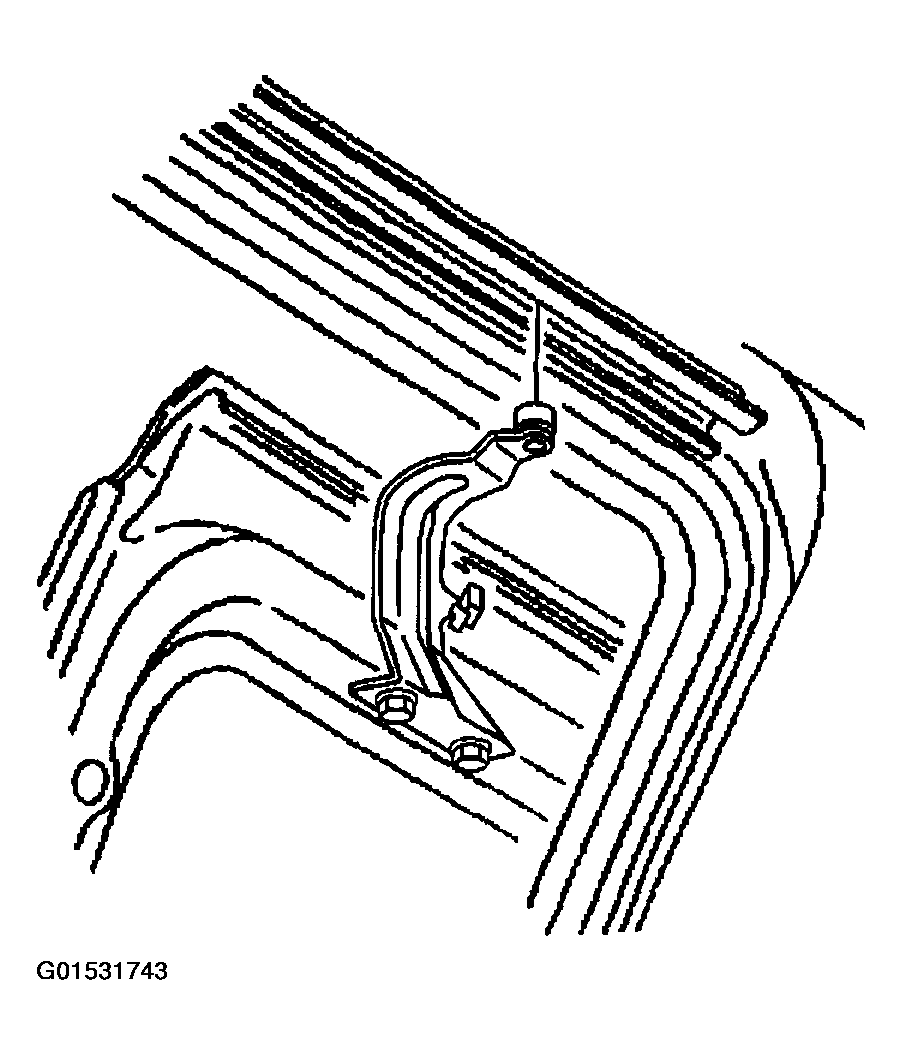

    Fig 1: Installing Sliding Door Upper Roller Bracket
    G01531743Courtesy of GENERAL MOTORS CORP.
