Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front edges of the sliding door inner trim panel in order to gain access to the sliding door lower roller bracket bolts.
  2. Mark the location of the sliding door lower roller bracket to the sliding door with a grease pencil.
  3. Support the sliding door.
  4. Remove the sliding door catch with the reinforcement channel bolt at the sliding door lower track.

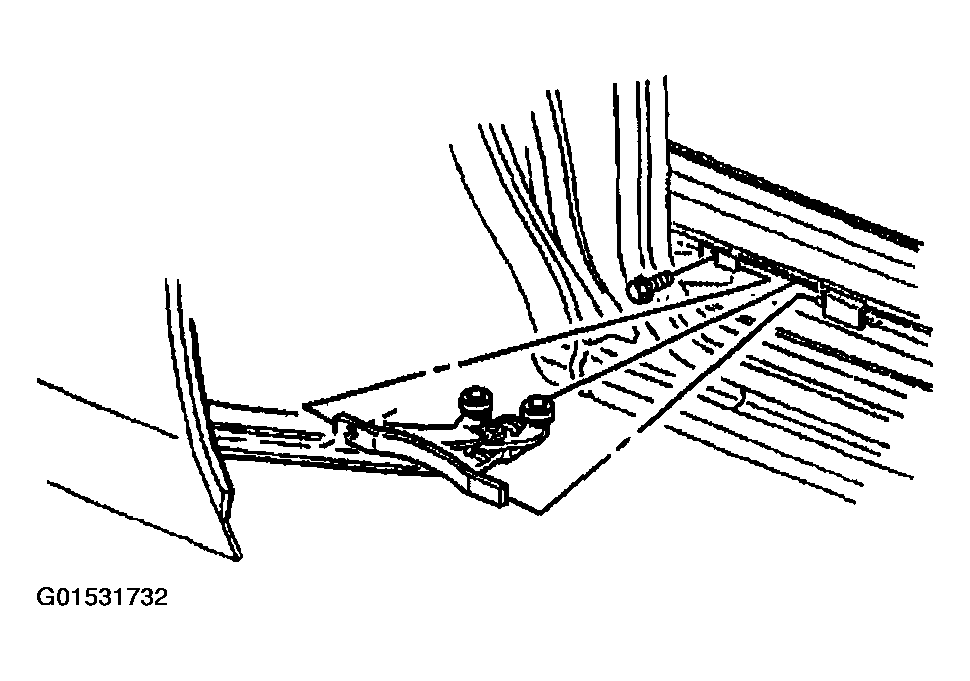

    Fig 1: Removing Sliding Door Catch With Reinforcement Channel
    G01531732Courtesy of GENERAL MOTORS CORP.
  5. Remove the sliding door lower roller bracket bolts.
  6. Remove the sliding door lower roller bracket from the lower track.

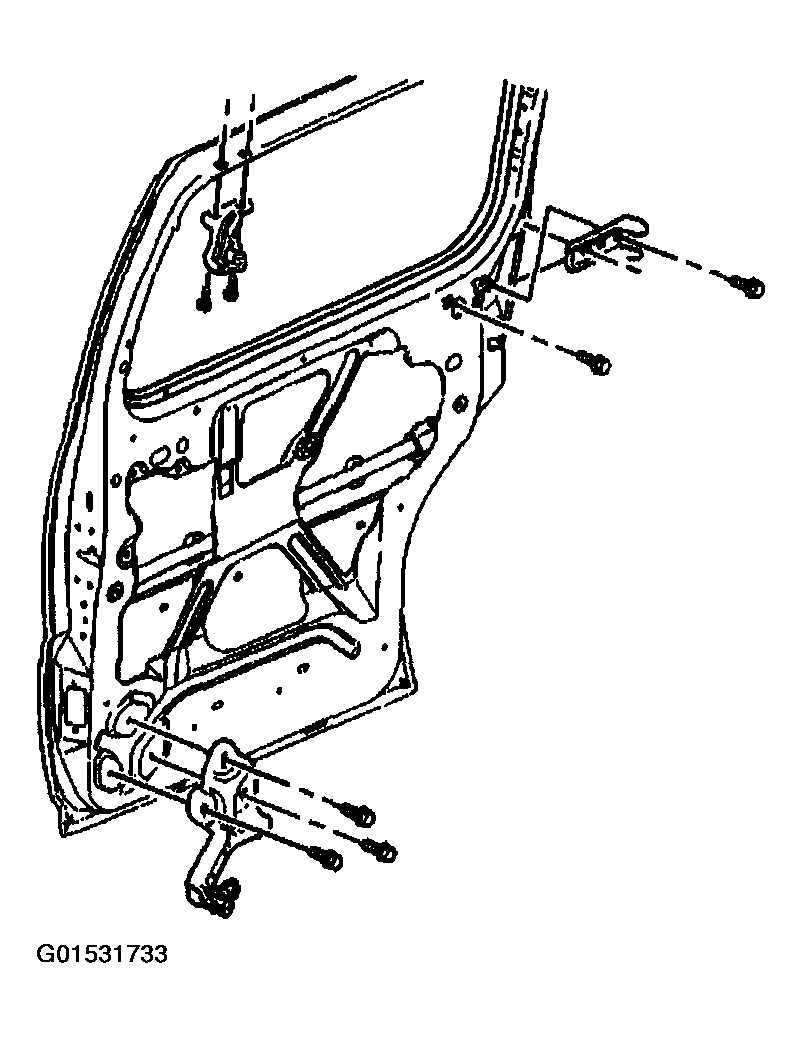

    Fig 2: Removing Sliding Door Lower Roller Bracket
    G01531733Courtesy of GENERAL MOTORS CORP.
