Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the following procedure in order to remove the power mirror switch.
    1. Use a flat-bladed tool at the rear of the switch mounting plate in order to release the clip.
    2. Lift up in order to unsnap the switch mounting plate from the front door trim panel.
  2. Disconnect the electrical connectors.

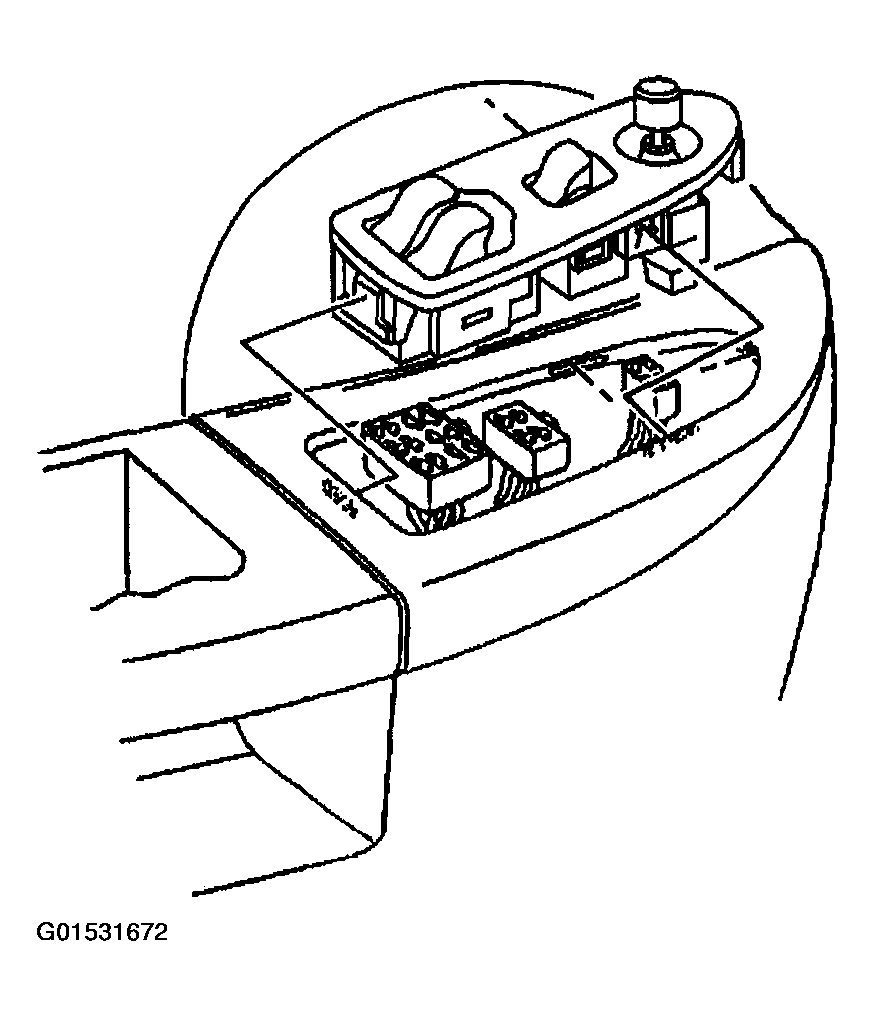

    Fig 1: Removing Power Mirror Switch
    G01531672Courtesy of GENERAL MOTORS CORP.
  3. Unsnap the power mirror switch from the switch mounting plate.

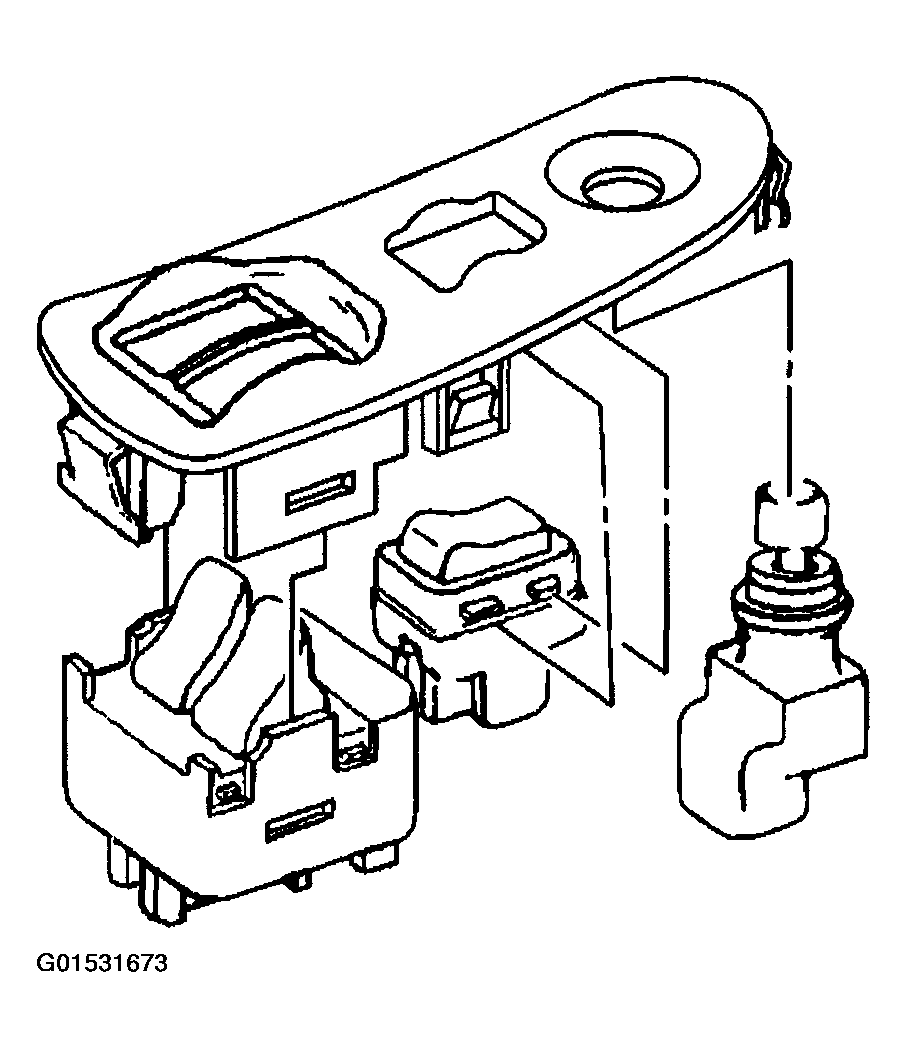

    Fig 2: Unsnapping Power Mirror Switch From Switch Mounting Plate
    G01531673Courtesy of GENERAL MOTORS CORP.
