Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a flat-bladed tool at the rear of the switch mounting plate in order to release the clip.
  2. Lift up in order to unsnap the switch mounting plate from the front door trim panel.
  3. Disconnect the electrical connectors.

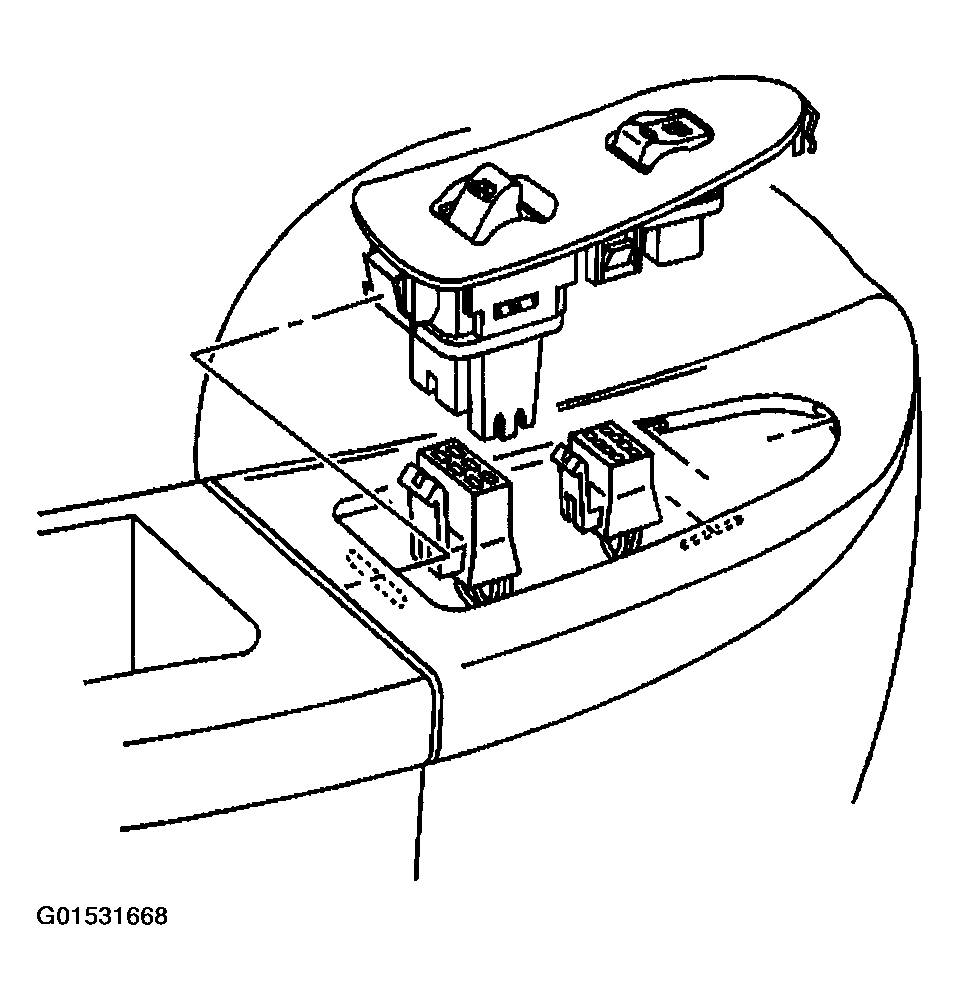

    Fig 1: Removing Power Door Lock Switch - Front Right
    G01531668Courtesy of GENERAL MOTORS CORP.
  4. Unsnap the power lock switch from the switch mounting plate.

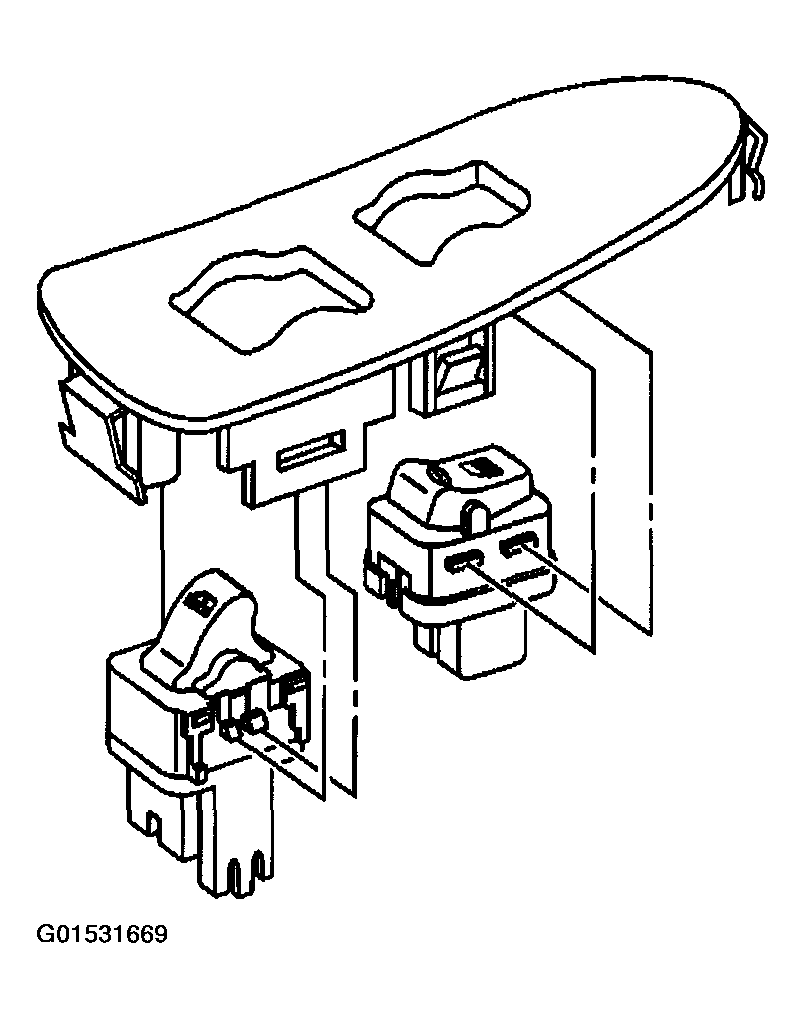

    Fig 2: Unsnapping Power Lock Switch From Switch Mounting Plate
    G01531669Courtesy of GENERAL MOTORS CORP.
