Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the outside rearview mirror face. Refer to MIRROR FACE REPLACEMENT  .
  2. Remove the outside rearview mirror. Refer to MIRROR REPLACEMENT - POWER (WITH TURN SIGNAL INDICATOR)  or MIRROR REPLACEMENT - POWER (WITHOUT TURN SIGNAL INDICATOR)   .
  3. Remove the outside rearview mirror motor screws.
  4. Remove the outside rearview mirror motor from the mirror housing.

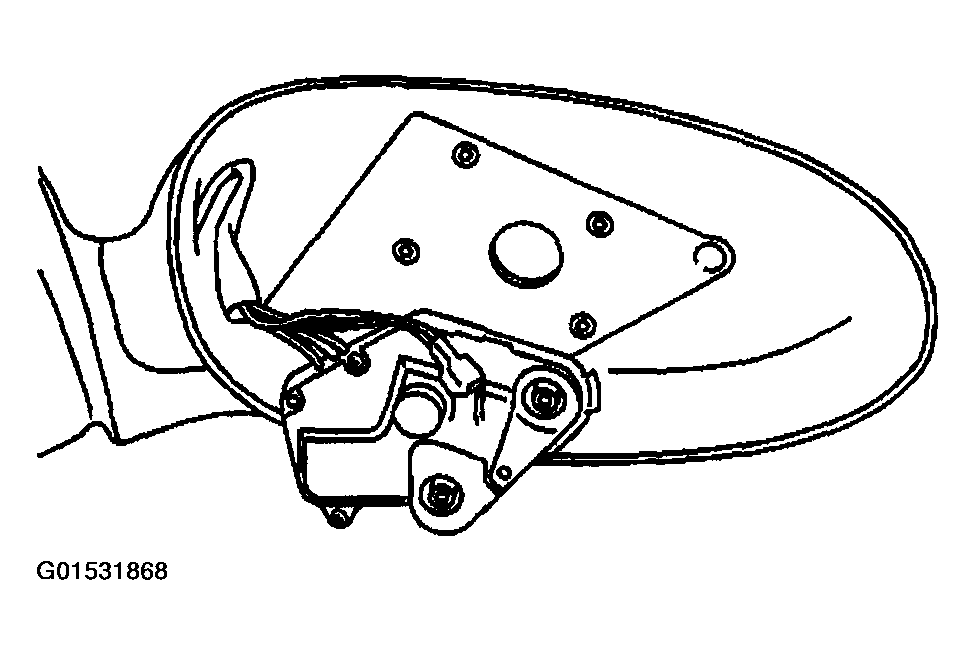

    Fig 1: Removing Outside Rearview Mirror Motor From Mirror Housing
    G01531868Courtesy of GENERAL MOTORS CORP.
