Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  2. Remove the outside rearview mirror nuts.
  3. Disconnect the mirror electrical connectors.
  4. Remove the outside rearview mirror from the front door.

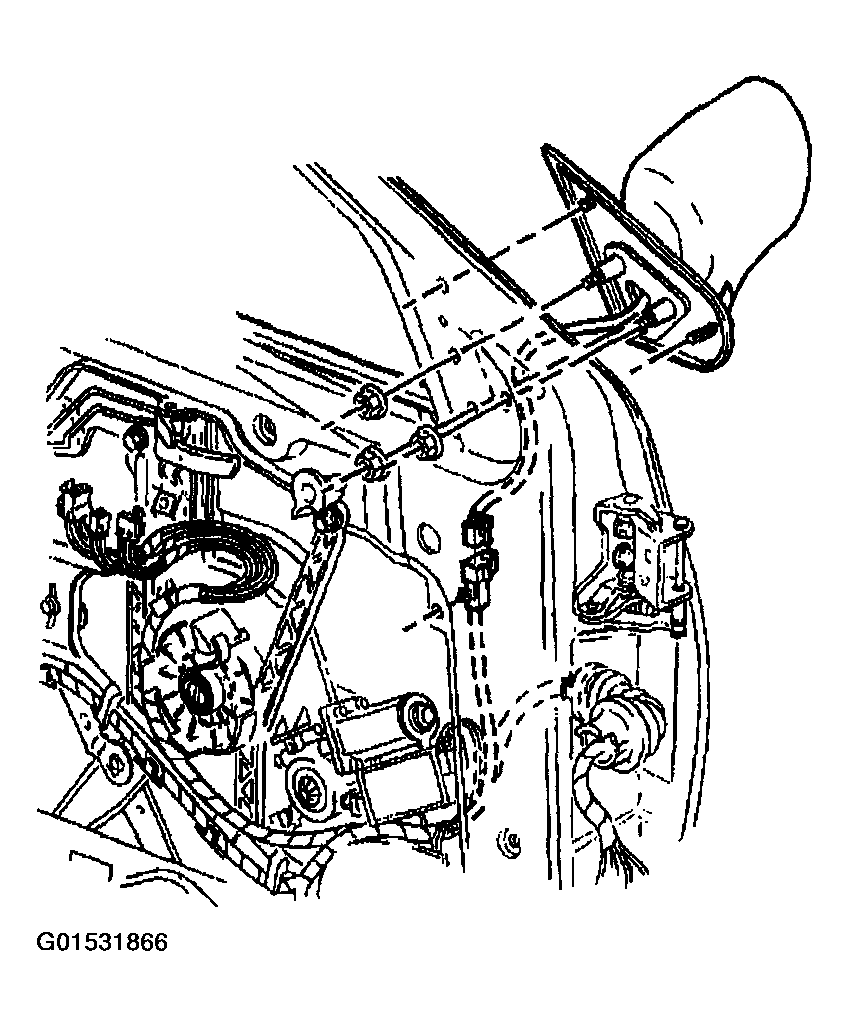

    Fig 1: Removing Outside Rearview Mirror From Front Door
    G01531866Courtesy of GENERAL MOTORS CORP.
