Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  2. Remove the cowl side trim panel. Refer to TRIM PANEL REPLACEMENT - COWL SIDE in Interior Trim.
  3. Remove the closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT in instrument Panel, Gages and Console.
  4. Disconnect the outside rearview mirror turn signal indicator electrical connector.
  5. Route the outside rearview mirror turn signal indicator electrical harness through the opening in the side of the instrument panel and through the rubber conduit into the inner front door.

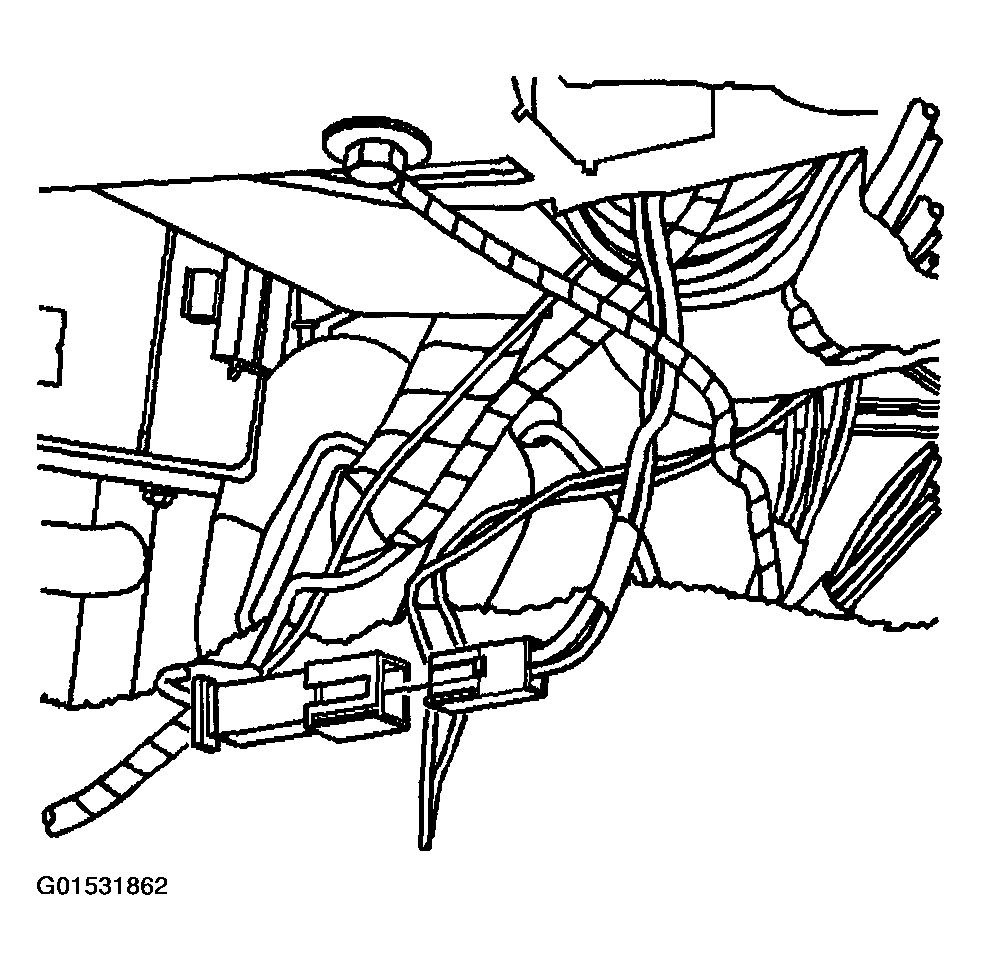

    Fig 1: Disconnecting Outside Rearview Mirror Turn Signal Indicator Electrical Connector
    G01531862Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the outside rearview mirror electrical connectors.
  7. Remove the outside rearview mirror nuts.
  8. Remove the outside rearview mirror from the front door.

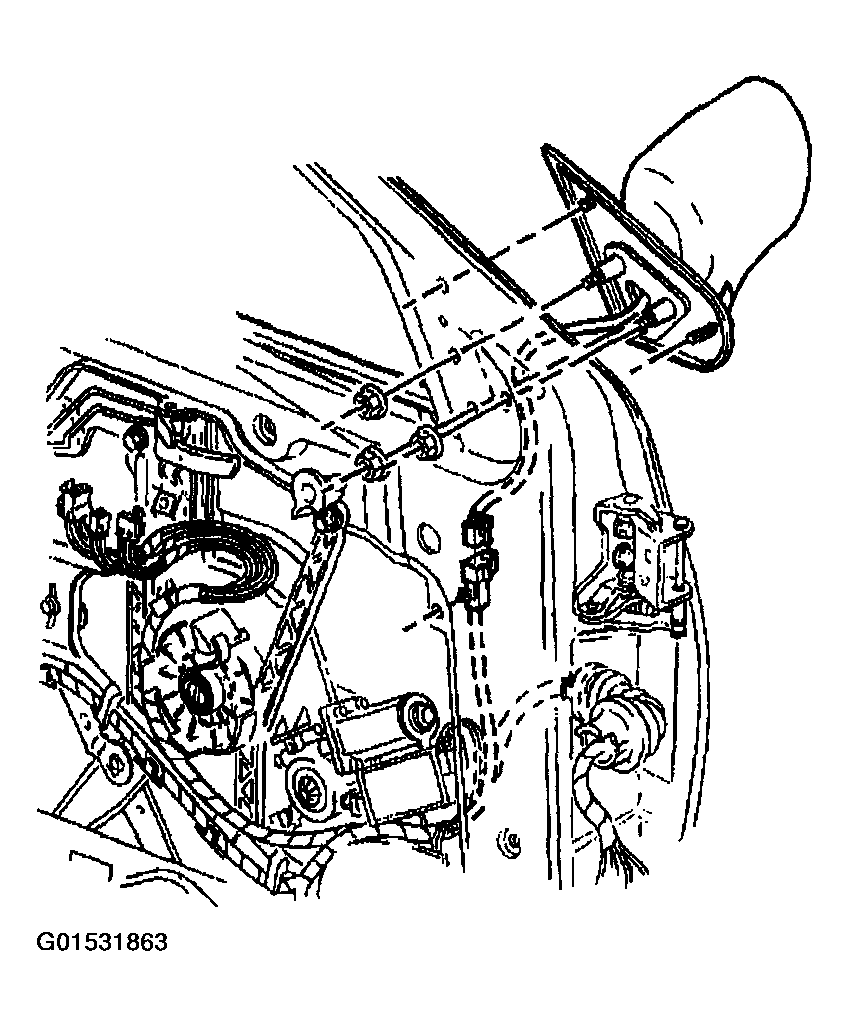

    Fig 2: Removing Outside Rearview Mirror From Front Door
    G01531863Courtesy of GENERAL MOTORS CORP.
