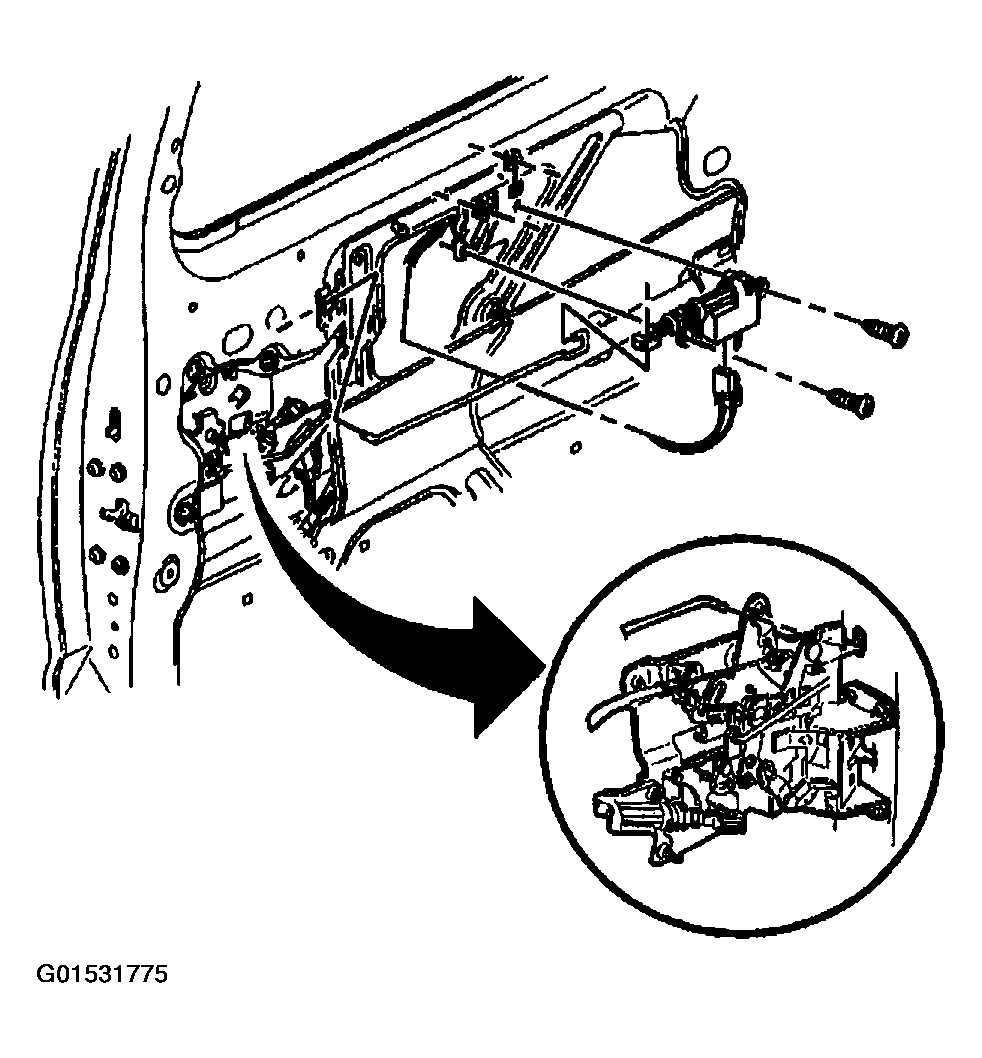

Lock Rod Adjustment - Sliding Door
WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
- Open the sliding door 5 cm (2 in).
- Connect the rear of the lock rod to the latch.
- Connect the front of the lock rod to front latch assembly.
- Adjust the barrel nut until the edge of the nut is between the center and the rear edge of the retaining clip.
- Verify that the inside door handle and the outside door handle operate correctly.
- Verify that the powersliding door operates correctly.
- Repeat the adjustment, as needed.
