Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door lock module. Refer to DOOR MODULE REPLACEMENT - FRONT .

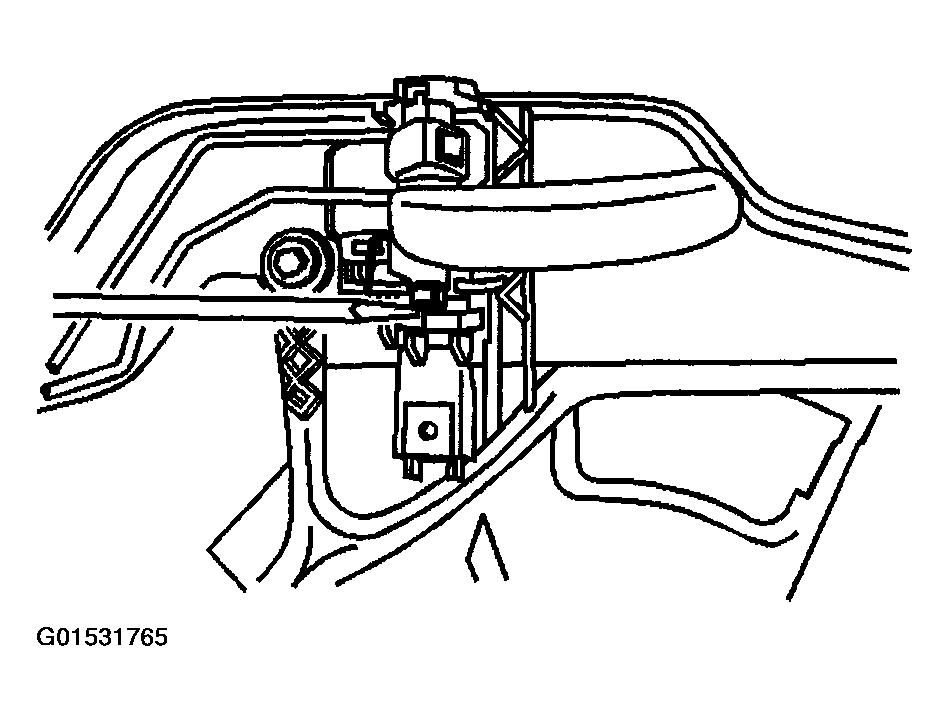

Using a small flat-bladed tool, press down on the locking tab and remove the front door inside handle.

Fig 1: Removing Front Door Inside Handle
Courtesy of GENERAL MOTORS CORP.

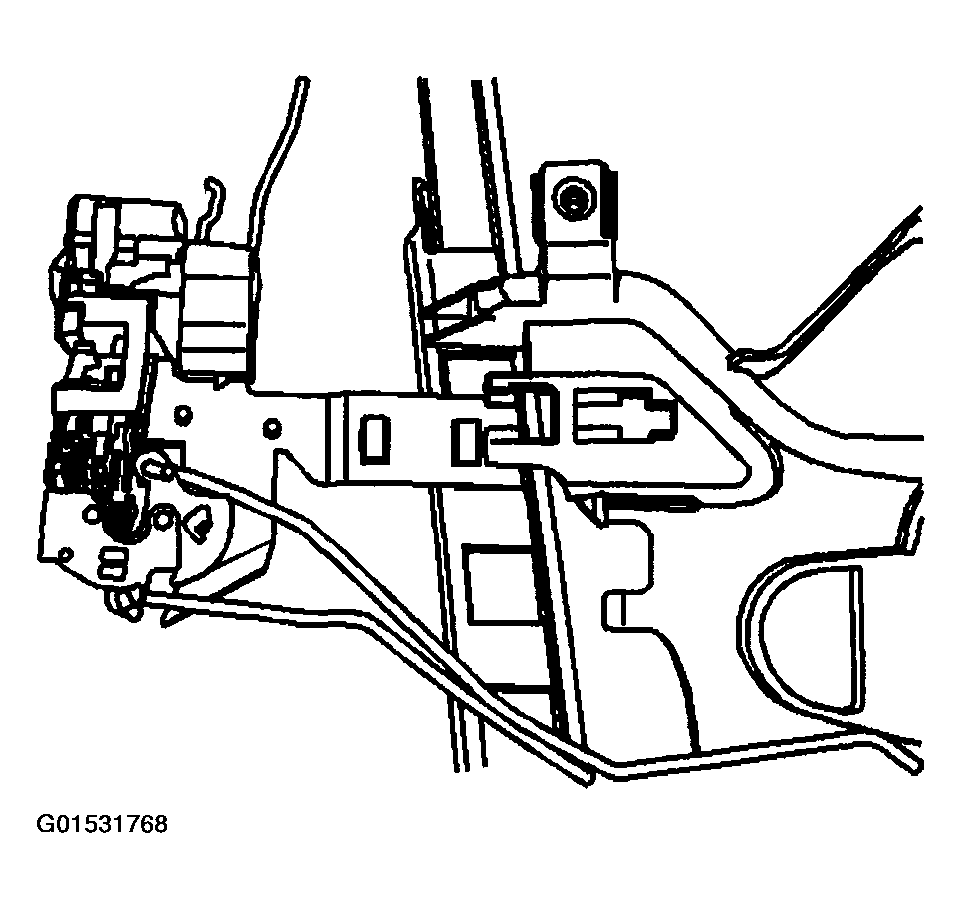

Disconnect the front door inside handle rods from the rod guide.

Fig 2: Disconnecting Front Door Inside Handle Rods
Courtesy of GENERAL MOTORS CORP.

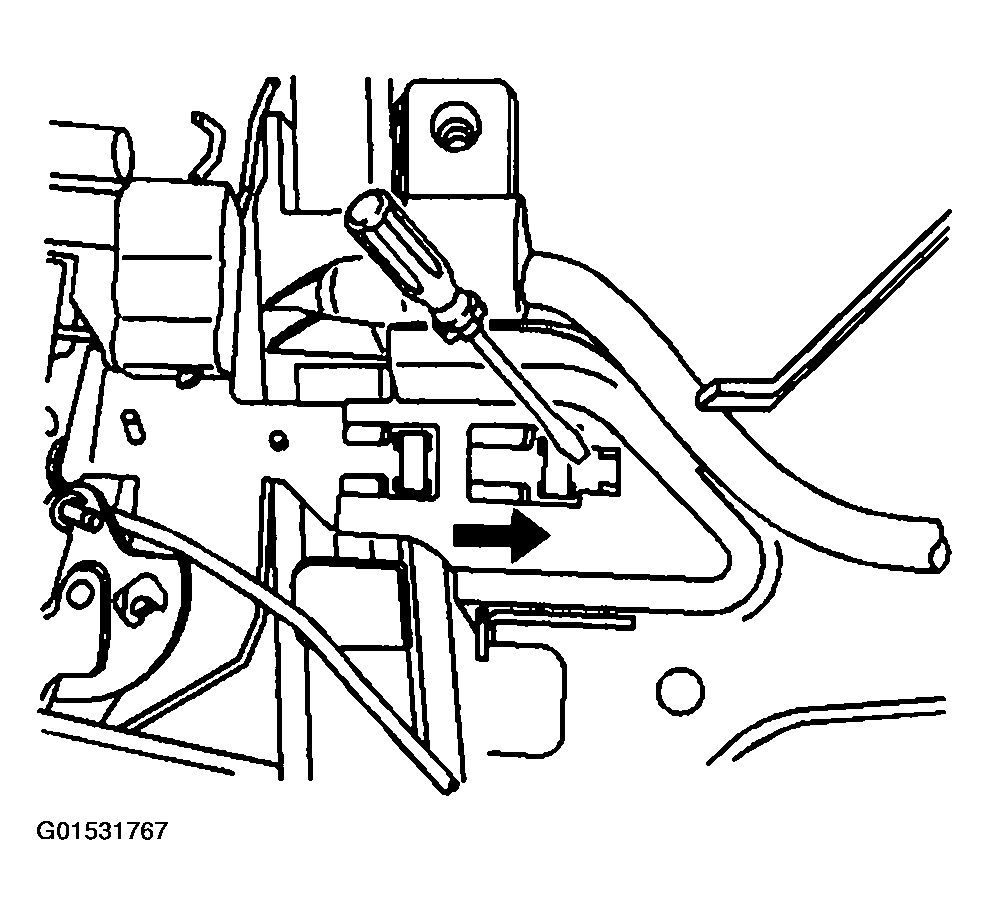

Using a small flat-bladed tool, press the front door lock retainer in and slide forward to disengage the front door lock from the front door lock module.

Fig 3: Disengaging Front Door Lock From Module
Courtesy of GENERAL MOTORS CORP.

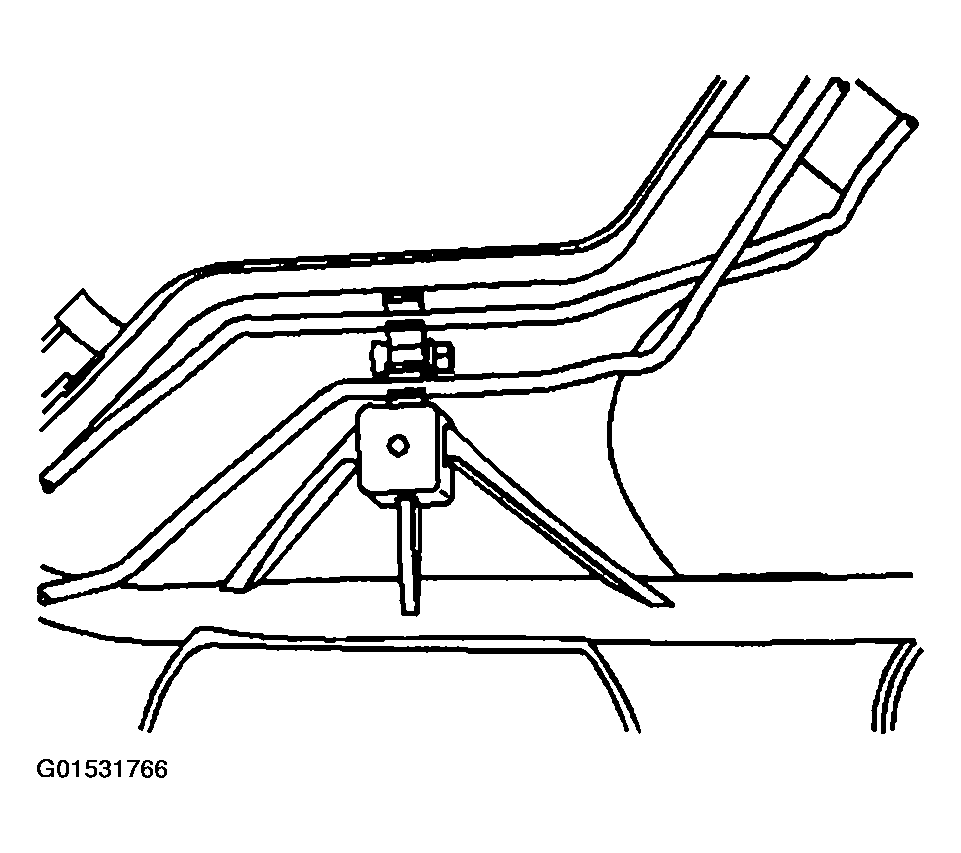

Remove the front door lock from the front door lock module.
Disconnect the front door inside handle rods from the front door lock.

Fig 4: Removing Front Door Lock From Front Door Lock Module
Courtesy of GENERAL MOTORS CORP.
