Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding door lock. Refer to LOCK REPLACEMENT - SLIDING DOOR REAR  .
  2. Disconnect the wiring harness connector from the sliding door lock actuator.
  3. Drill out the sliding door lock actuator rivets.
  4. Remove the sliding door lock actuator from the sliding door lock.

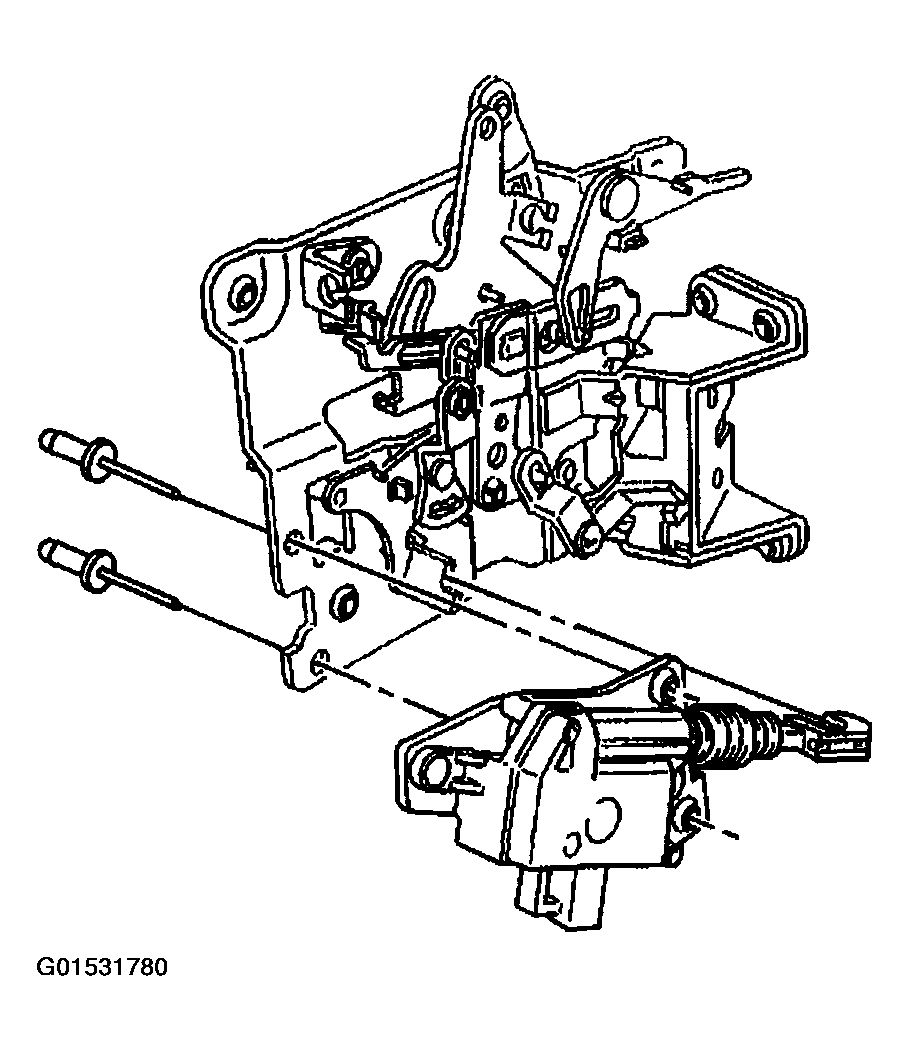

    Fig 1: Removing Sliding Door Lock Actuator
    G01531780Courtesy of GENERAL MOTORS CORP.
