Removal Procedure
WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

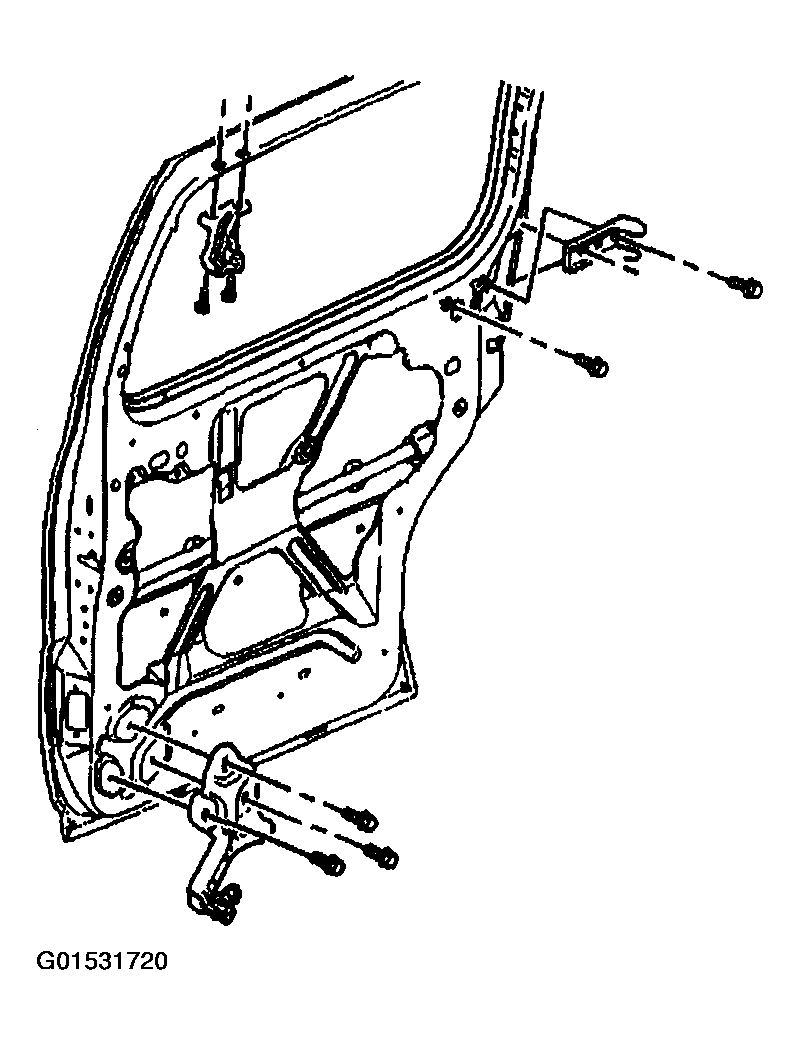

- Remove the plastic plugs from the lower front of the sliding door inner trim panel in order to gain access to the sliding door lower roller bracket to door bolts.
- Remove the close-out panel on the center rear of the sliding door inner trim panel in order to gain access to the sliding door center roller bracket bolts.
Important: Loosen only 1 bolt at a time on the following brackets:
- The sliding door lower roller bracket
- The sliding door center roller bracket
If you loosen more than 1 bolt at a time, you may cause a loss of sliding door alignment.
- Loosen 1 of the bolts on the sliding door lower roller bracket.
- Adjust the front edge of the sliding door up or down, as needed.
