Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the following procedure in order to remove the switch mounting plate:
    1. Use a flat-bladed tool at the rear of the switch mounting plate in order to release the clip.
    2. Lift up in order to unsnap the mounting plate from the front door trim panel.
  2. Disconnect the electrical connectors.

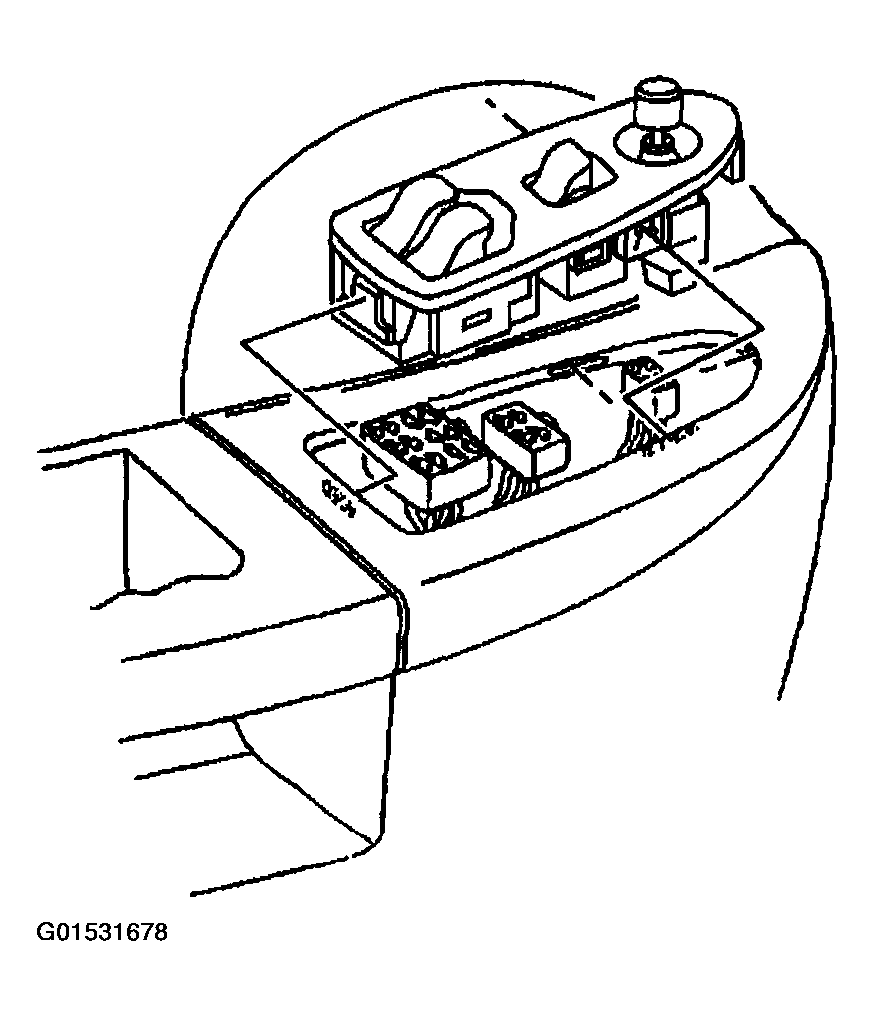

    Fig 1: Removing Switch Mounting Plate
    G01531678Courtesy of GENERAL MOTORS CORP.
  3. Unsnap the switch from the mounting plate.

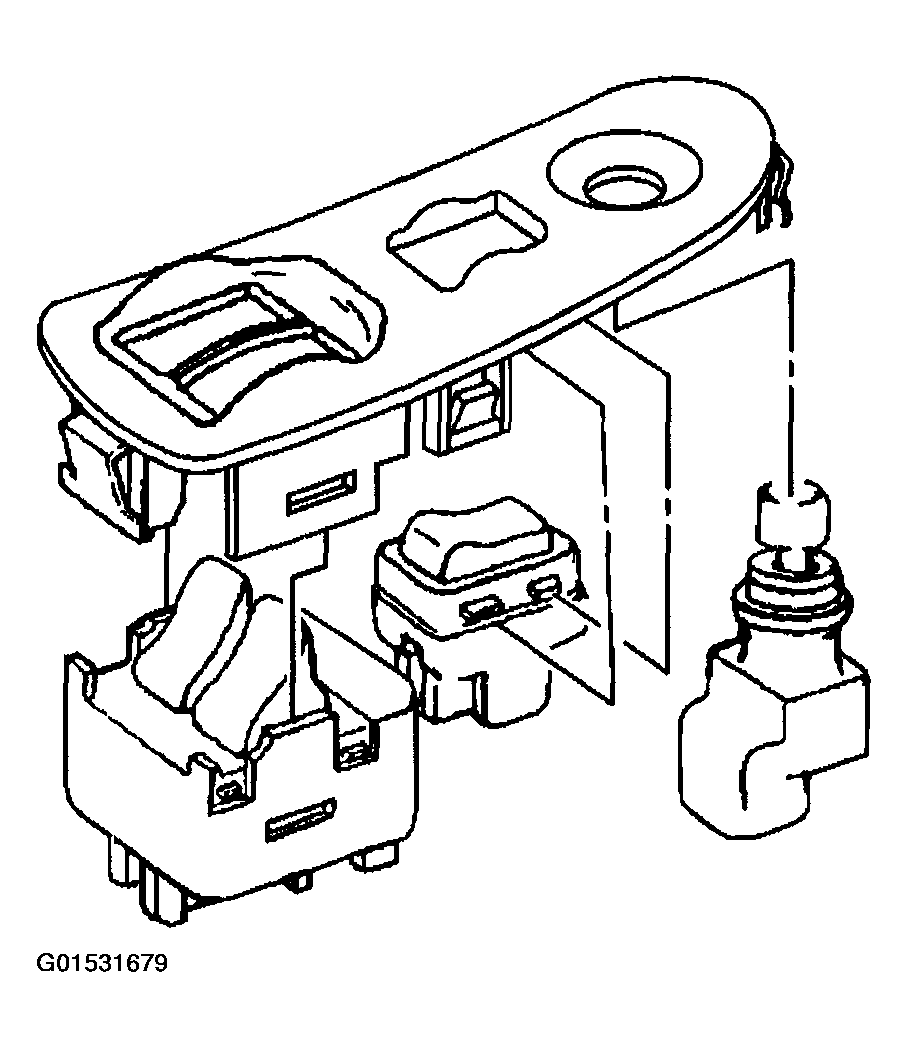

    Fig 2: Unsnapping Switch From Mounting Plate
    G01531679Courtesy of GENERAL MOTORS CORP.
