Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the front door.
  2. Scribe the location of the existing front door lock striker on the B-pillar with a grease pencil.
  3. Remove the front door lock striker screws.
  4. Remove the front door lock striker from B-pillar.

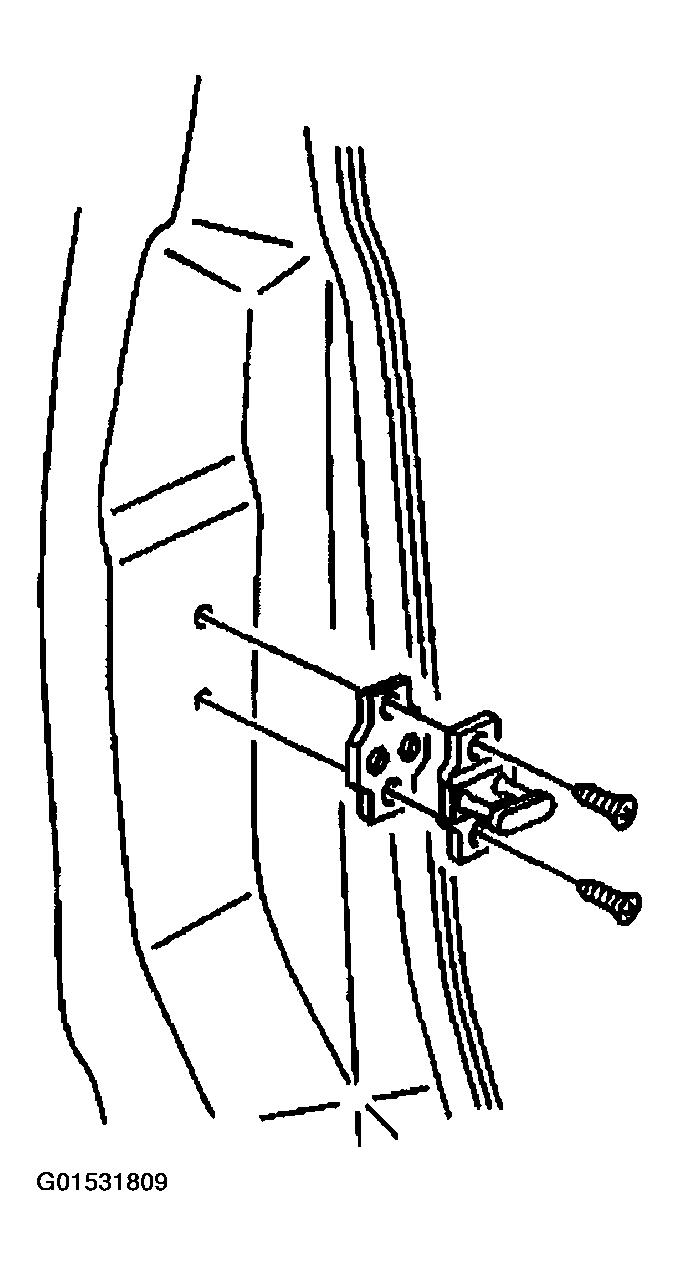

    Fig 1: Removing Front Door Lock Striker
    G01531809Courtesy of GENERAL MOTORS CORP.
