Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the sliding door.
  2. Support the sliding door at the bottom.
  3. Remove the pin from the sliding door center roller bracket.
  4. Remove the sliding door lower roller bracket. Refer to ROLLER BRACKET REPLACEMENT - LOWER  .
  5. Remove the sliding door upper roller bracket. Refer to ROLLER BRACKET REPLACEMENT - UPPER  .
  6. With an assistant, remove the sliding door from the vehicle with the aid of an assistant.

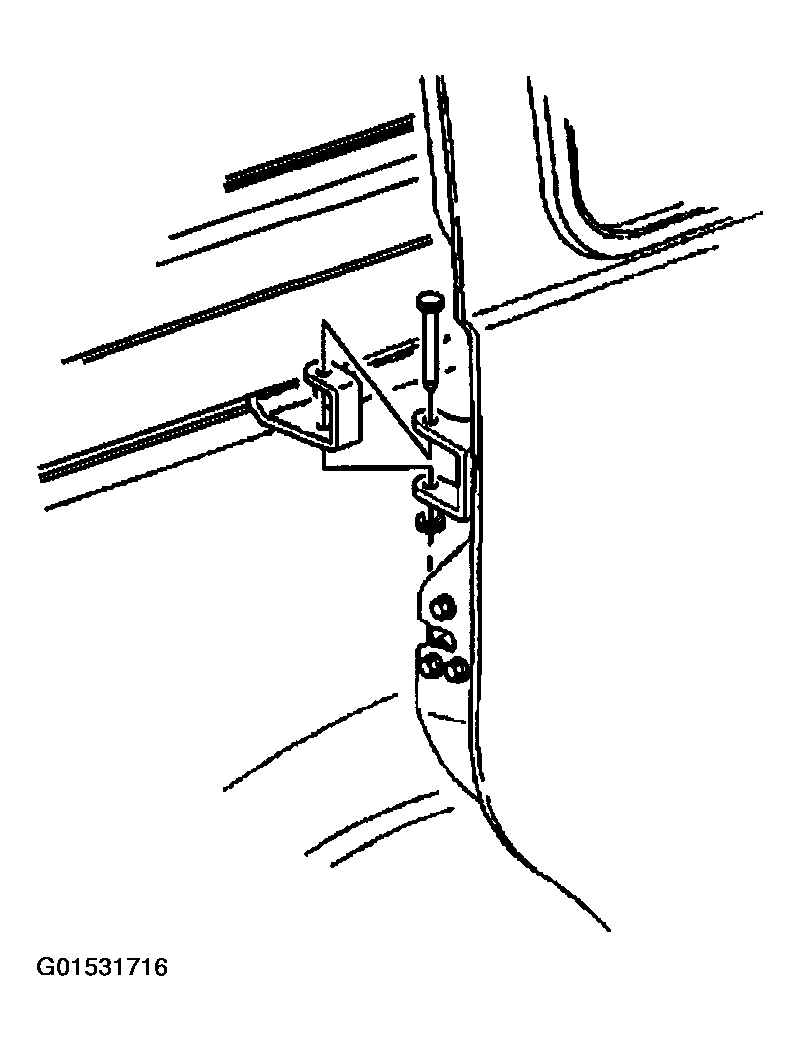

    Fig 1: Removing Pin From Sliding Door Center Roller Bracket
    G01531716Courtesy of GENERAL MOTORS CORP.
