Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Use a small flat-bladed tool in order to unsnap and remove the door handle cup from the trim panel.

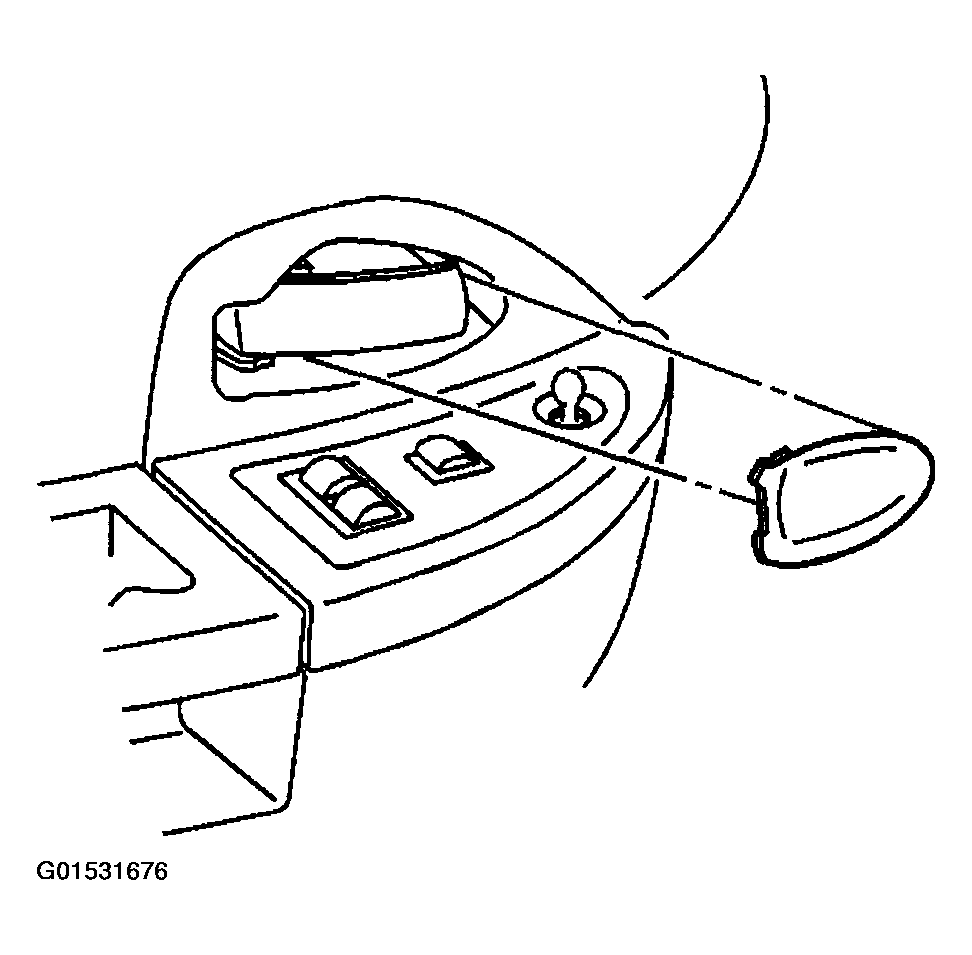

Fig 1: Removing Door Handle Bezel
G01531676Courtesy of GENERAL MOTORS CORP.
