Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the sliding door half way.
  2. Remove the bolt for the sliding door catch with the reinforcement channel from the sliding door lower track.
  3. Remove the sliding door catch with the reinforcement channel from the sliding door lower track.

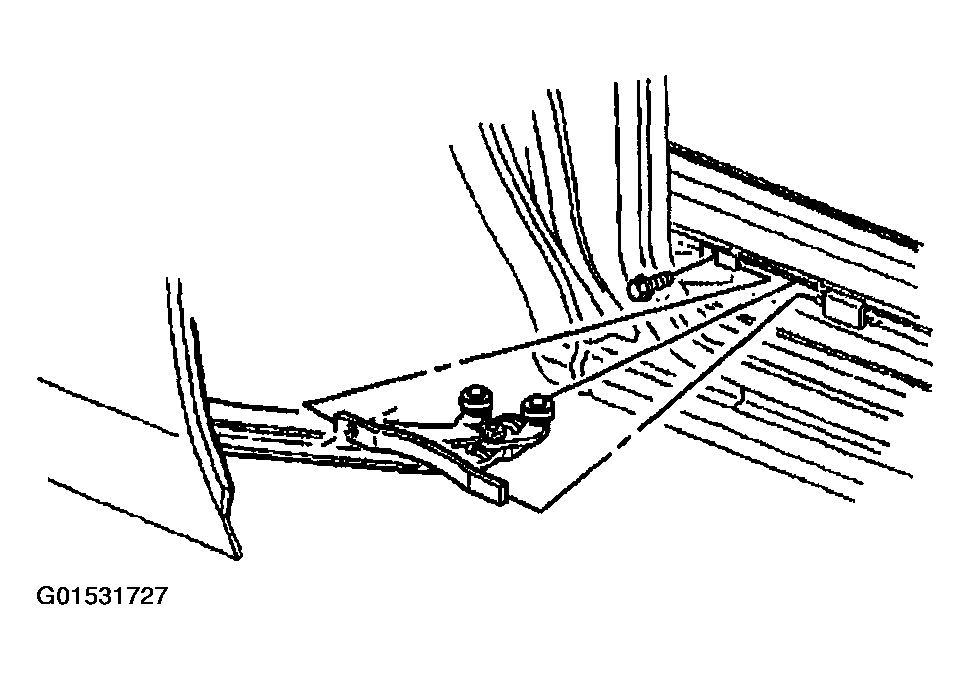

    Fig 1: Removing Sliding Door Catch With Reinforcement Channel
    G01531727Courtesy of GENERAL MOTORS CORP.
