Up and Down Adjustment Procedure
WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
Important: When adjusting either the manual or the power sliding door, loosen only one bolt at a time on the sliding door lower roller bracket and the sliding door center roller bracket. Failure to loosen one bolt at a time may result in a complete loss of sliding door alignment.

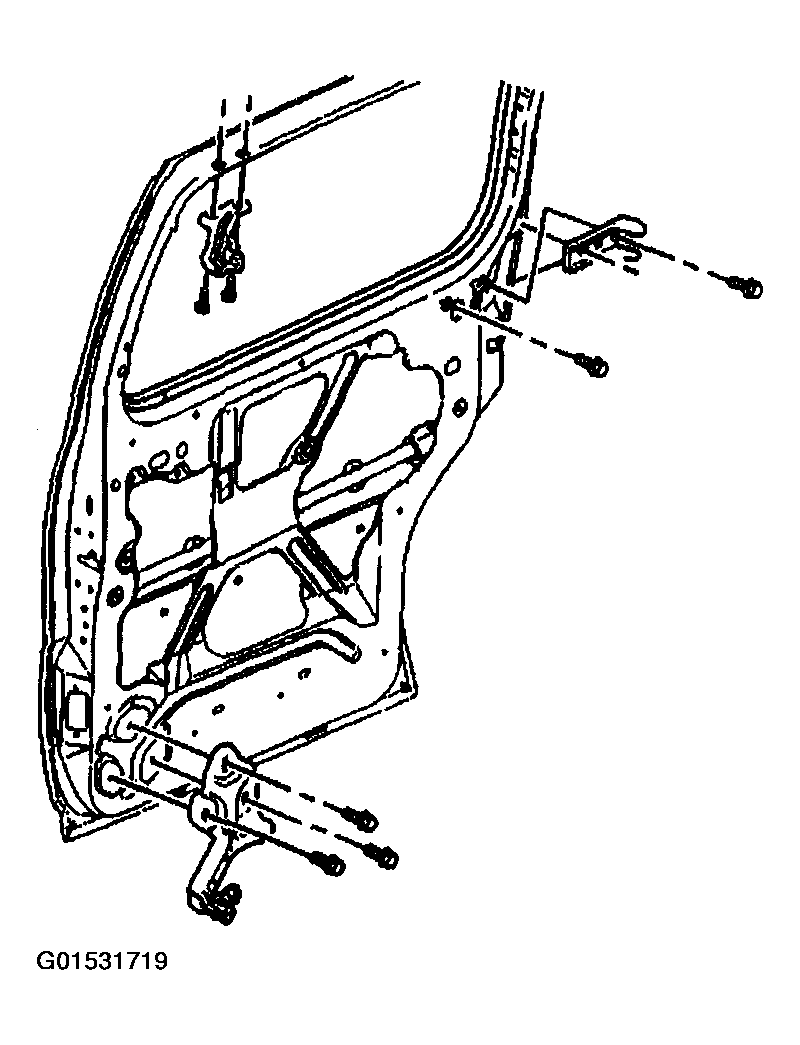

- Remove the lower front plastic plugs on the sliding door inner trim panel in order to access the sliding door lower roller bracket to door bolts.
- Remove the close-out panel on the center rear of the sliding door inner trim panel in order to access the sliding door center roller bracket bolts.
- Loosen one sliding door lower roller bracket bolt.
- Adjust the front edge of the sliding door up or down as needed.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Tighten the loosened sliding door lower roller bracket to door bolt.
Tighten
Tighten the bolt to 25 N.m (18 lb ft).
- Loosen the sliding door center roller bracket bolt.
- Adjust the rear edge of the sliding door up or down as needed.
- Tighten the loosened sliding door center roller bracket bolt.
Tighten
Tighten the bolt to 25 N.m (18 lb ft).
- Install the close-out panel on the center rear of sliding door inner trim panel in order to cover the sliding door center roller bracket bolts.
- Install the plastic plugs on the lower front sliding door inner trim panel in order to cover the sliding door lower roller bracket bolts.
