Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the powersliding door.
  2. Using the J 38778  , remove the sliding door jamb contact plate push-in retainers.
  3. Remove the sliding door jamb contact plate from the pillar.
  4. Disconnect the sliding door jamb contact plate electrical connector.

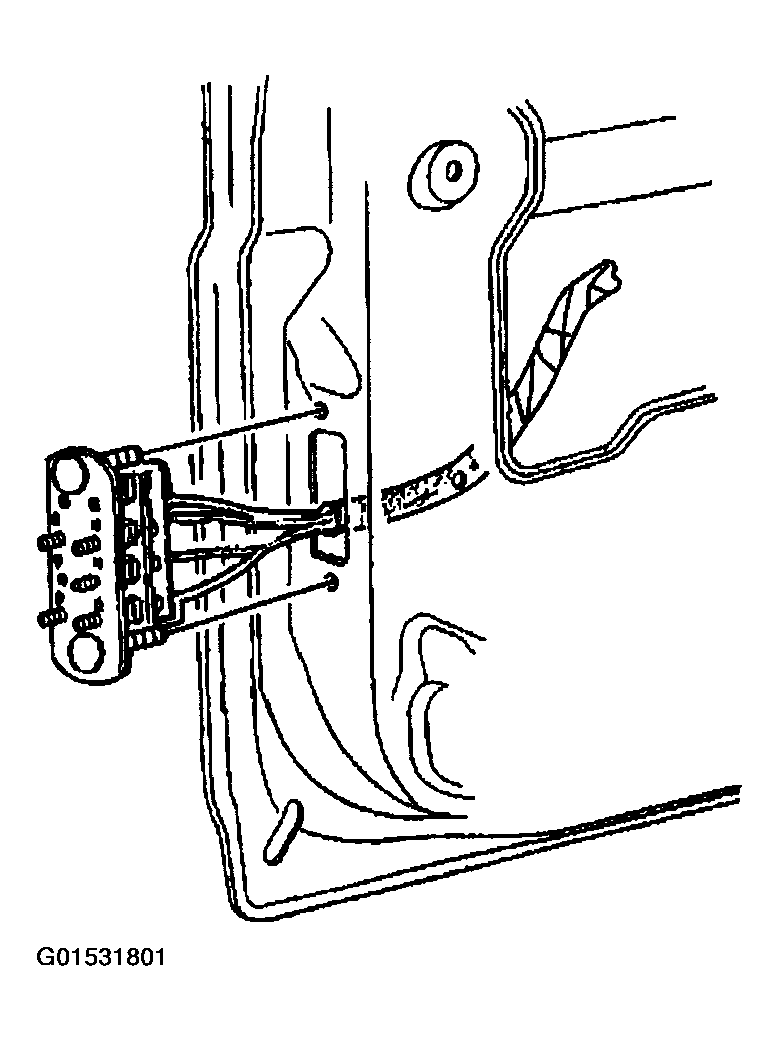

    Fig 1: Removing Sliding Door Jamb Contact Plate From Pillar
    G01531801Courtesy of GENERAL MOTORS CORP.
