Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Remove the right rear tail lamp. Refer to TAIL LAMP ASSEMBLY AND / OR BACKUP, SIDEMARKER, STOP, TURN SIGNAL BULB REPLACEMENT in Lighting Systems.
Remove the sliding door center track cover rear screw.
Open the sliding door.

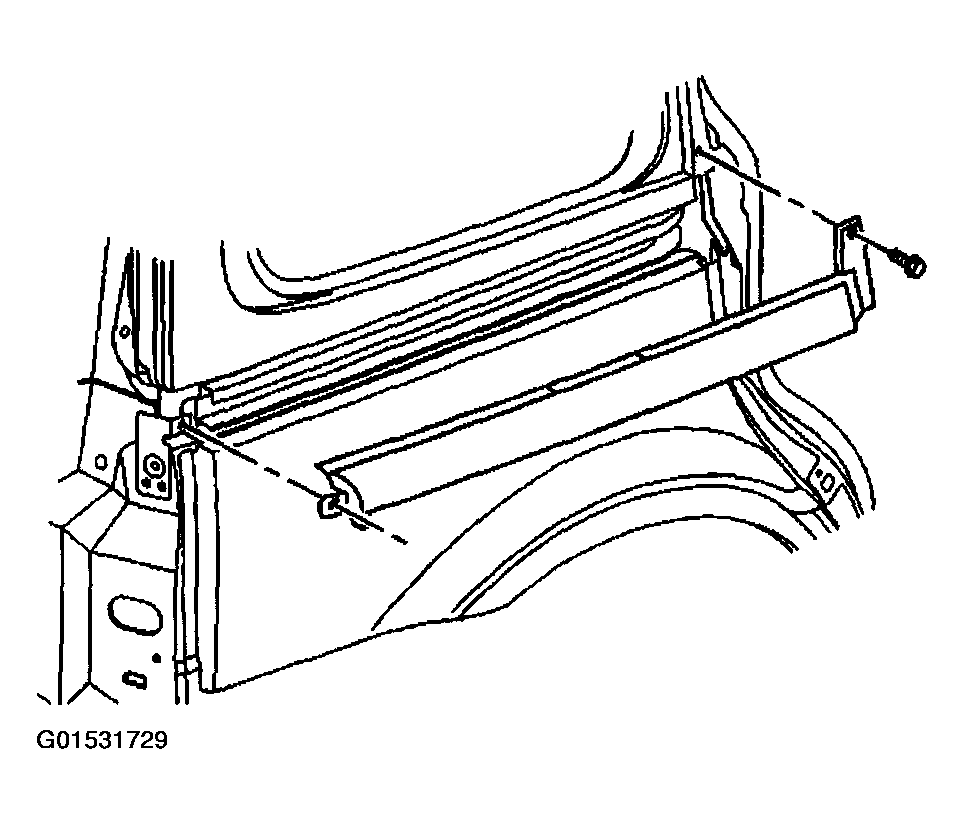

Fig 1: Removing Sliding Door Center Track Cover Rear
Courtesy of GENERAL MOTORS CORP.
Remove the sliding door center track bracket screws.
Remove the sliding door center track bracket from the vehicle.

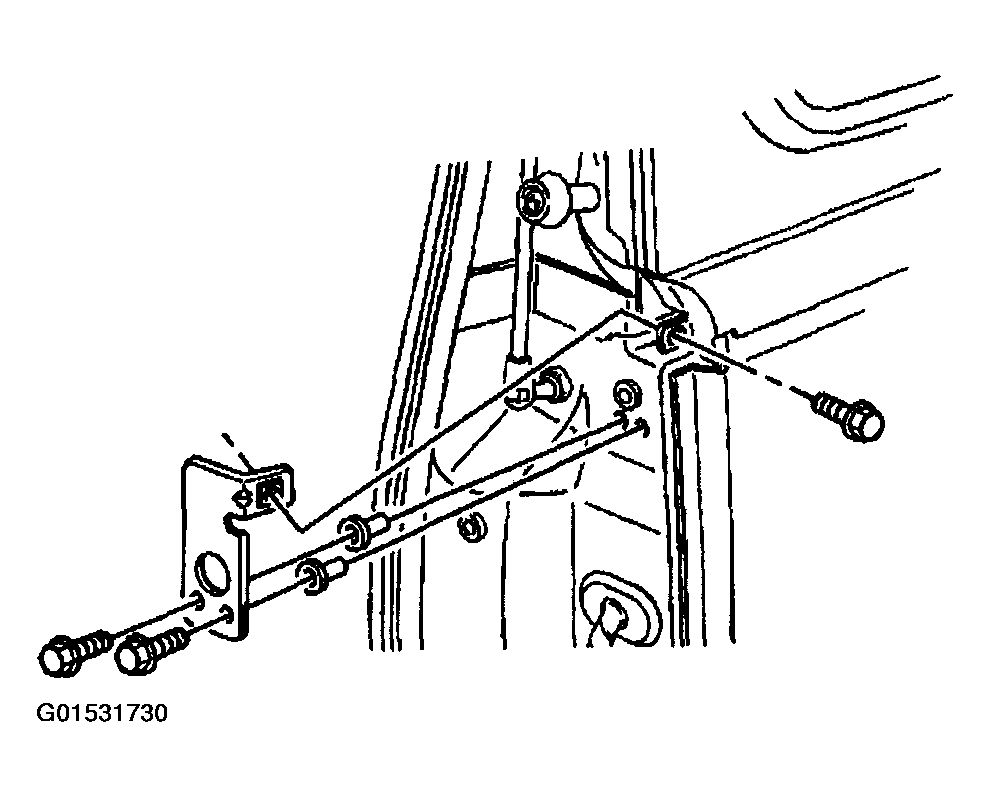

Fig 2: Removing Sliding Door Center Track Bracket
Courtesy of GENERAL MOTORS CORP.
