Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right rear quarter lower trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER in Interior Trim.
  2. Pull the alarm (4) from power sliding door actuator motor, separating the hook and loop retainer.
  3. Remove the alarm electrical connector.

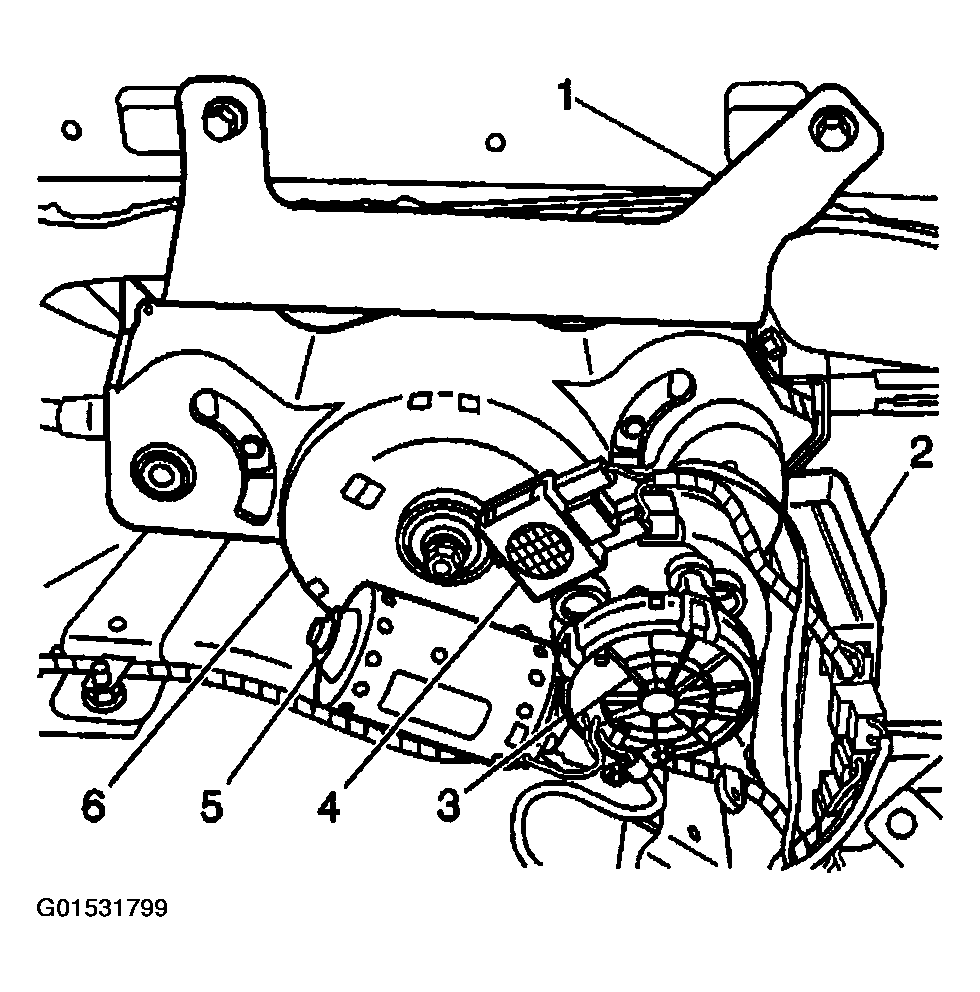

    Fig 1: Pulling Alarm From Power Sliding Door Actuator Motor
    G01531799Courtesy of GENERAL MOTORS CORP.
