Power Window Inoperative - Passenger Door

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

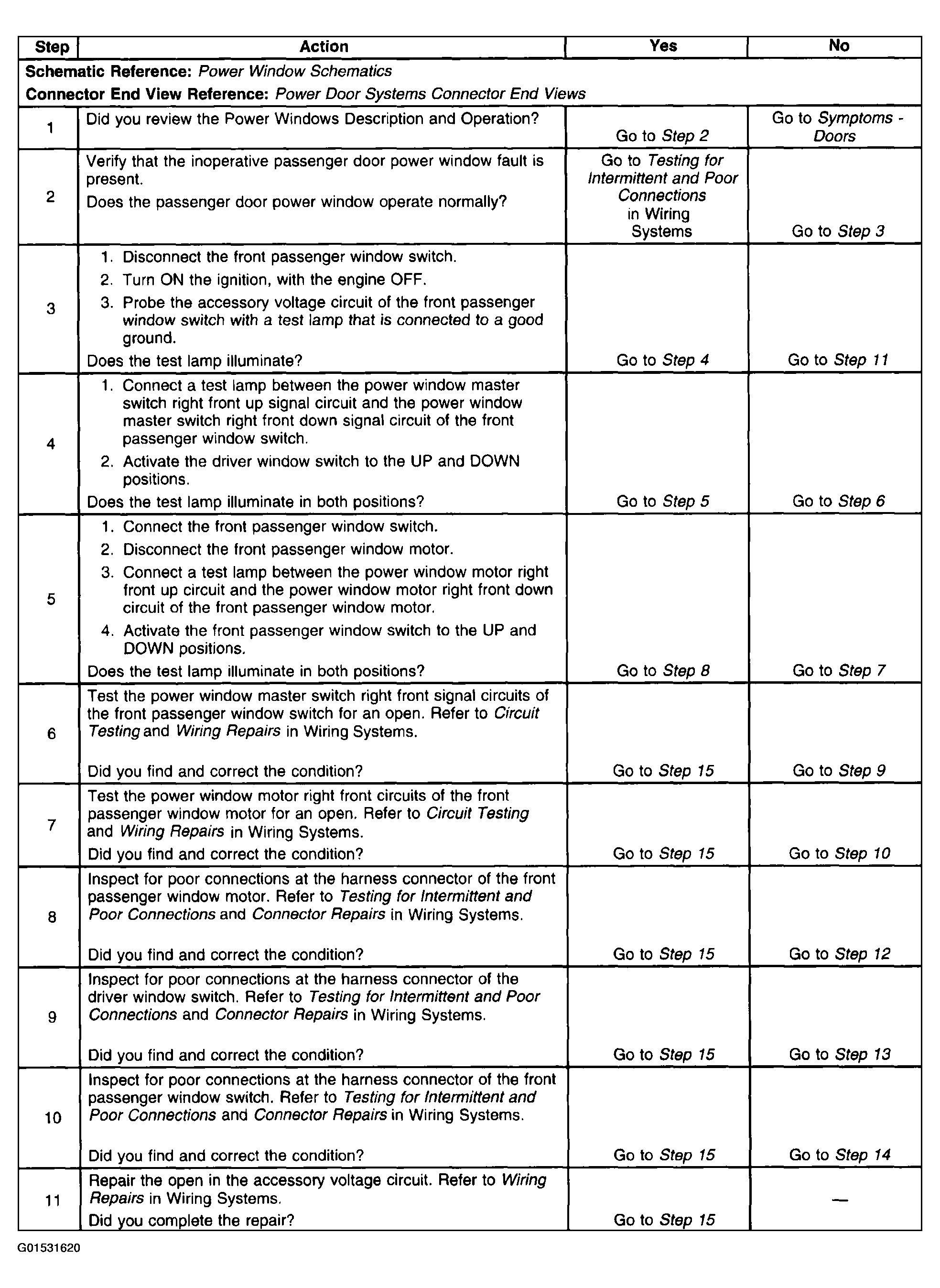

Fig 1: Power Window Inoperative - Passenger Door Diagnostic Specifications (1 Of 2)
G01531620Courtesy of GENERAL MOTORS CORP.

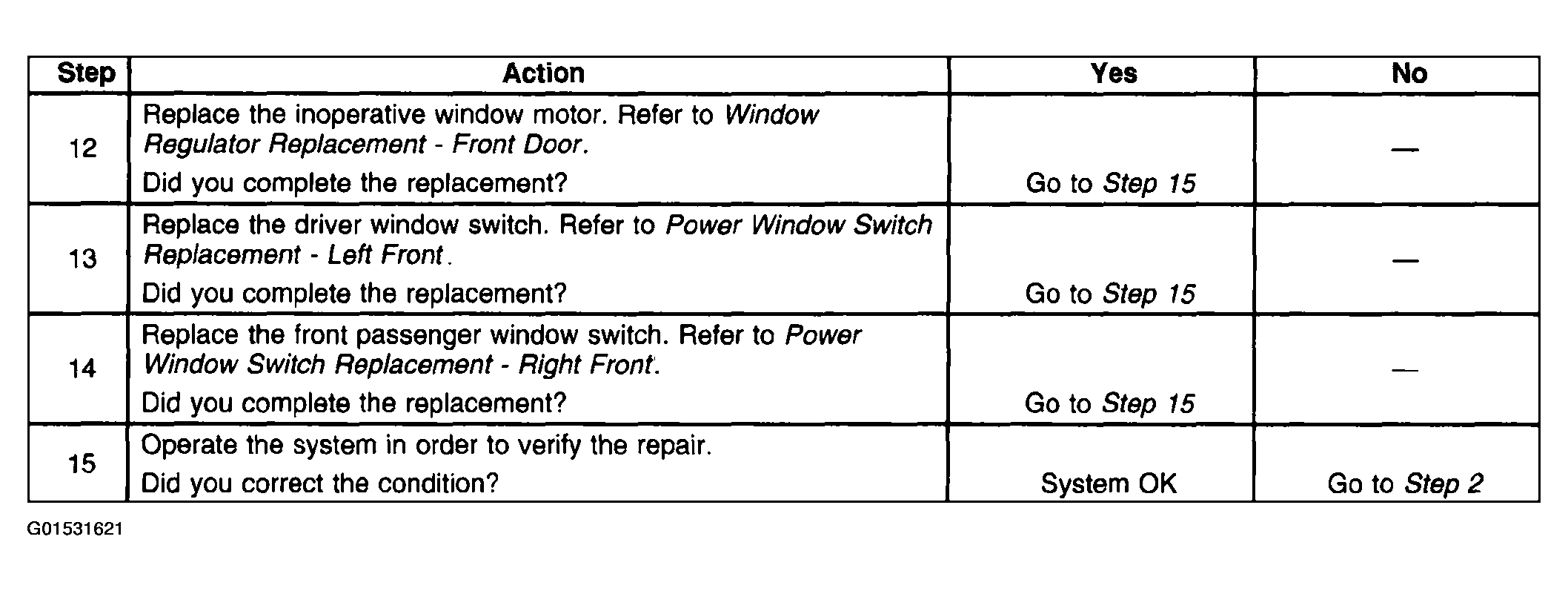

Fig 2: Power Window Inoperative - Passenger Door Diagnostic Specifications (2 Of 2)
G01531621Courtesy of GENERAL MOTORS CORP.
