Power Sliding Door (PSD) Inoperative from One Switch

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

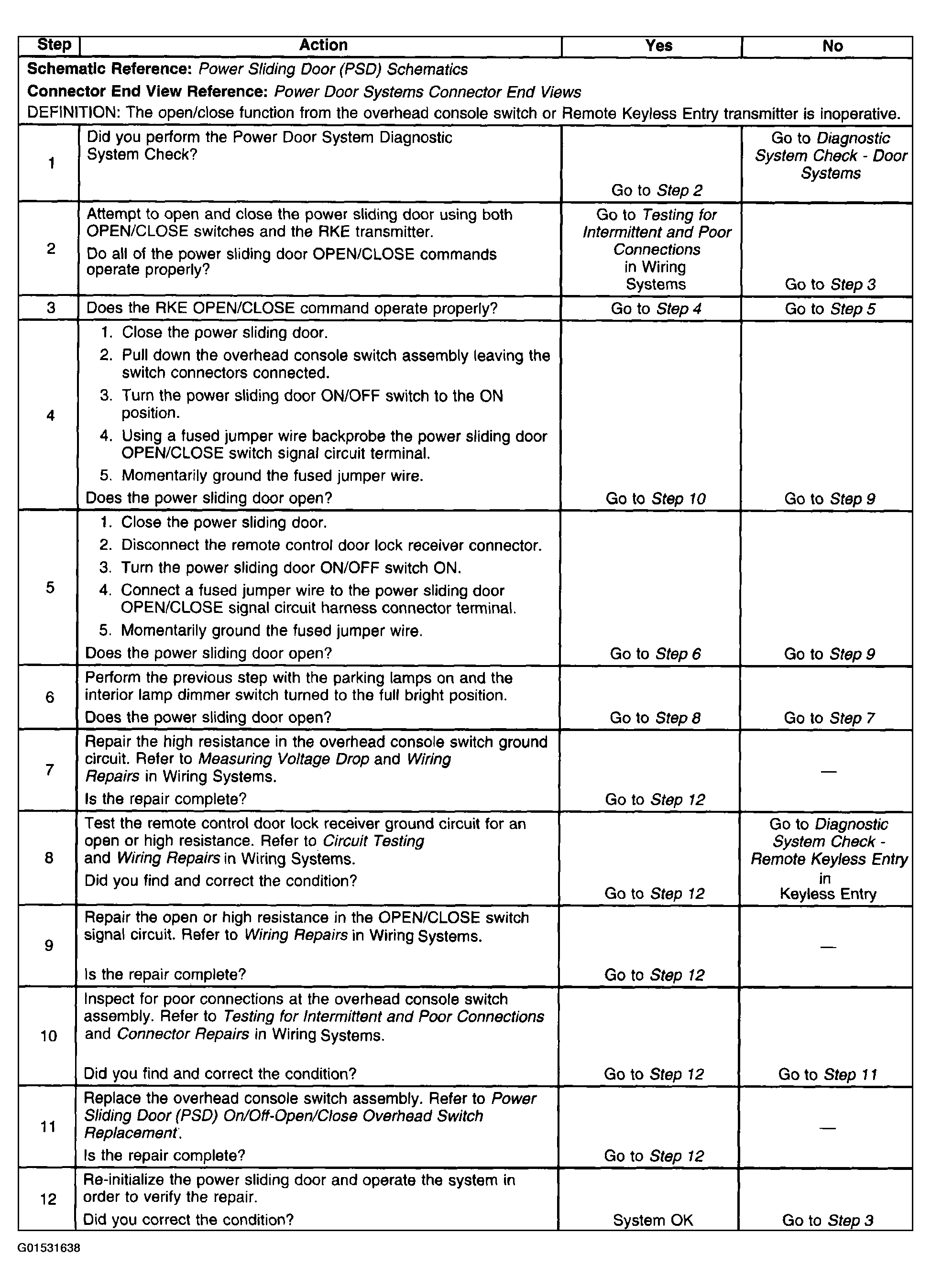

Fig 1: Power Sliding Door (PSD) Inoperative from One Switch Diagnostic Specifications
G01531638Courtesy of GENERAL MOTORS CORP.
