Test Description

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

6. This step tests the integrity of both the mirror control circuits and the power mirror switch. If both power mirrors are inoperative on one or more axis, begin testing by disconnecting one of the power mirrors, if an open circuit is detected and repaired for that power mirror, repeat step 6 for the other power mirror.

7. This step tests the integrity of the battery positive voltage circuit not the fuse.

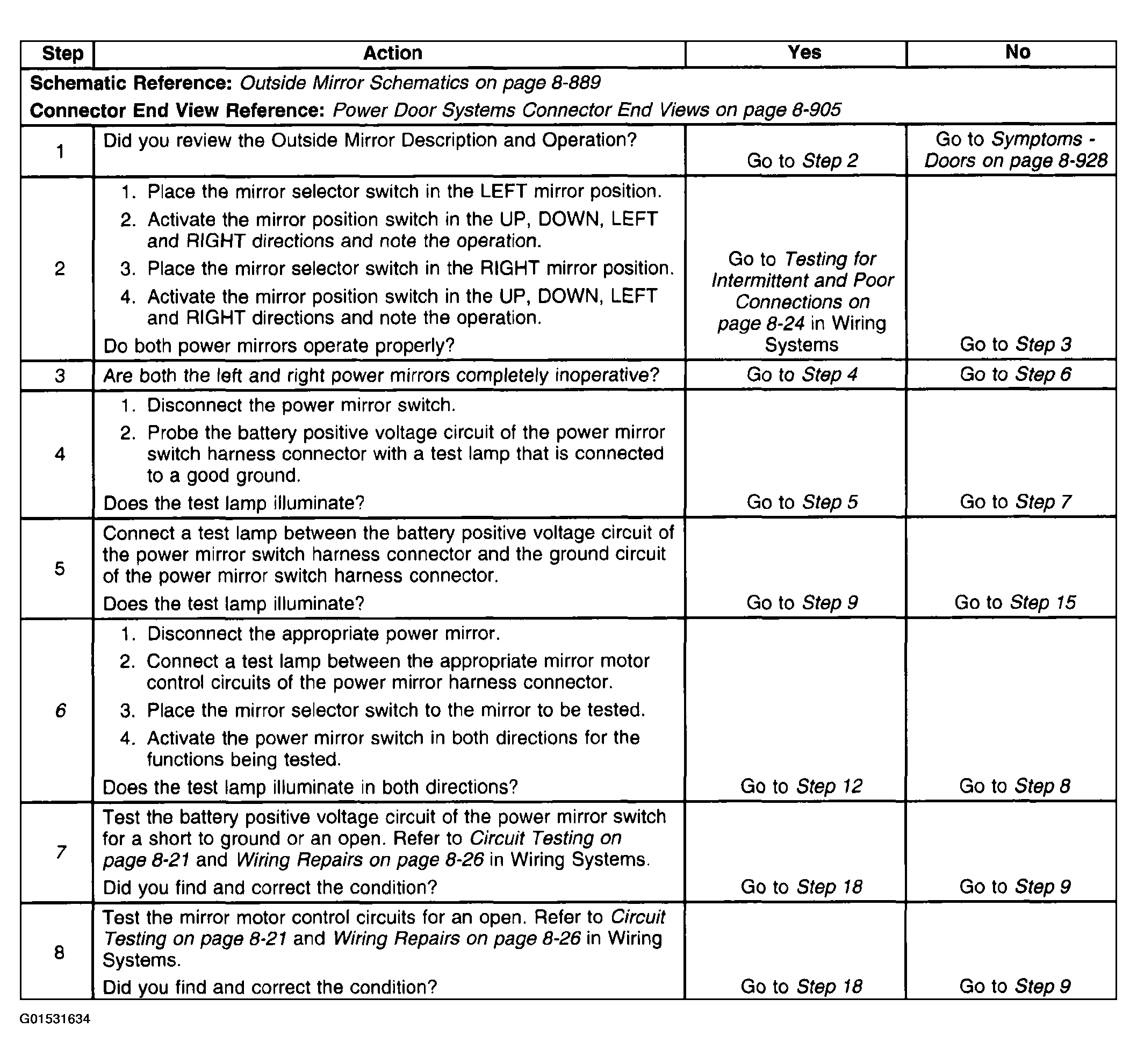

Fig 1: Power Mirrors Inoperative Diagnostic Specifications (1 Of 2)
G01531634Courtesy of GENERAL MOTORS CORP.

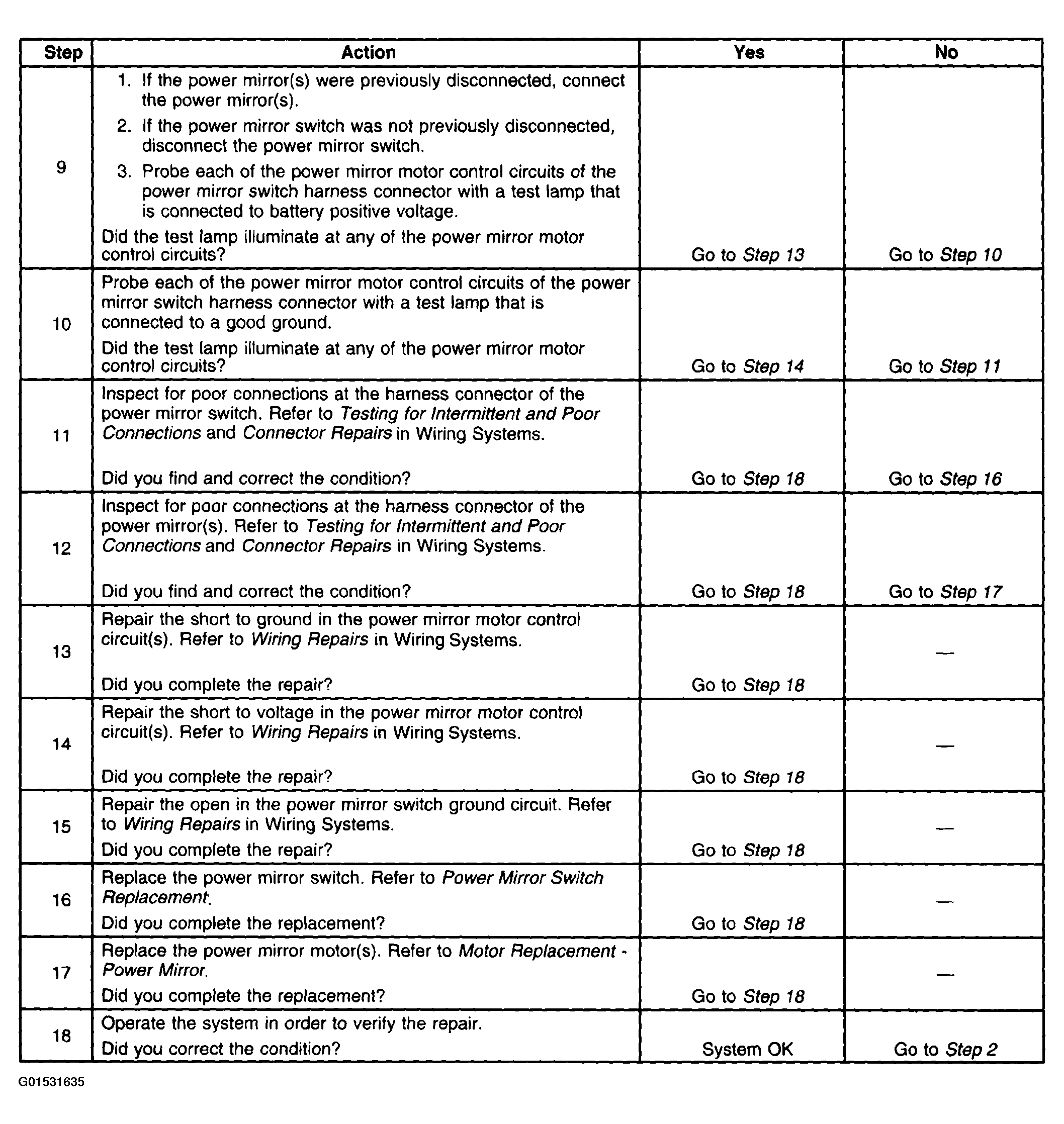

Fig 2: Power Mirrors Inoperative Diagnostic Specifications (2 Of 2)
G01531635Courtesy of GENERAL MOTORS CORP.
