Test Description

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

The number(s) below refer to the step number(s) on the diagnostic table.

3. The right and left power sliding doors operate as independent systems. Enter the on-board diagnostic modes of the system for which the condition exists.

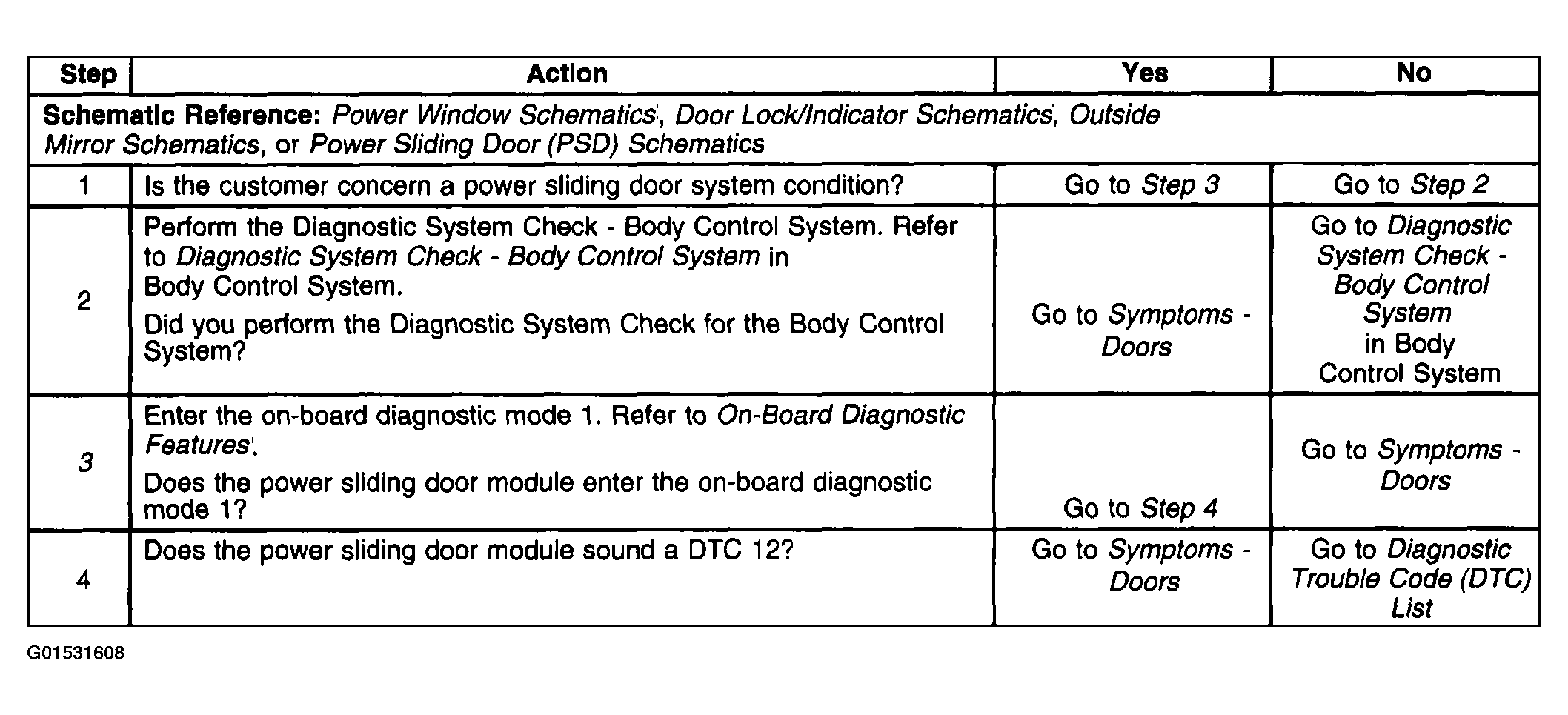

Fig 1: Diagnostic System Check - Door Systems
G01531608Courtesy of GENERAL MOTORS CORP.
