Test Description
WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

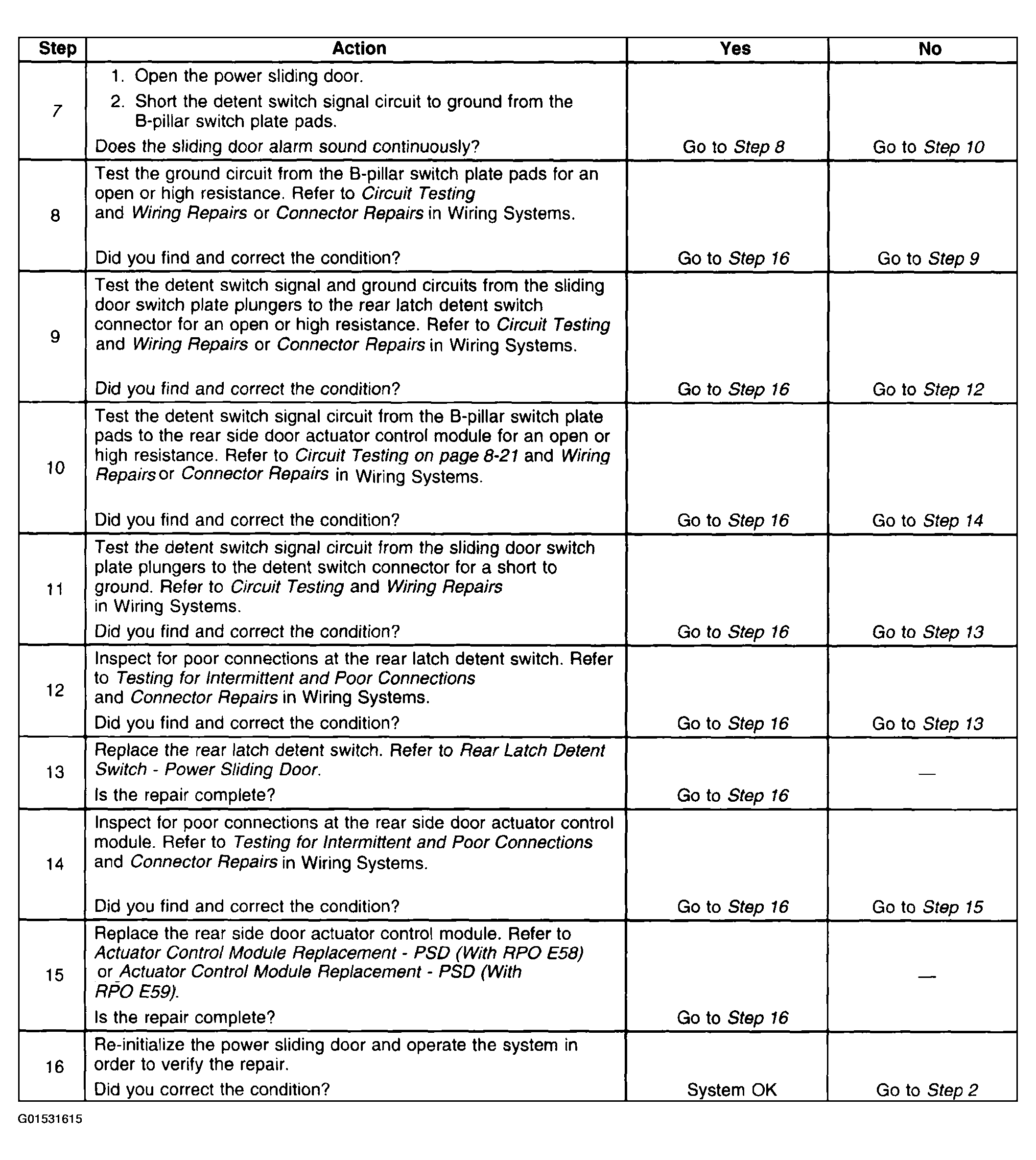

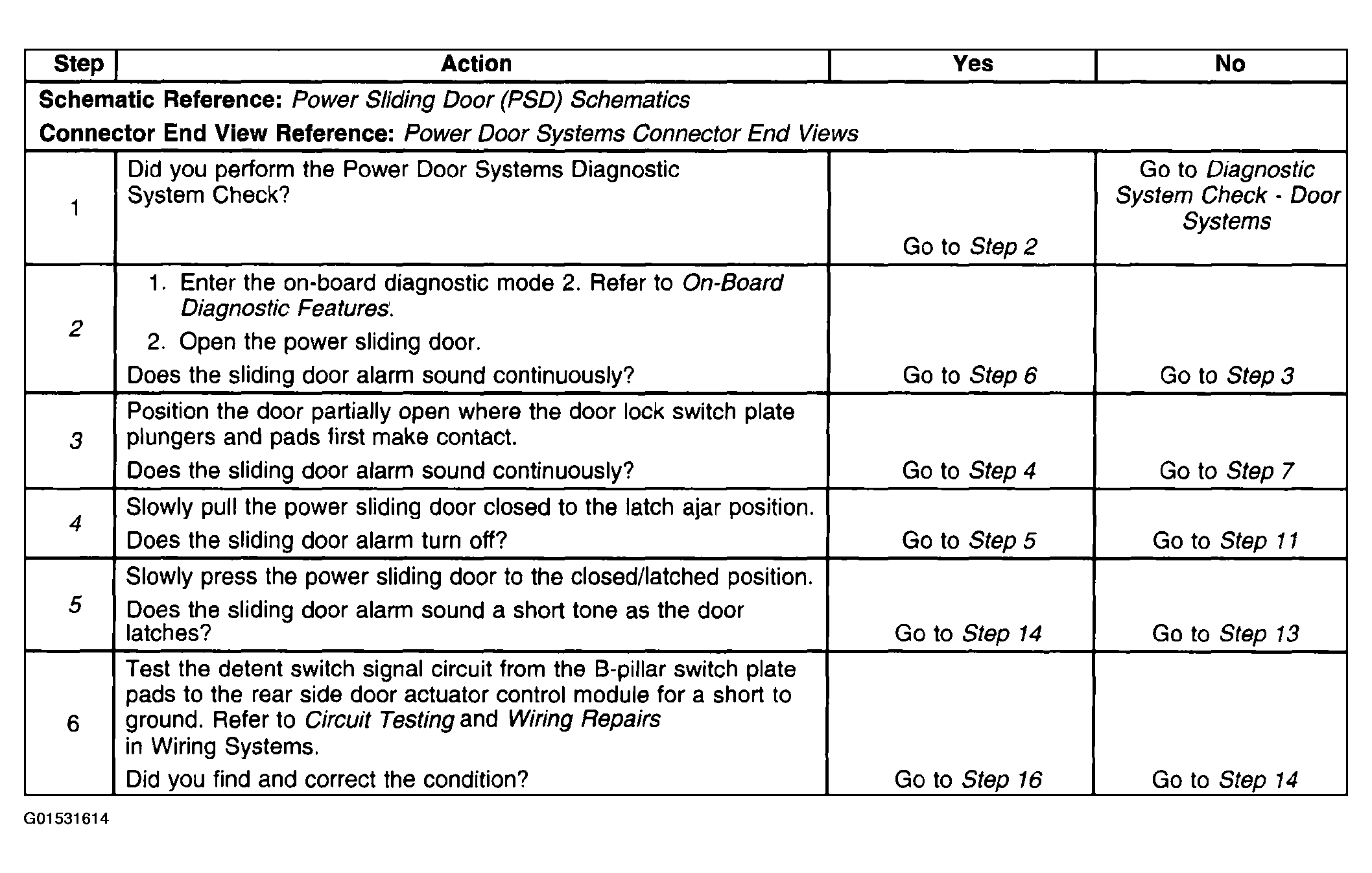

The number(s) below refer to the step number(s) on the diagnostic table.
2. Tests for a short to ground in the detent switch circuit from the B-pillar to the module.
3. Tests the detent switch open position for continuity to ground.
4. Tests the detent switch ajar position.
5. Tests the detent switch for continuity to ground between the ajar and latch positions.
7. Tests the detent switch signal circuit from the B-pillar to the module for continuity.
