Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolts from the fender splash shield.

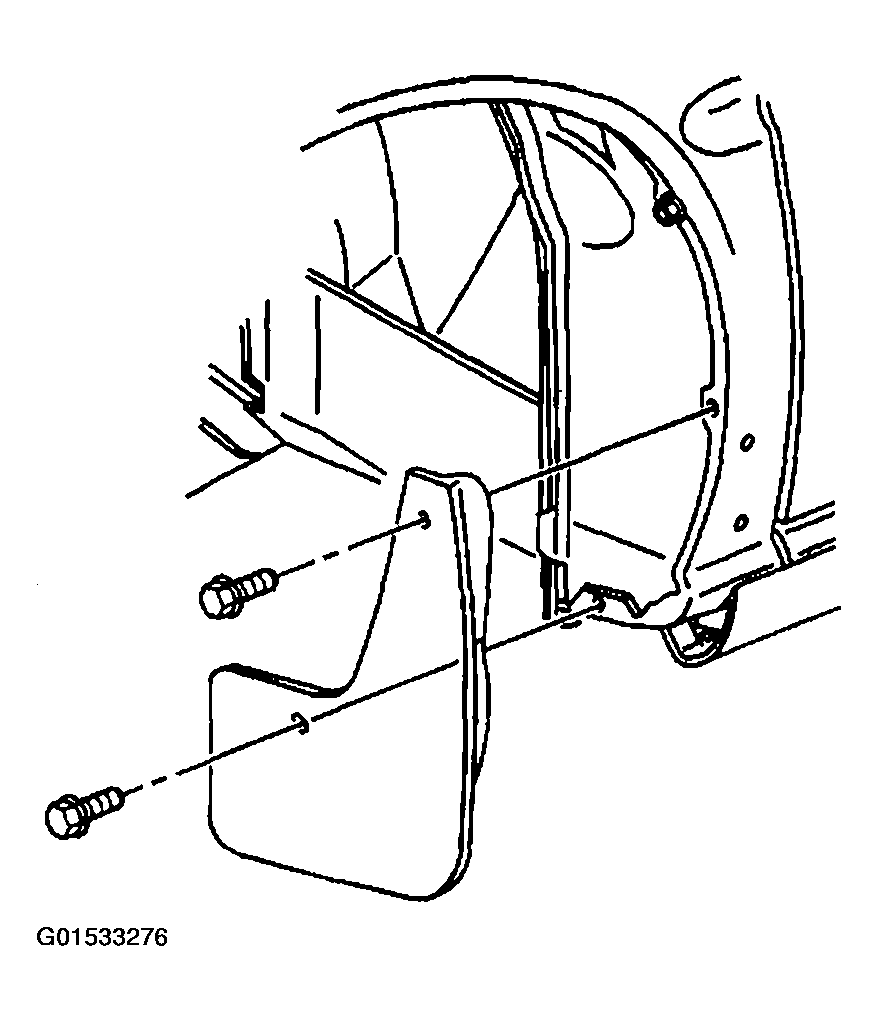

    Fig 1: Removing Bolts From Fender Splash Shield
    G01533276Courtesy of GENERAL MOTORS CORP.
  2. Use J 38778  in order to remove the push-in retainer from the lower fender splash at the rocker panel.
  3. Remove the fender splash shield from the fender.

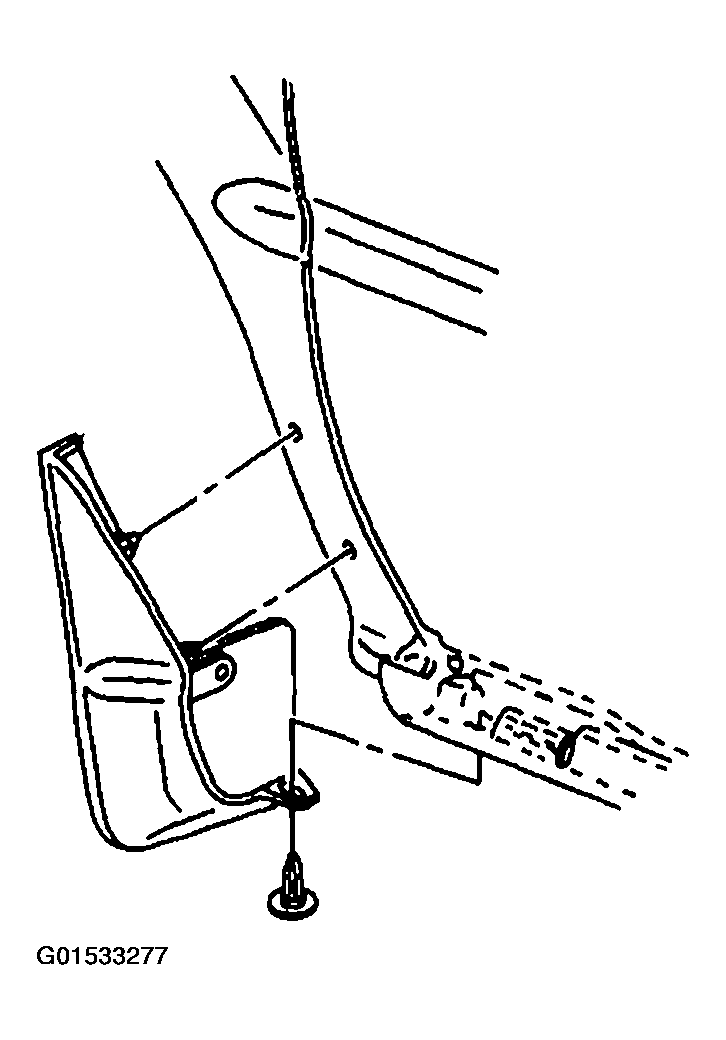

    Fig 2: Removing Fender Splash Shield From Fender
    G01533277Courtesy of GENERAL MOTORS CORP.
