Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the locating pins on the fender splash shield into the holes in the fender

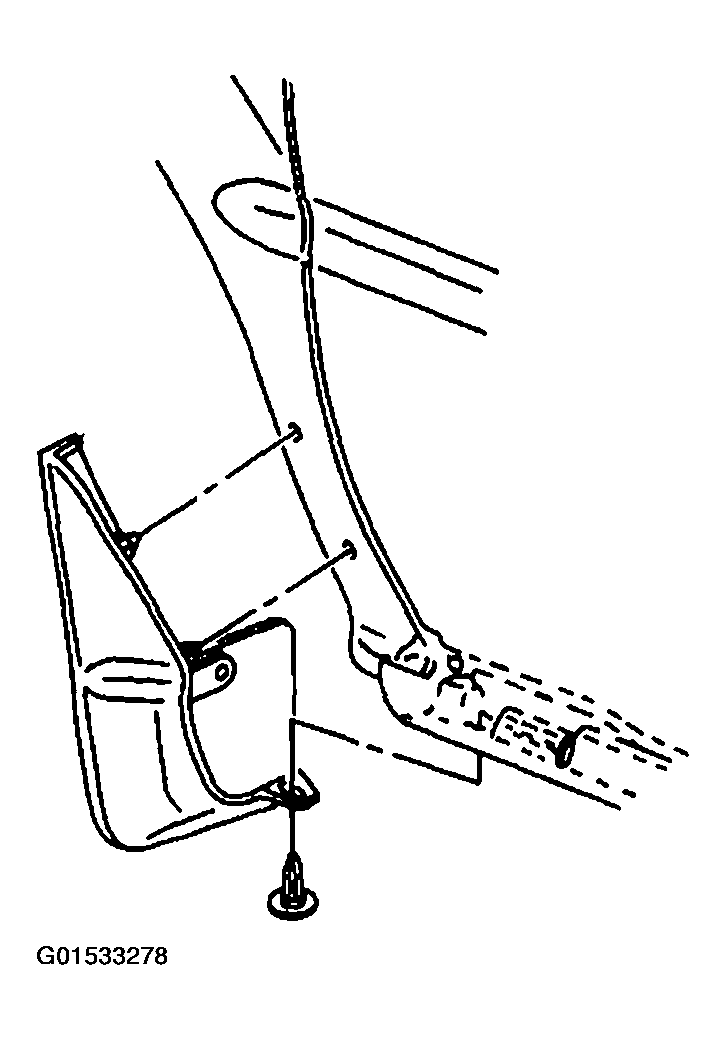

    Fig 1: Aligning Pins On Fender Splash Shield Into Holes In Fender
    G01533278Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Caution and Notices.
  2. Install the bolts to the fender splash shield.

    Tighten  Tighten the bolts to 2 N.m (18 lb in).

  3. Install the push-in retainer to the lower fender splash shield at the rocker panel.

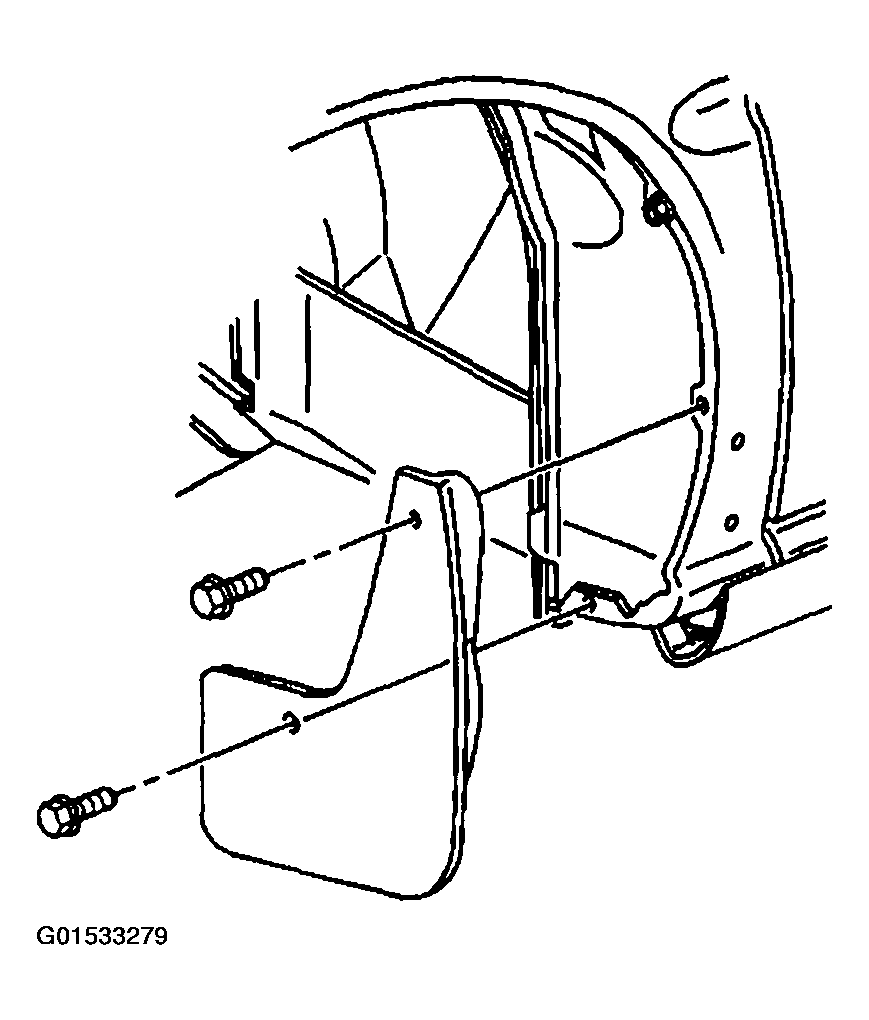

    Fig 2: Installing Bolts To Fender Splash Shield
    G01533279Courtesy of GENERAL MOTORS CORP.
