Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use J 38778  to remove the push-in retainers from the engine compartment side rail.
  2. Use J 38778  to remove the push-in retainers from the front fender liner at the engine splash shield.
  3. Remove the front wheel speed jumper harness from the left engine splash shield. Refer to WHEEL SPEED SENSOR REPLACEMENT - FRONT  in antilock Brake System.
    Fig 1: Removing Door Trim Pad And Garnish Clip
    G01533280Courtesy of GENERAL MOTORS CORP.
  4. Remove the front wheel speed jumper harness from the right engine splash shield. Refer to WHEEL SPEED SENSOR REPLACEMENT - FRONT  in Antilock Brake System.
  5. Disconnect the battery cable from the right engine splash shield. Refer to BATTERY NEGATIVE CABLE REPLACEMENT  in Battery.
  6. Remove the engine splash from the vehicle.

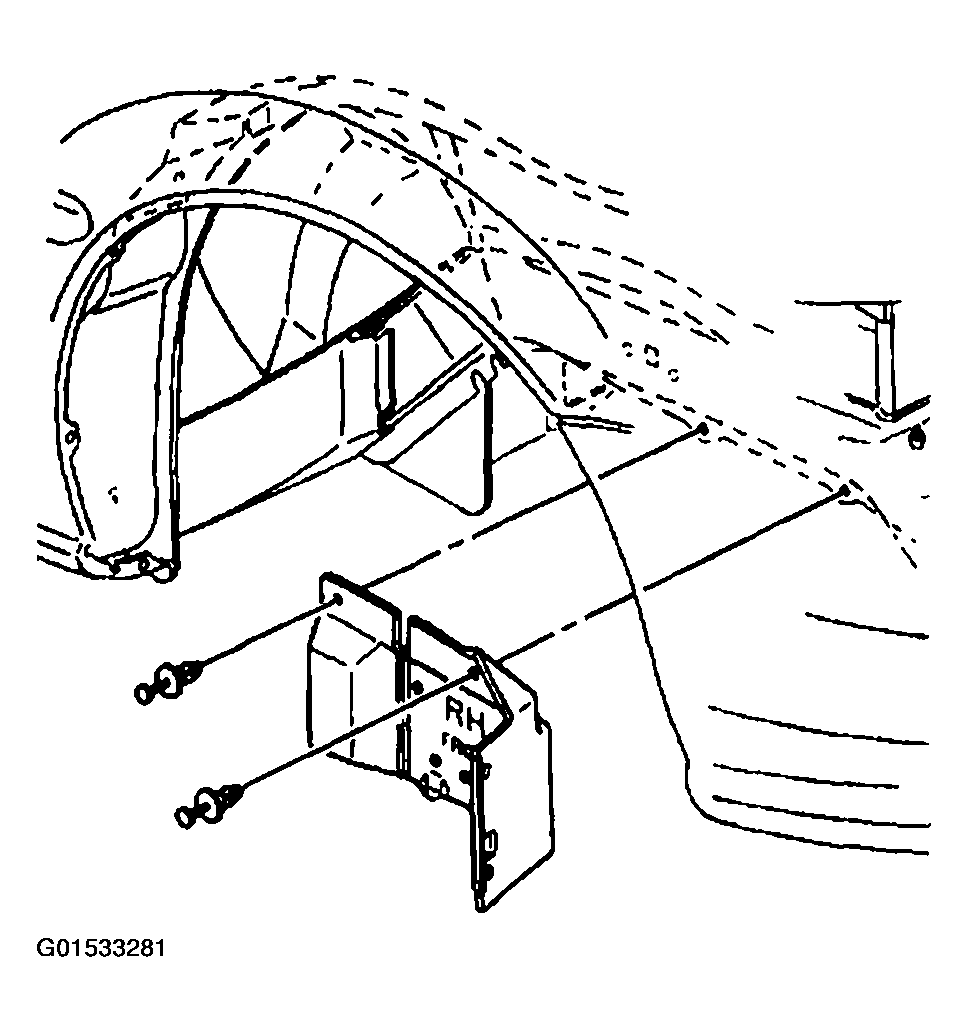

    Fig 2: Removing Engine Splash From Vehicle
    G01533281Courtesy of GENERAL MOTORS CORP.
