Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the support hood.
  2. Remove the hood rear weatherstrip from the pinchweld flange.

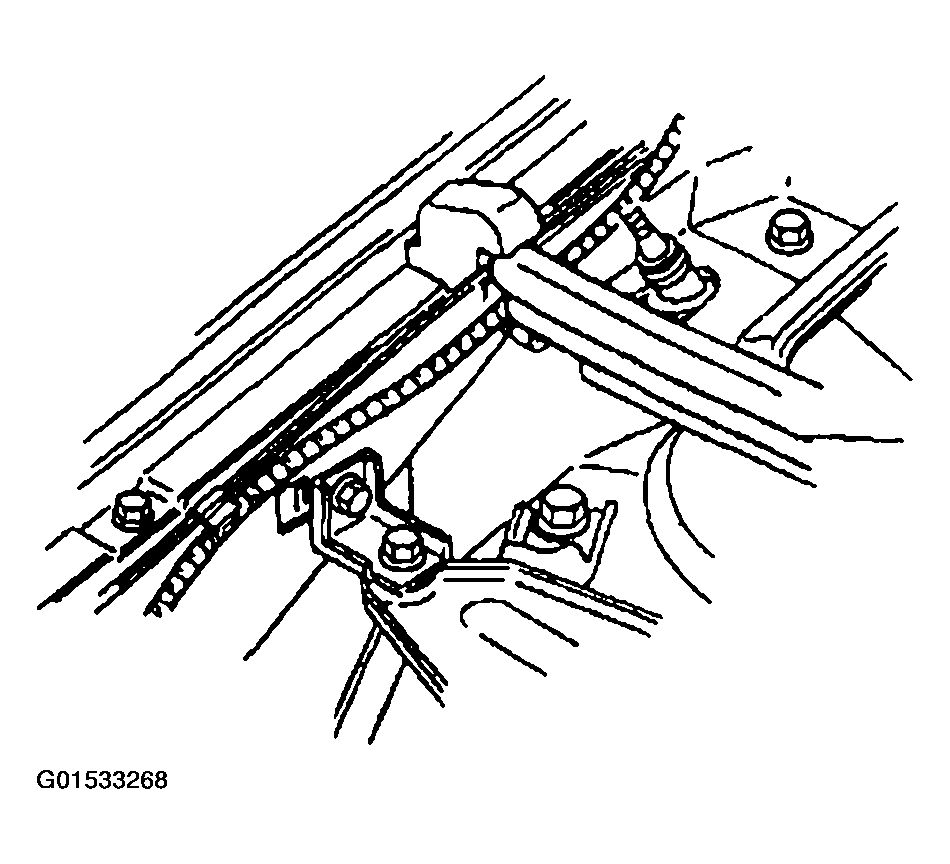

    Fig 1: Removing Hood Rear Weatherstrip From Pinchweld Flange
    G01533268Courtesy of GENERAL MOTORS CORP.
  3. Remove the hood rear outer seals from the fenders.
  4. Clean the old adhesive with 3TM P/N 8984 adhesive remover or equivalent in the area of the hood outer seals in order to ensure proper adhesive of adhesive.

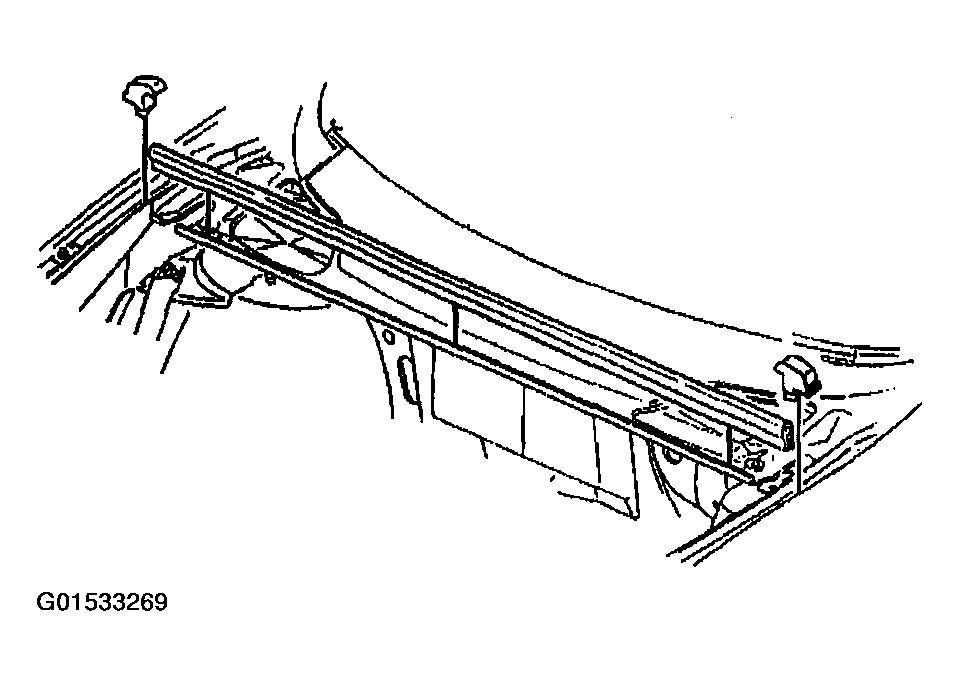

    Fig 2: Removing Hood Rear Outer Seals From Fenders
    G01533269Courtesy of GENERAL MOTORS CORP.
