Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply new adhesive GM P/N 12345096 if you are reusing the old hood rear weatherstrips.
  2. Install the hood rear weatherstrip to the flange.

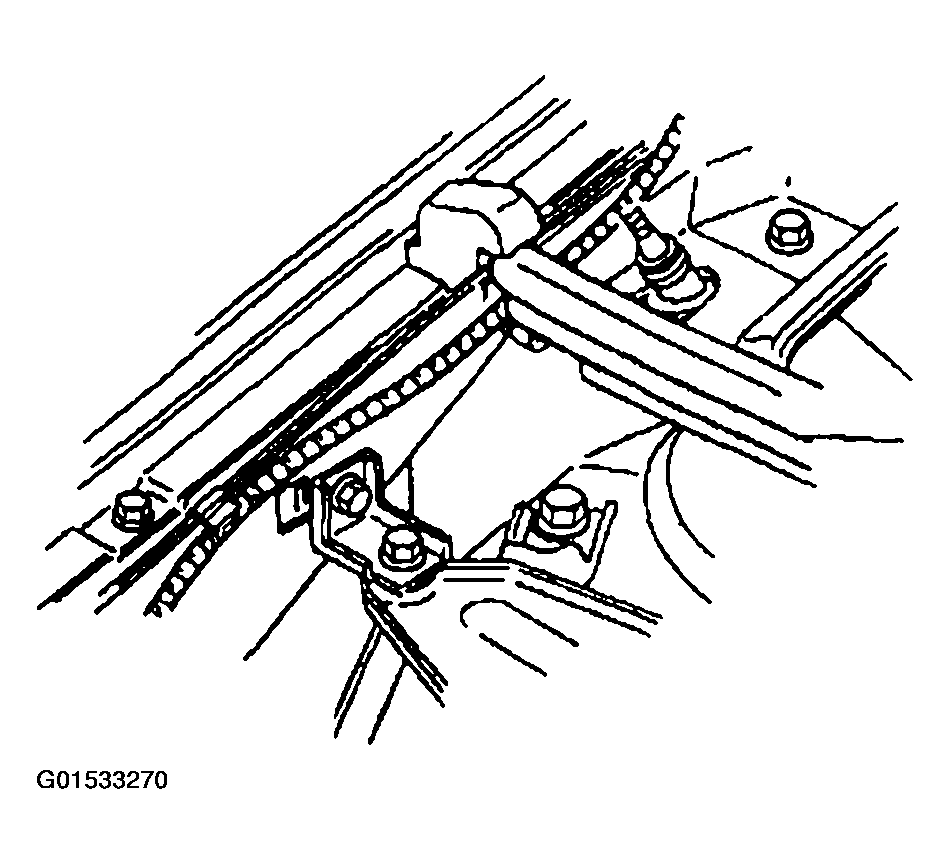

    Fig 1: Installing Hood Rear Weatherstrip To Flange
    G01533270Courtesy of GENERAL MOTORS CORP.
  3. Install the hood rear outer seals to the fenders.
  4. Press into place until fully seated to the fender.
  5. Close the hood

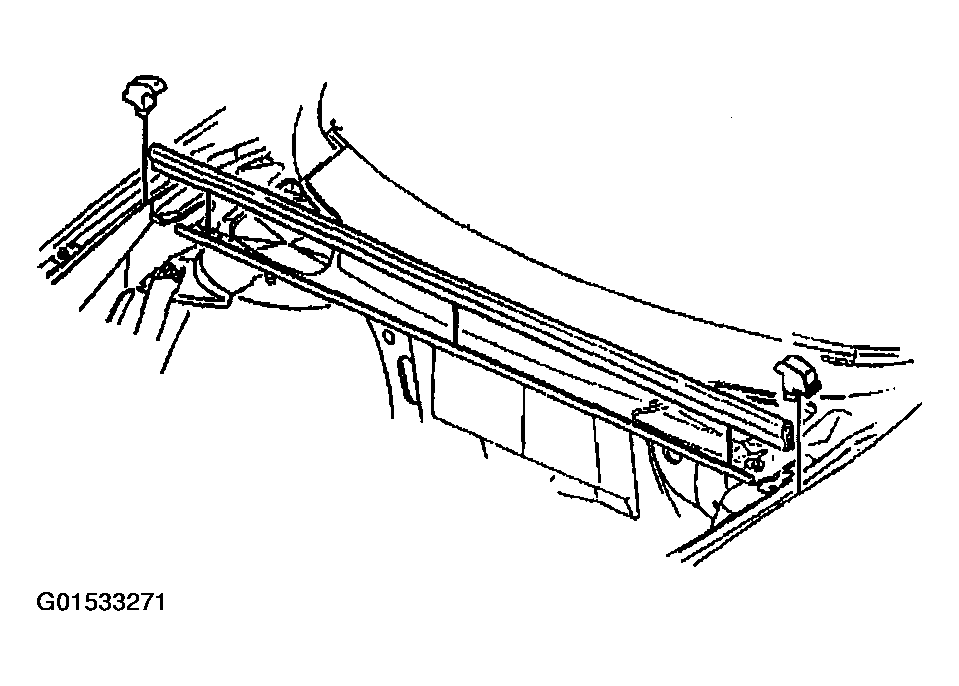

    Fig 2: Install Hood Rear Outer Seals To Fenders
    G01533271Courtesy of GENERAL MOTORS CORP.
