Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open and support hood.
  2. Use J 38778  in order to remove the push-in retainers from the hood front seal.
  3. Remove the hood front seal from the hood.

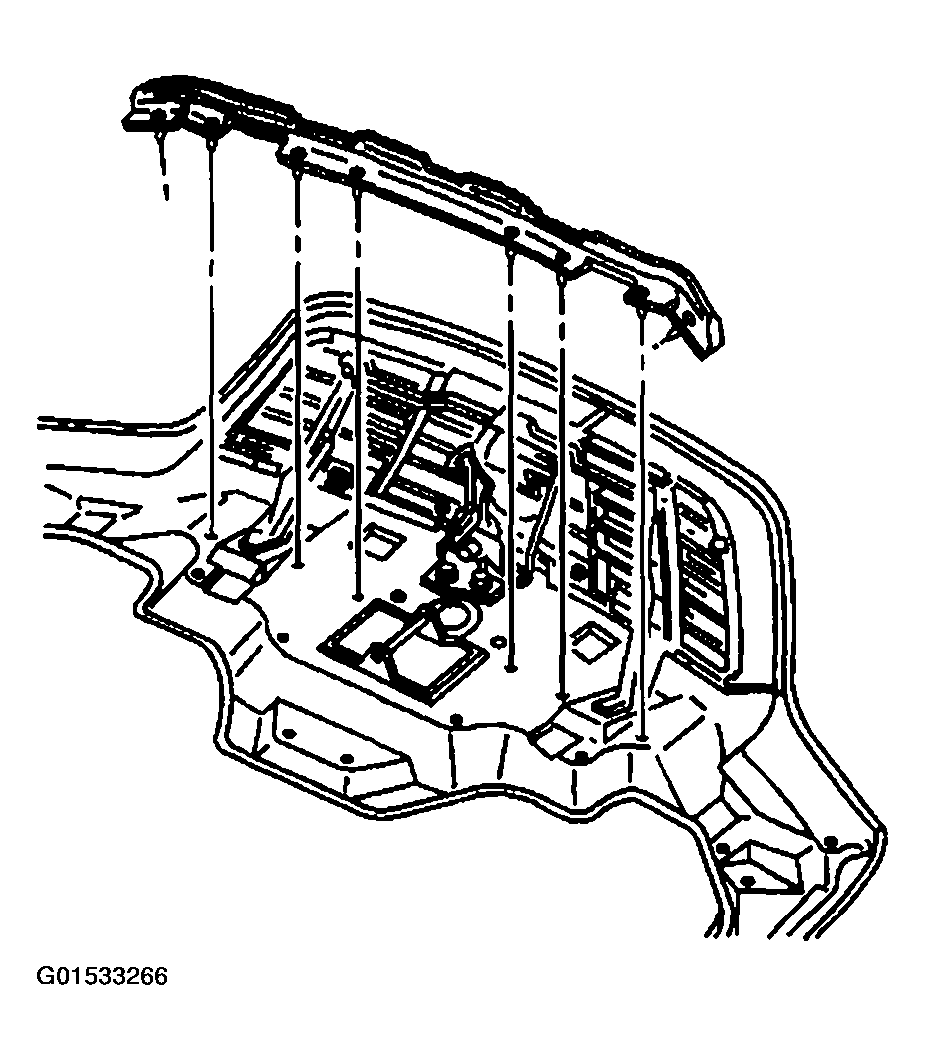

    Fig 1: Removing Hood Front Seal
    G01533266Courtesy of GENERAL MOTORS CORP.
