Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Install the grille prior to the hood front seal.

  1. Install the hood front seal to the hood.
  2. Install the push-in retainers to the hood front seal.
  3. Close the hood

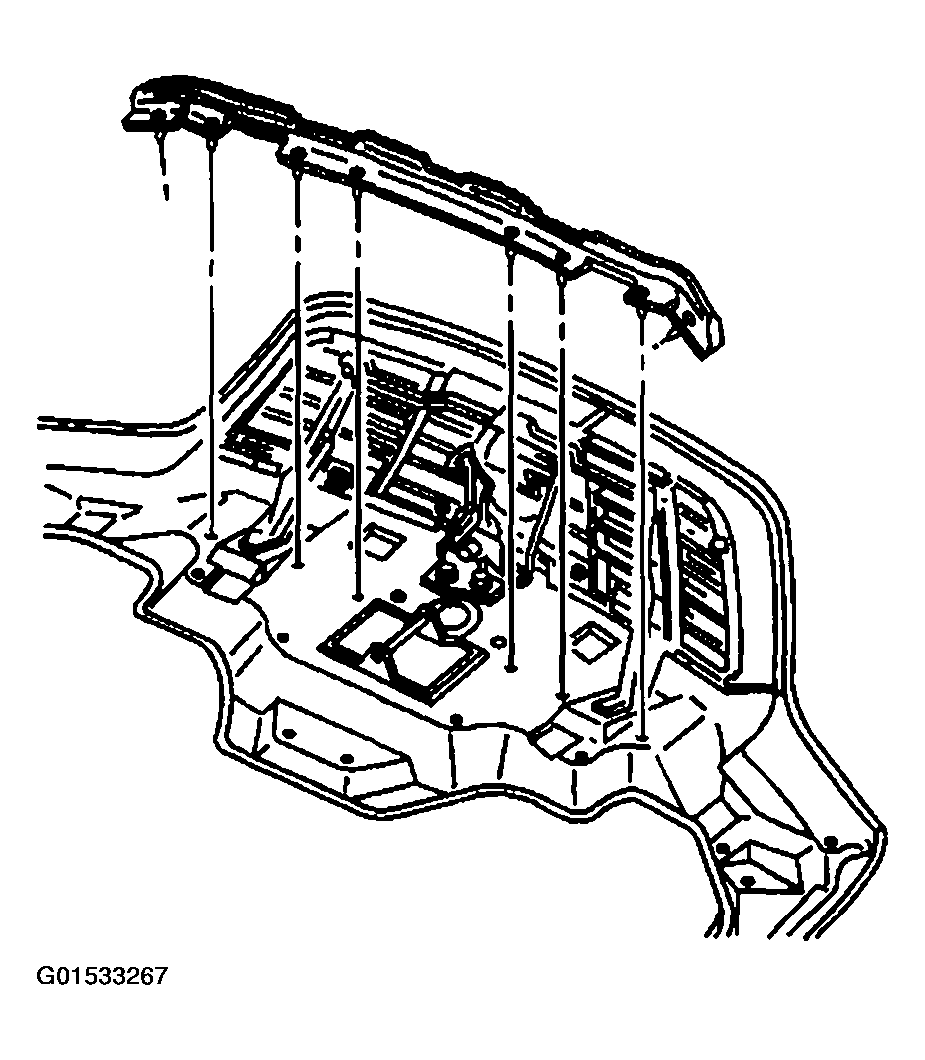

    Fig 1: Installing Hood Front Seal
    G01533267Courtesy of GENERAL MOTORS CORP.
