Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the hood insulator. Refer to HOOD INSULATOR REPLACEMENT   .
  3. Remove the hood scoop screws.
  4. Remove the hood scoop from the hood by lifting up at the rear of the hood scoop and sliding forward release the hood scoop from the hood scoop mounting bracket.
  5. If you are replacing the hood scoop mounting bracket.
    • Drill out the hood scoop mounting bracket rivets.
    • Remove the hood scoop mounting bracket from the hood.

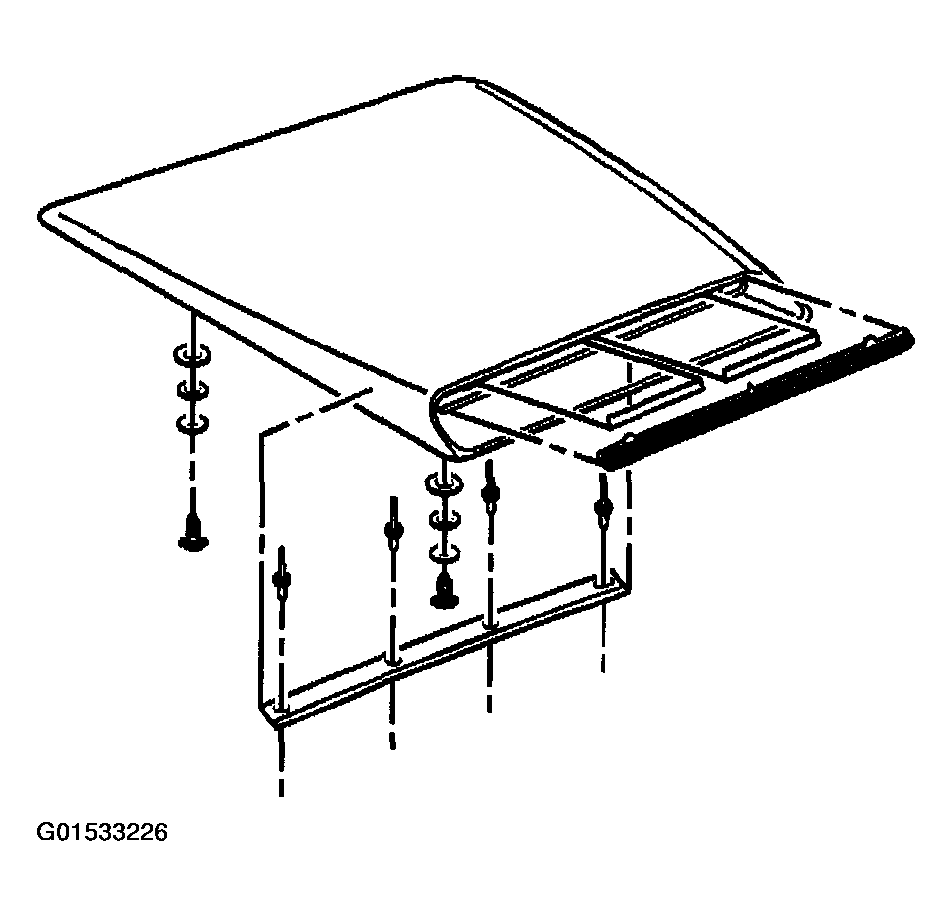

    Fig 1: Removing Hood Scoop Mounting Bracket
    G01533226Courtesy of GENERAL MOTORS CORP.
