Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When removing body panels, apply tape to corners of panel and adjacent surfaces to help prevent paint damage.
  1. Install the protective coverings over the fenders in order to prevent damage to the paint when removing or installing the hood.
  2. Open and support the hood.
  3. Mark the location of the hood hinge to the hood (1,2) for alignment when reinstalling the hood.

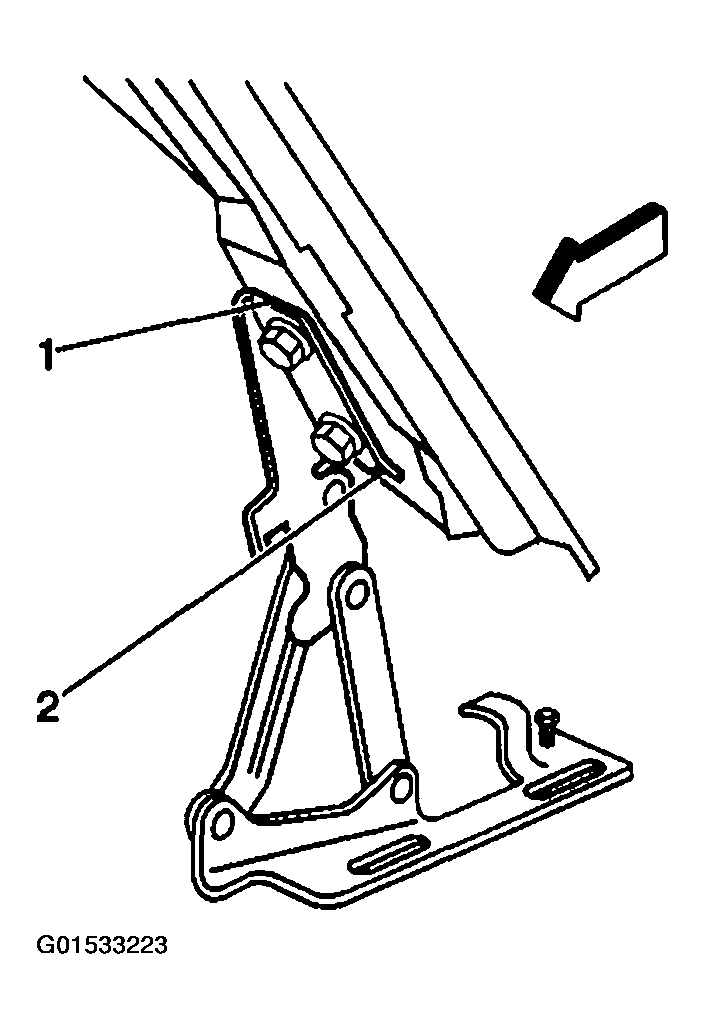

    Fig 1: Marking Of Hood Hinge To Hood
    G01533223Courtesy of GENERAL MOTORS CORP.
  4. Remove the hood bolts from each side of the hood at the hinge.
  5. Remove the hood from the hood hinges with an assistant.

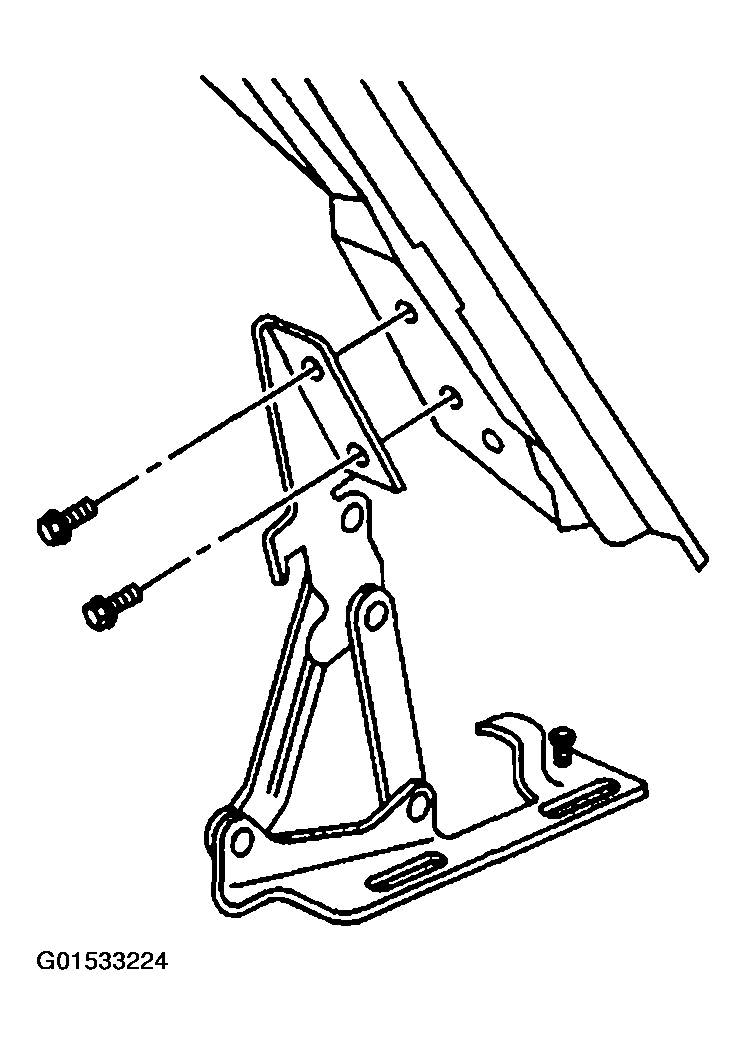

    Fig 2: Removing Hood From Hood Hinges With Assistant
    G01533224Courtesy of GENERAL MOTORS CORP.
