Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood to the hood hinges with an assistant.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the hood bolts to each side of the hood at the hinge.

    Tighten

    Tighten the bolts to 25 N.m (18 lb in).

  3. Remove the protective coverings from the adjacent body panels.
  4. Align the hood, if required. Refer to HOOD ADJUSTMENT   .

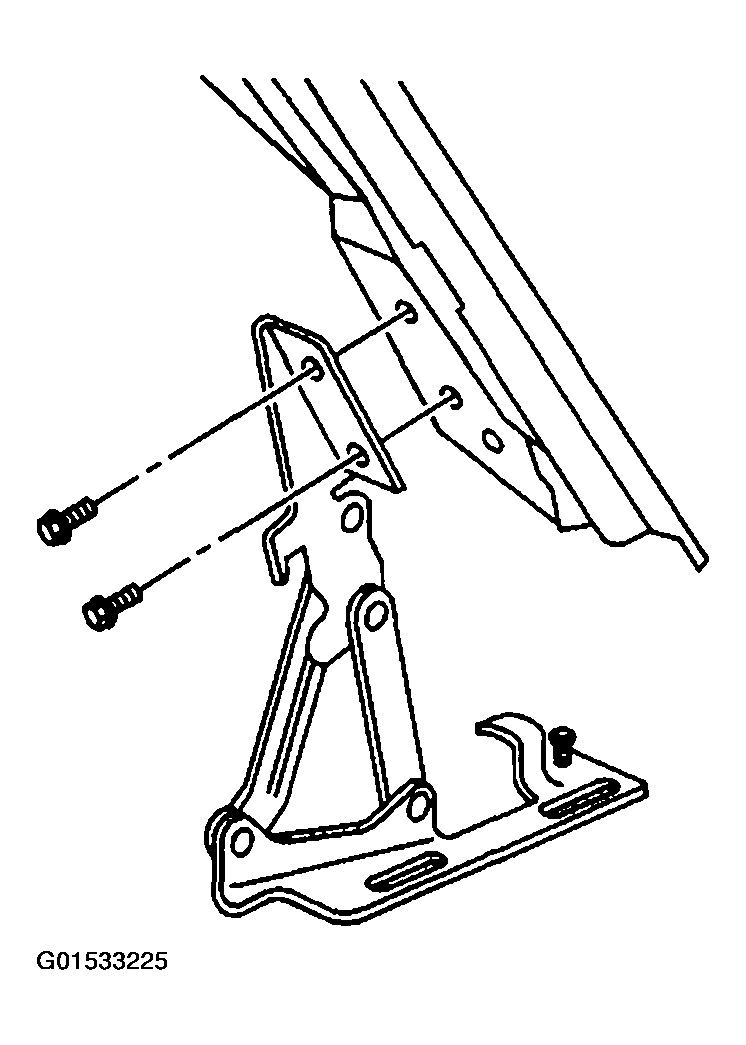

    Fig 1: Installing Hood To Hood Hinges With Assistant
    G01533225Courtesy of GENERAL MOTORS CORP.
