Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open and support the hood.
  2. Remove the primary hood latch. Refer toHOOD LATCH REPLACEMENT - PRIMARY   .
  3. Remove the bolts from the hood latch support at the upper tie bar.
  4. Remove the hood latch support from the upper tie bar.

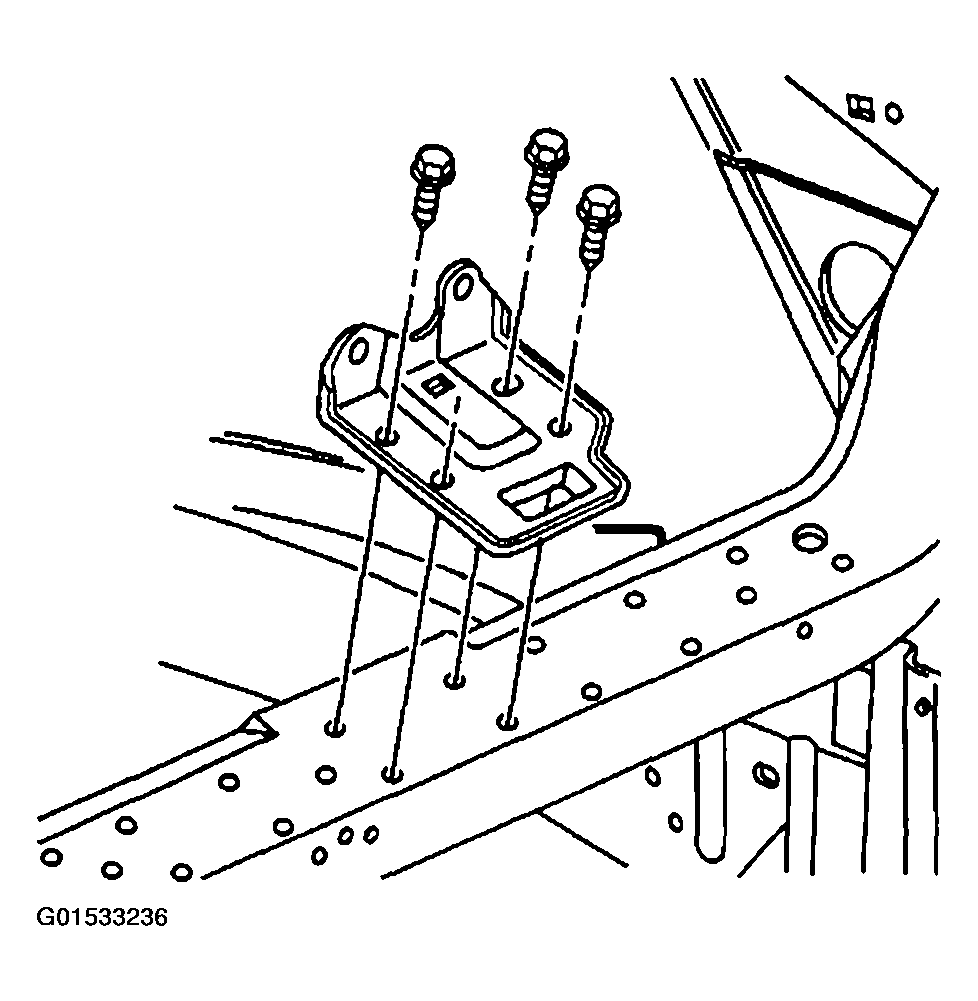

    Fig 1: Removing Hood Latch Support From Upper Tie Bar
    G01533236Courtesy of GENERAL MOTORS CORP.
