Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open and support the hood.
  2. Remove the secondary hood latch-to-hood bolts.

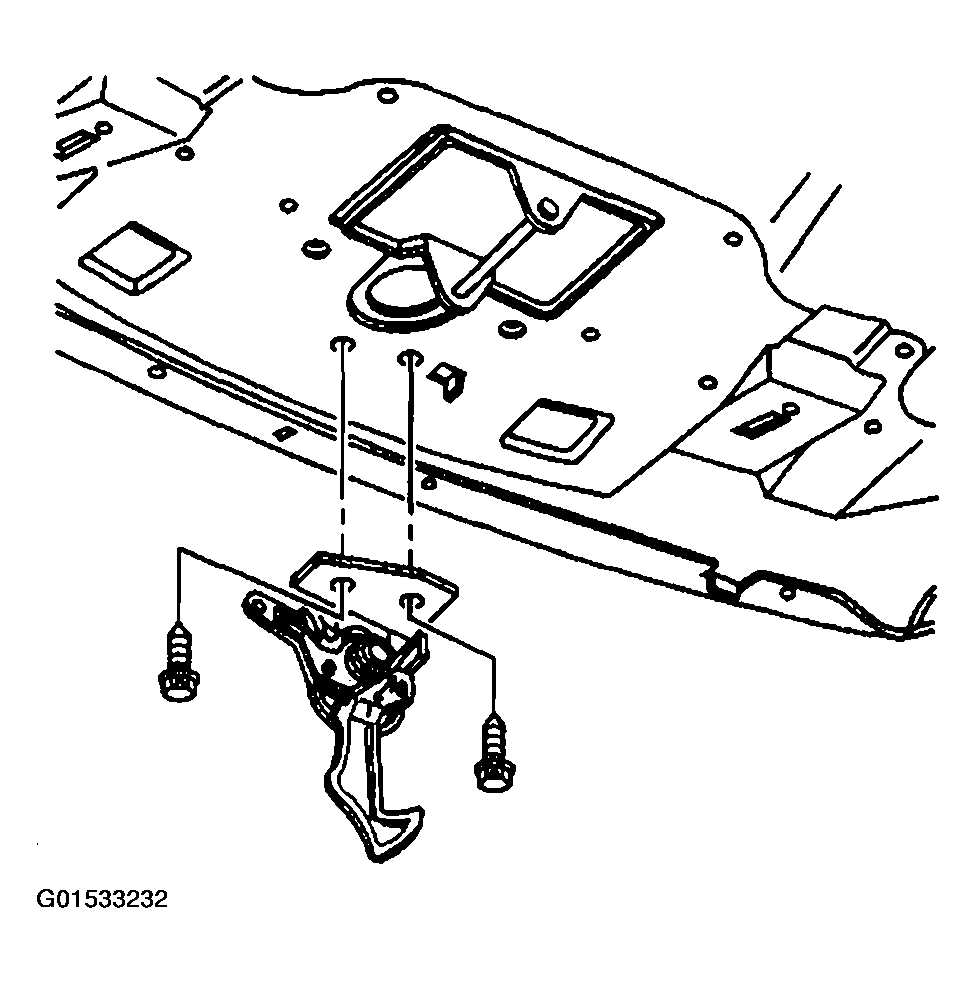

    Fig 1: Removing secondary Hood Latch-To-Hood Bolts
    G01533232Courtesy of GENERAL MOTORS CORP.
  3. Remove the secondary hood latch linkage from the latch.
  4. Remove the secondary hood latch from the hood.

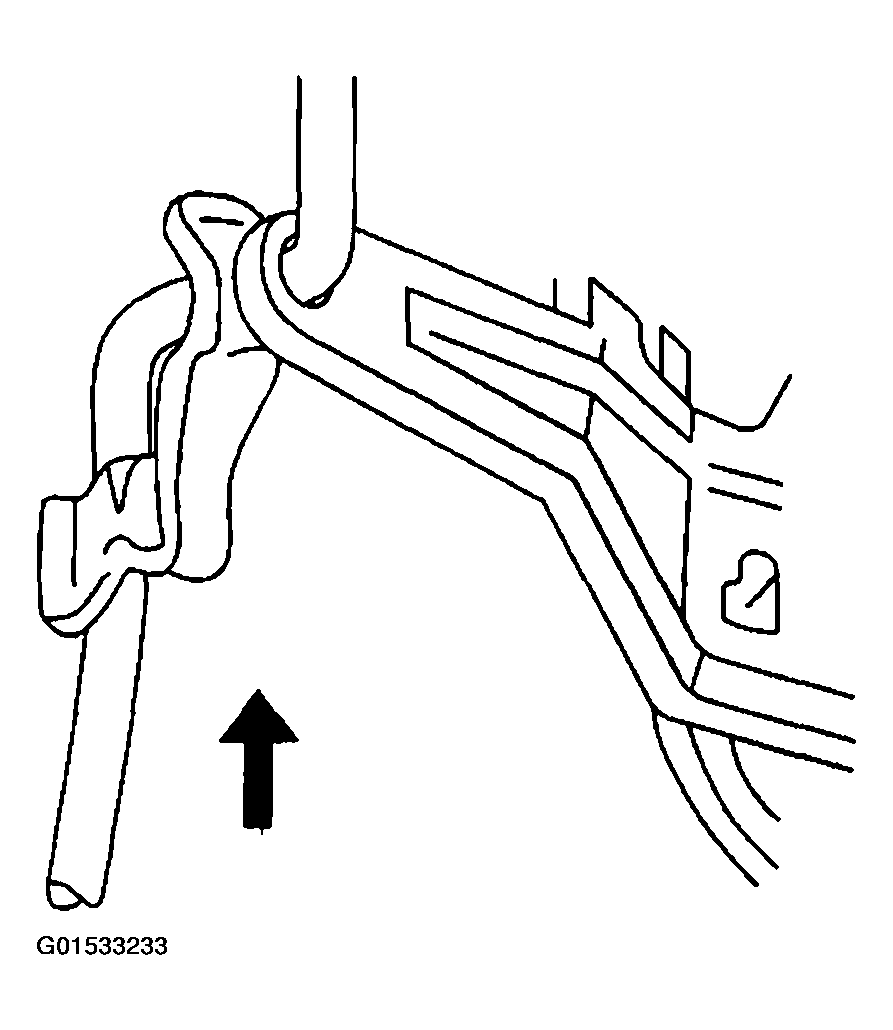

    Fig 2: Removing Secondary Hood Latch From Hood
    G01533233Courtesy of GENERAL MOTORS CORP.
