Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the secondary hood latch.
  2. Install the secondary hood latch linkage to the hood latch.

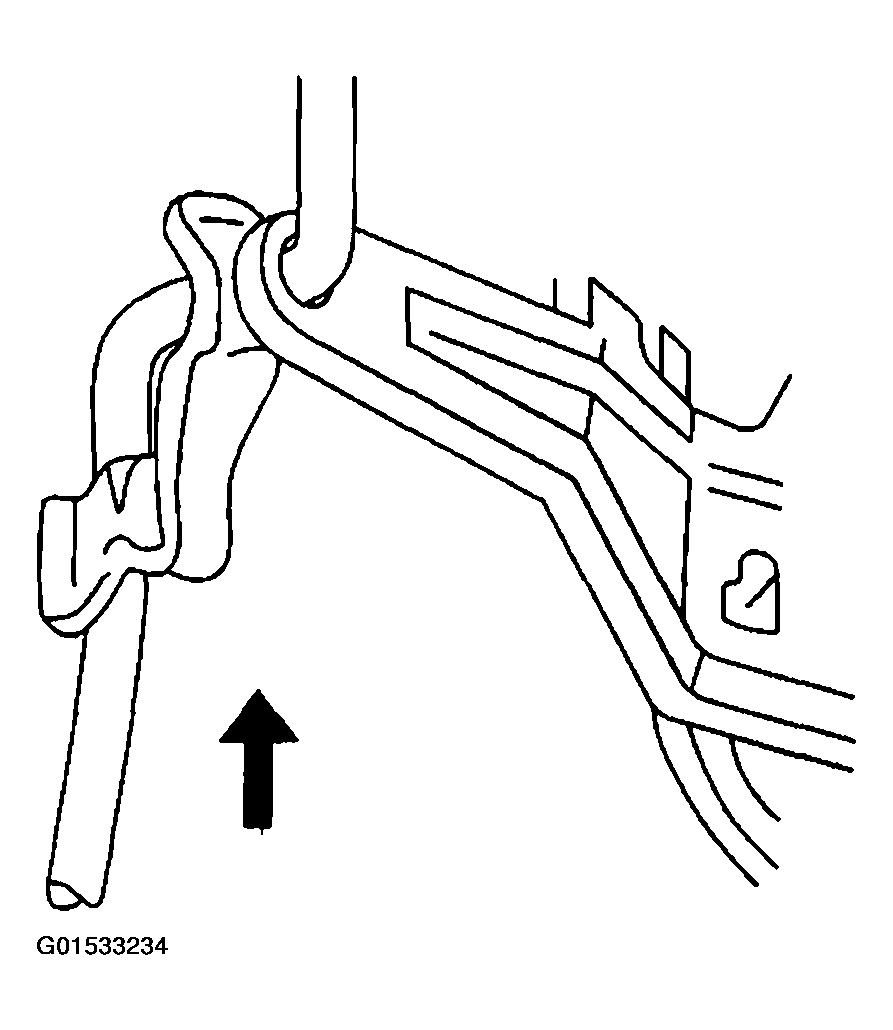

    Fig 1: Installing Secondary Hood Latch
    G01533234Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the secondary hood latch bolts.

    Tighten  Tighten the bolts to 25 N.m (18 lb ft).

  4. Close the hood.

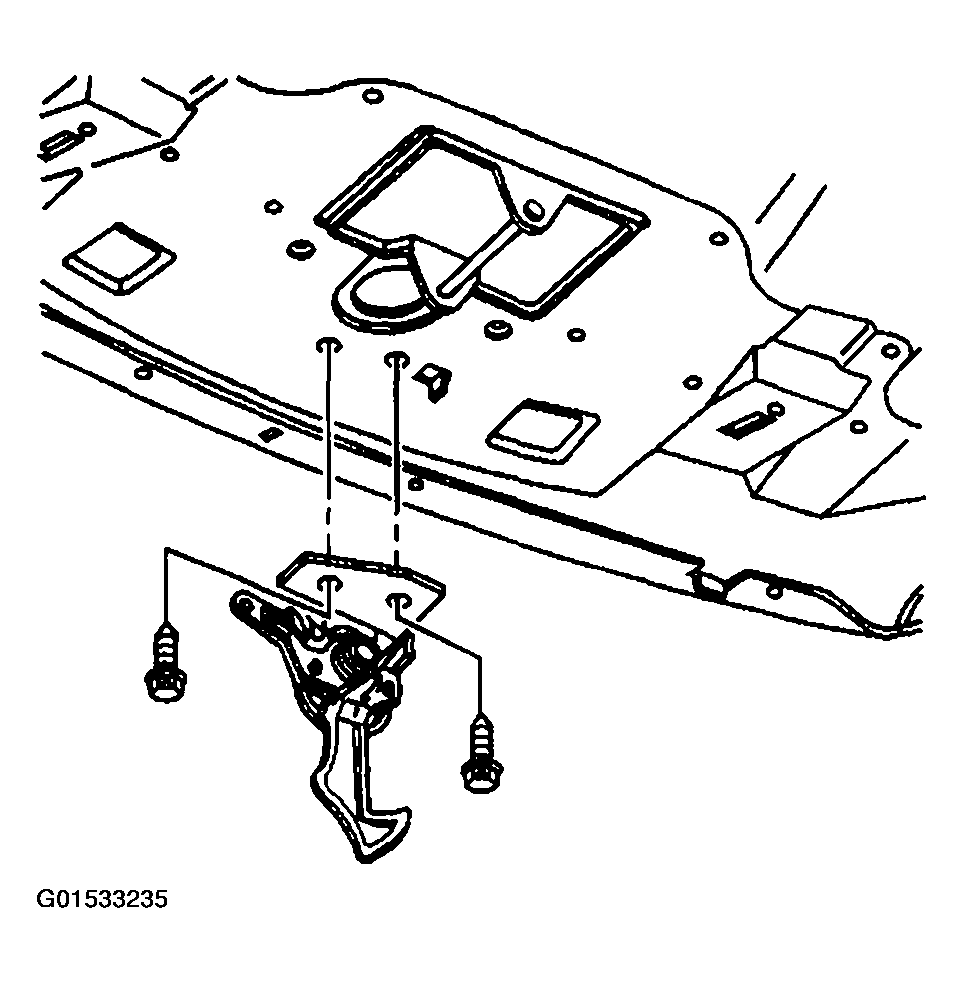

    Fig 2: Installing Secondary Hood Latch Bolts
    G01533235Courtesy of GENERAL MOTORS CORP.
