Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open and support the hood.
  2. Disconnect the hood release cable. Refer to HOOD INSULATOR REPLACEMENT   .
  3. Remove the bolts from the primary hood latch at the latch support bracket.
  4. Remove the primary hood latch from the support bracket.

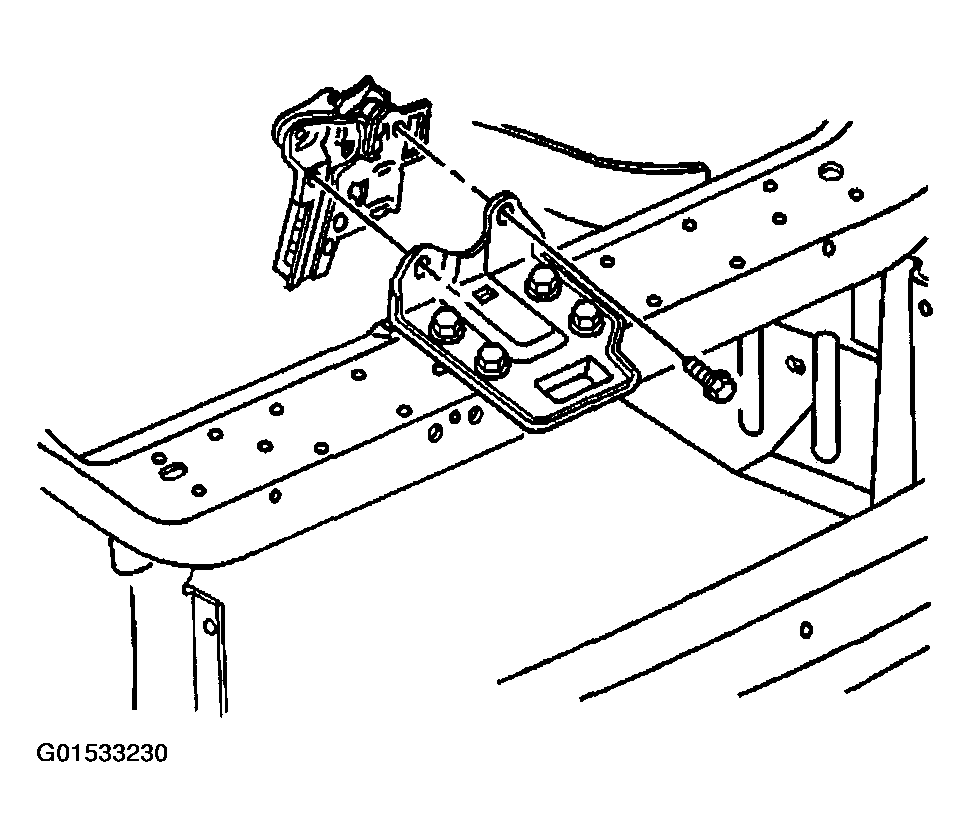

    Fig 1: Removing Primary Hood Latch From Support Bracket
    G01533230Courtesy of GENERAL MOTORS CORP.
