Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the primary hood latch support bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts to the primary hood latch at the latch support bracket.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

  3. Connect the hood release cable. Refer to HOOD INSULATOR REPLACEMENT   .
  4. Adjust the hood. Refer to HOOD ADJUSTMENT   .

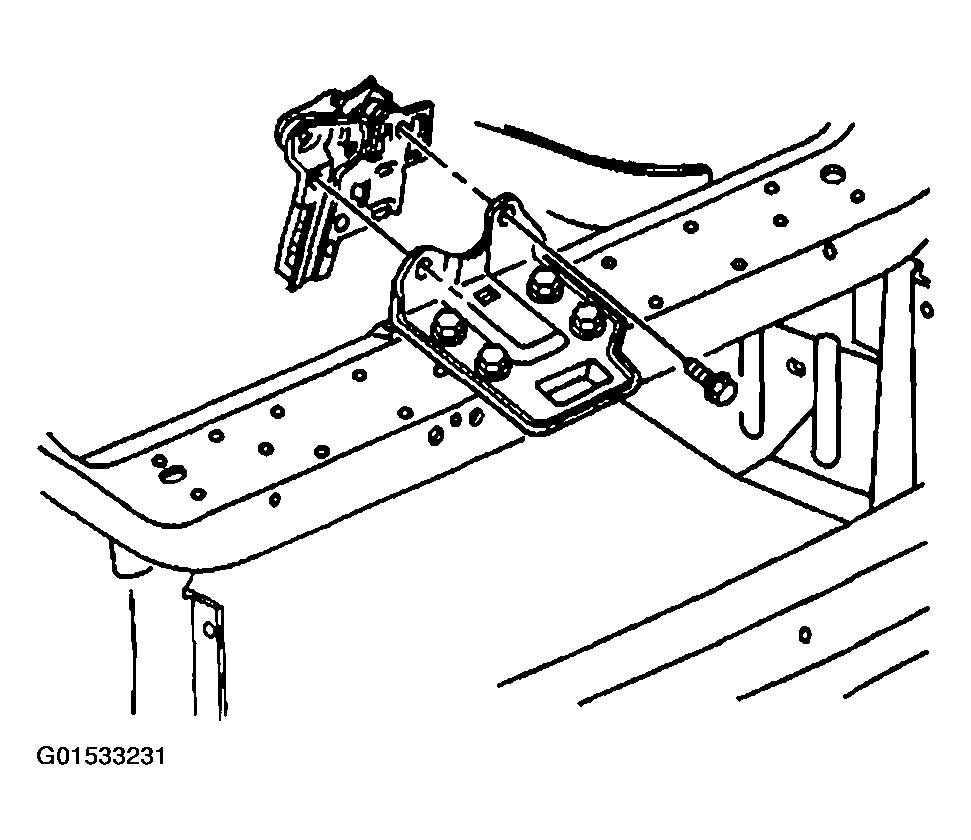

    Fig 1: Installing Primary Hood Latch Support Bracket
    G01533231Courtesy of GENERAL MOTORS CORP.
