Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the knee bolster. Refer to KNEE BOLSTER REPLACEMENT  in Instrument Panel, Console, and Gages.
  2. Remove the bolts/screws from the hood release handle.
  3. Remove the hood release handle from the instrument panel.

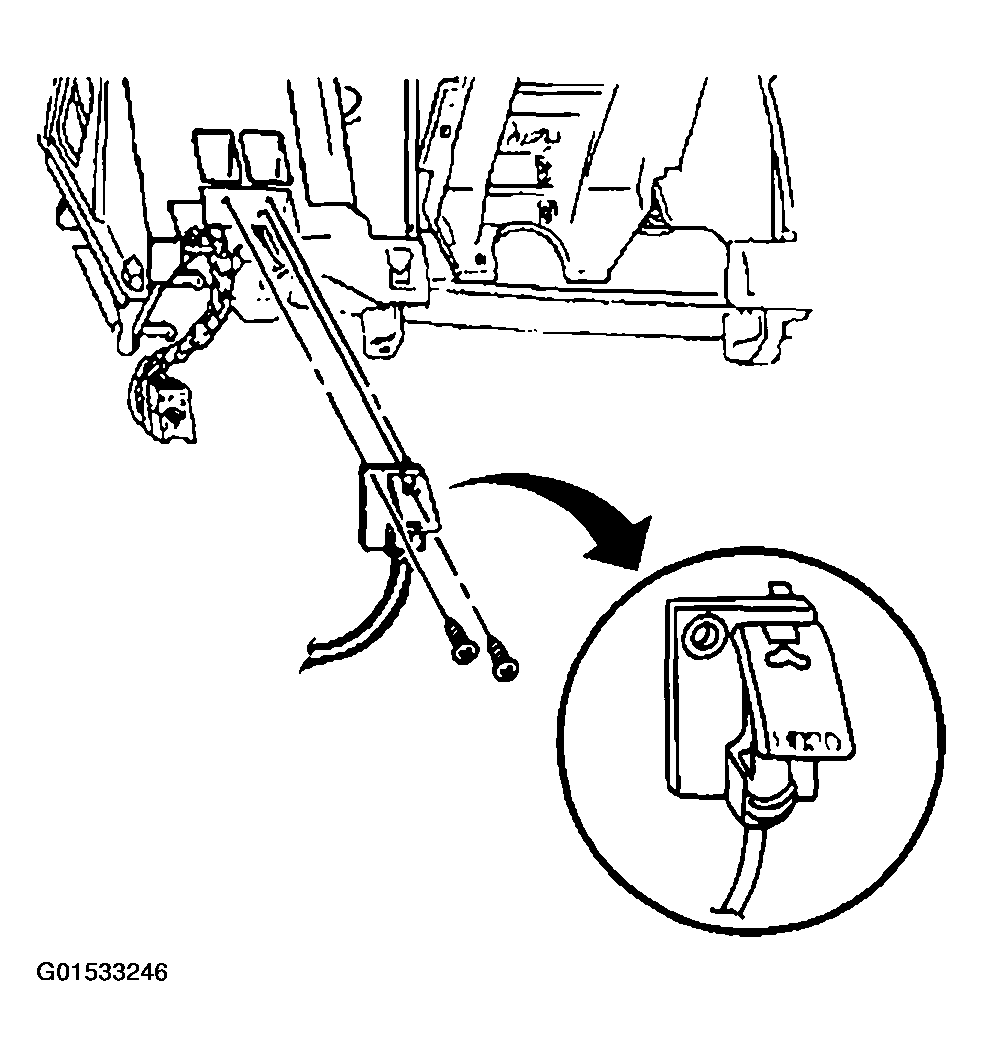

    Fig 1: Removing Hood Release Handle From Instrument Panel
    G01533246Courtesy of GENERAL MOTORS CORP.
  4. Use a small, flat-bladed tool in order to remove the hood release cable grommet from the brake pedal bracket plate.
  5. Remove the hood release cable from the brake pedal bracket plate.
  6. Remove the hood release cable and hood release handle from the vehicle.

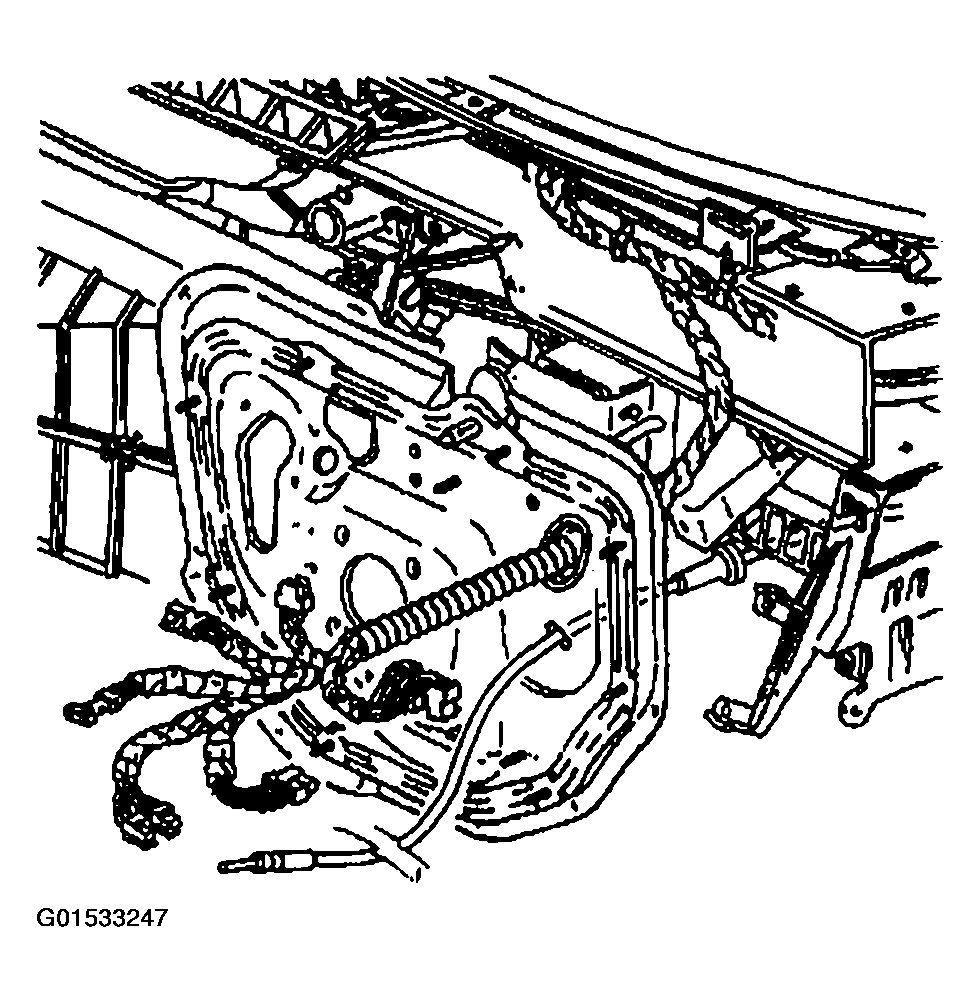

    Fig 2: Removing Hood Release Cable And Hood Release Handle From Vehicle
    G01533247Courtesy of GENERAL MOTORS CORP.
