Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood release cable and hood release handle to the vehicle.
  2. Route the hood release cable to the pedal bracket plate panel.
  3. Install the hood release cable to the hood latch.
  4. Press the hood release cable grommet into place in order to install the grommet to the brake pedal bracket plate.

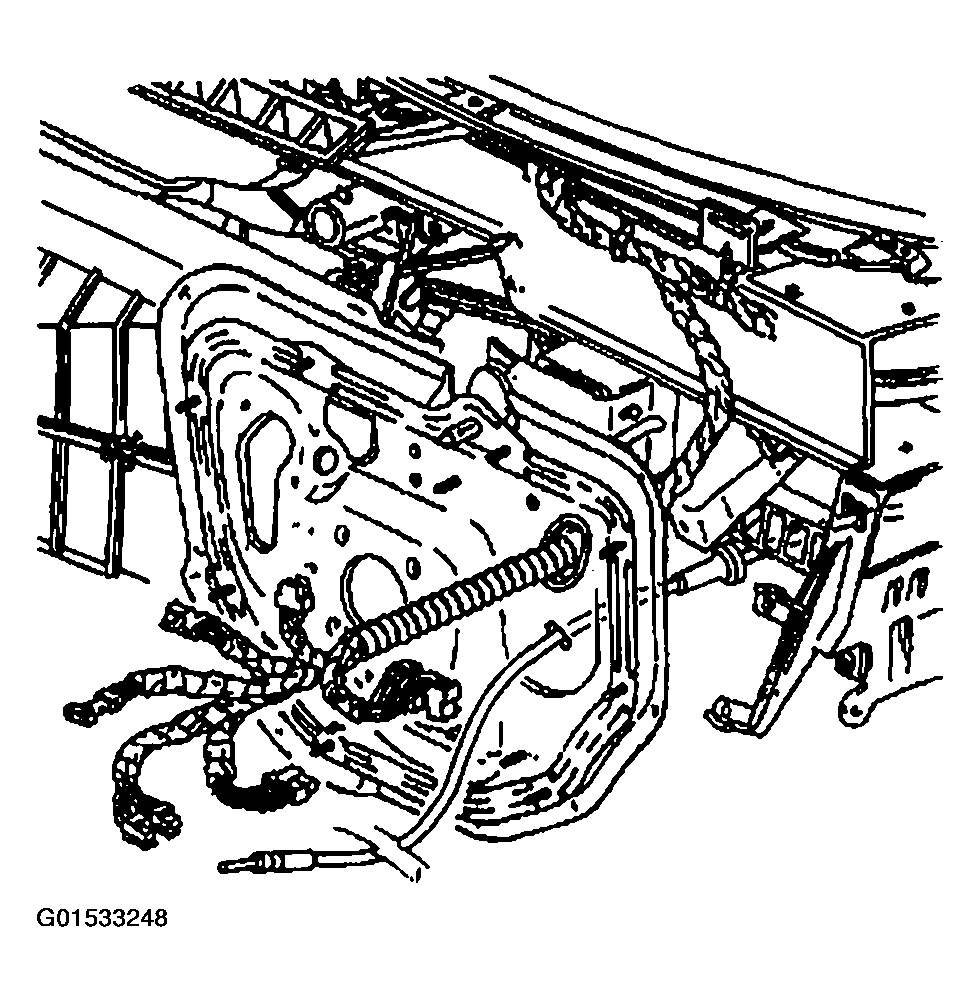

    Fig 1: Installing Hood Release Cable And Hood Release Handle To Vehicle
    G01533248Courtesy of GENERAL MOTORS CORP.
  5. Install the hood release handle to the instrument panel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  6. Install the bolts/screws to the hood release handle.

    Tighten

    Tighten the bolts/screws to 2 N.m (18 lb in).

  7. Install the knee bolster. Refer to KNEE BOLSTER REPLACEMENT  in Instrument Panel, Console, and Gages.

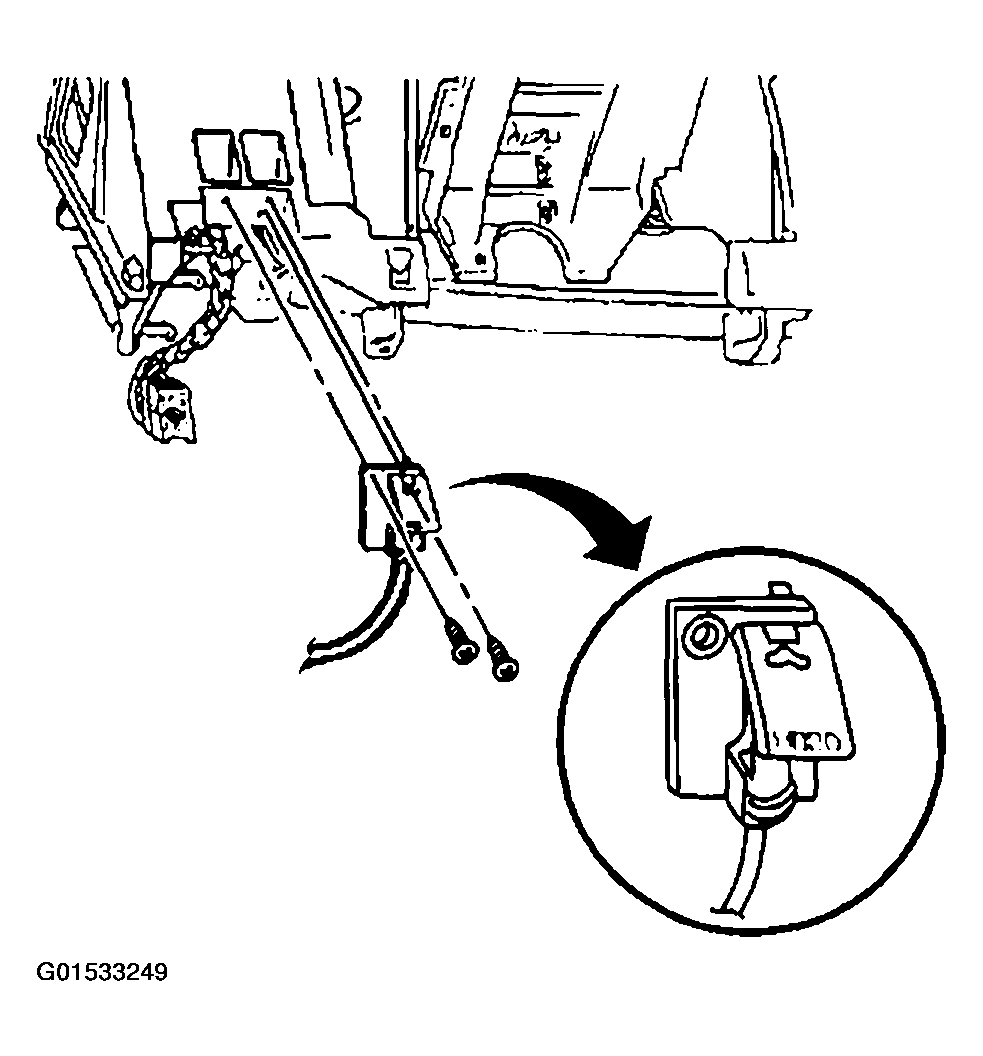

    Fig 2: Installing Hood Release Handle To Instrument Panel
    G01533249Courtesy of GENERAL MOTORS CORP.
